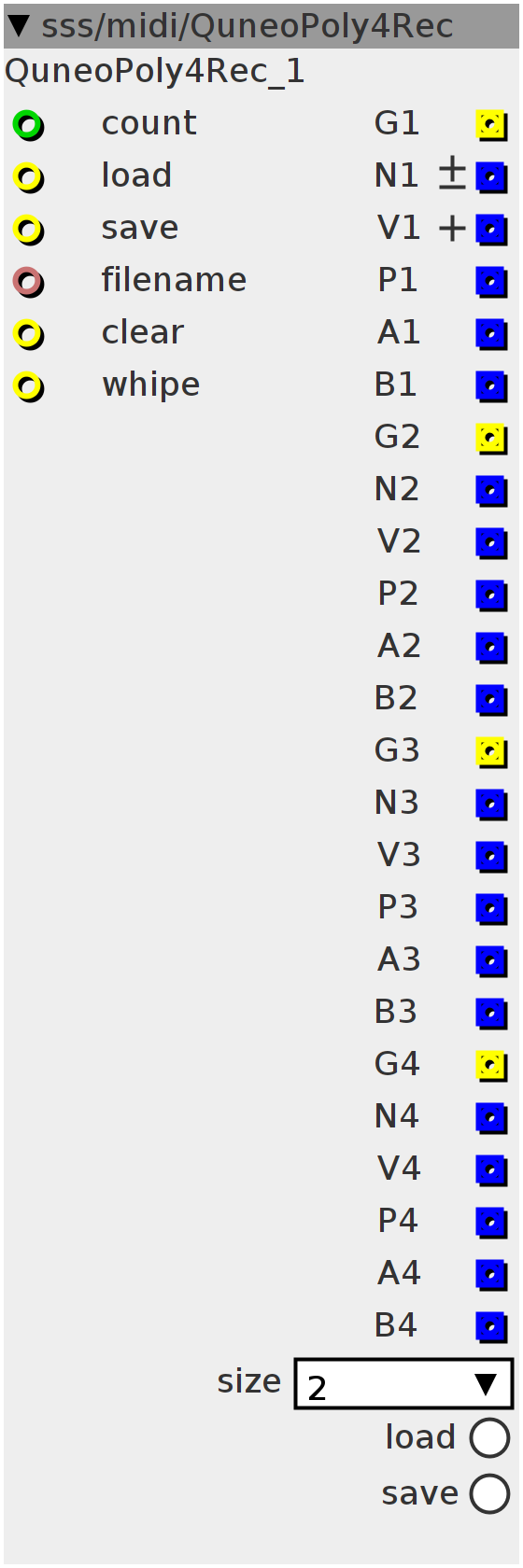

QuneoPoly4Rec

$\text{[math]}$

4 voice polyphonic MIDI keyboard RECORDER with note, gate, velocity, pressure, X and Y outputs to use with the QuNeo midicontroller. The module sorts out the 2 extra X/Y midicontrols that are send with each note and outputs these a 2 extra polyphonic controls next to the pressure output. This module can record 4 voices, each with their own X/Y control. The count input can be set to a fast rate, this way, combined with a large table-size, fast automations can be recorded Note though, the bigger the tables, the longer the load/save time! quneo layout of the 16 pad: lowest note=36, left bottom is first note, then to the right and up: 48,49,50,51 44,45,46,47 40,41,42,43 36,37,38,39 pressure starts at 23, each next in line has an increment of 3 (23,26,29, etc) pressure starts at 24, each next in line has an increment of 3 (24,27,30, etc) pressure starts at 25, each next in line has an increment of 3 (25,28,31, etc) eg for pressure: 59,62,65,68 47,50,53,56 35,38,41,44 23,26,29,32

Author: Remco van der Most

License: BSD

Github: sss/midi/QuneoPoly4Rec.axo

Inlets

charptr32 filename

int32 count

bool32 load

bool32 save

bool32 clear

bool32 whipe

Outlets

frac32 P1

frac32 A1

frac32 B1

frac32 N2

frac32 V2

frac32 P2

frac32 A2

frac32 B2

frac32 N3

frac32 V3

frac32 P3

frac32 A3

frac32 B3

frac32 N4

frac32 V4

frac32 P4

frac32 A4

frac32 B4

bool32 key pressed, no retrigger legato

bool32 G2

bool32 G3

bool32 G4

frac32.bipolar midi note number (-64..63)

frac32.positive note-on velocity

Parameters

bool32.mom load

bool32.mom save

Attributes

combo size

Declaration

static const uint32_t LENGTHPOW = (attr_size);
static const uint32_t LENGTH = (1 << attr_size);
static const uint32_t LENGTHMASK = ((1 << attr_size) - 1);

uint8_t *array;
uint32_t L2 = LENGTH * 6;
uint32_t L3 = LENGTH * 12;
uint32_t L4 = LENGTH * 18;
int i;

uint8_t N[4];
uint8_t G[4];
bool g[4];
bool H[4];
uint8_t V[4];
uint8_t P[4];
uint8_t A[4];
uint8_t B[4];
uint8_t T[4];
bool ltrig;
bool strig;
bool clear;
bool whipe;
int32_t pv;

Init

static uint8_t _array[LENGTH * 24] __attribute__((section(".sdram")));
array = &_array[0];
{
  int i;
  for (i = 0; i < LENGTH * 24; i++)
    array[i] = 0;
}

Control Rate

bool load = inlet_load || param_load;
bool save = inlet_save || param_save;

if ((save > 0) && !strig) {
  strig = 1;
  FIL FileObject;
  FRESULT err;
  UINT bytes_written;
  err = f_open(&FileObject, inlet_filename, FA_WRITE | FA_CREATE_ALWAYS);
  if (err != FR_OK) {
    report_fatfs_error(err, "inlet_filename");
    return;
  }
  int rem_sz = sizeof(*array) * (LENGTH * 24);
  int offset = 0;
  while (rem_sz > 0) {
    if (rem_sz > sizeof(fbuff)) {
      memcpy((char *)fbuff, (char *)(&array[0]) + offset, sizeof(fbuff));
      err = f_write(&FileObject, fbuff, sizeof(fbuff), &bytes_written);
      rem_sz -= sizeof(fbuff);
      offset += sizeof(fbuff);
    } else {
      memcpy((char *)fbuff, (char *)(&array[0]) + offset, rem_sz);
      err = f_write(&FileObject, fbuff, rem_sz, &bytes_written);
      rem_sz = 0;
    }
  }
  if (err != FR_OK)
    report_fatfs_error(err, "inlet_filename");
  err = f_close(&FileObject);
  if (err != FR_OK)
    report_fatfs_error(err, "inlet_filename");
} else if (!(save > 0))
  strig = 0;

if ((load > 0) && !ltrig) {
  ltrig = 1;
  FIL FileObject;
  FRESULT err;
  UINT bytes_read;
  err = f_open(&FileObject, inlet_filename, FA_READ | FA_OPEN_EXISTING);
  if (err != FR_OK) {
    report_fatfs_error(err, inlet_filename);
    return;
  }
  int rem_sz = sizeof(*array) * (LENGTH * 24);
  int offset = 0;
  while (rem_sz > 0) {
    if (rem_sz > sizeof(fbuff)) {
      err = f_read(&FileObject, fbuff, sizeof(fbuff), &bytes_read);
      if (bytes_read == 0)
        break;
      memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
      rem_sz -= bytes_read;
      offset += bytes_read;
    } else {
      err = f_read(&FileObject, fbuff, rem_sz, &bytes_read);
      memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
      rem_sz = 0;
    }
  }
  if (err != FR_OK) {
    report_fatfs_error(err, inlet_filename);
    return;
  };
  err = f_close(&FileObject);
  if (err != FR_OK) {
    report_fatfs_error(err, inlet_filename);
    return;
  };
} else if (!(load > 0))
  ltrig = 0;

uint32_t count = (inlet_count & LENGTHMASK) * 6;

if ((inlet_whipe > 0) && (!(pv == count))) {
  for (i = 0; i < 6; i++) {
    int k;
    for (k = 0; k < 4; k++) {
      array[count + i + (k << attr_size) * 6] = 0;
    }
  }
}

if ((inlet_clear > 0) && !clear) {
  clear = 1;
  for (i = 0; i < LENGTH * 24; i++) {
    array[i] = 0;
  }
} else if (inlet_clear == 0) {
  clear = 0;
}

for (i = 0; i < 4; i++) {
  uint32_t k = count + (i << attr_size) * 6;
  if (g[i] > 0) {
    array[k] = H[i];
    array[1 + k] = N[i];
    array[2 + k] = V[i];
    array[3 + k] = P[i];
    array[4 + k] = A[i];
    array[5 + k] = B[i];
  }

  if (array[k] > 0) {
    G[i] = array[k];
    N[i] = array[1 + k];
    V[i] = array[2 + k];
    P[i] = array[3 + k];
    A[i] = array[4 + k];
    B[i] = array[5 + k];
  } else {
    G[i] = 0;
  }

  g[i] = H[i];
}

outlet_G1 = G[0];
outlet_N1 = N[0] - 64 << 21;
outlet_V1 = V[0] << 20;
outlet_P1 = P[0] << 20;
outlet_A1 = A[0] << 20;
outlet_B1 = B[0] << 20;

outlet_G2 = G[1];
outlet_N2 = N[1] - 64 << 21;
outlet_V2 = V[1] << 20;
outlet_P2 = P[1] << 20;
outlet_A2 = A[1] << 20;
outlet_B2 = B[1] << 20;

outlet_G3 = G[2];
outlet_N3 = N[2] - 64 << 21;
outlet_V3 = V[2] << 20;
outlet_P3 = P[2] << 20;
outlet_A3 = A[2] << 20;
outlet_B3 = B[2] << 20;

outlet_G4 = G[3];
outlet_N4 = N[3] - 64 << 21;
outlet_V4 = V[3] << 20;
outlet_P4 = P[3] << 20;
outlet_A4 = A[3] << 20;
outlet_B4 = B[3] << 20;

/*
outlet_G1= array[count];
outlet_N1= array[count+1]-64<<21;
outlet_V1= array[count+2]<<20;
outlet_P1= array[count+3]<<20;
outlet_A1= array[count+4]<<20;
outlet_B1= array[count+5]<<20;

outlet_G2= array[count+L2];
outlet_N2= array[count+1+L2]-64<<21;
outlet_V2= array[count+2+L2]<<20;
outlet_P2= array[count+3+L2]<<20;
outlet_A2= array[count+4+L2]<<20;
outlet_B2= array[count+5+L2]<<20;

outlet_G3= array[count+L3];
outlet_N3= array[count+1+L3]-64<<21;
outlet_V3= array[count+2+L3]<<20;
outlet_P3= array[count+3+L3]<<20;
outlet_A3= array[count+4+L3]<<20;
outlet_B3= array[count+5+L3]<<20;

outlet_G4= array[count+L4];
outlet_N4= array[count+1+L4]-64<<21;
outlet_V4= array[count+2+L4]<<20;
outlet_P4= array[count+3+L4]<<20;
outlet_A4= array[count+4+L4]<<20;
outlet_B4= array[count+5+L4]<<20;
*/
pv = count;

Midi Handler

if ((status == MIDI_NOTE_ON + attr_midichannel) && (data2)) {
  int S = 1;
  i = -1;
  while ((S == 1) && (i < 4)) {
    i += S > 0 ? 1 : 0;
    S = G[i];
    if ((S == 1) && (i == 3)) {
      S = 0;
      i = ((int32_t)GenerateRandomNumber() >> 5) & 3;
    }
  }

  V[i] = data2;
  N[i] = data1;
  G[i] = 1;
  H[i] = 1;
  T[i] = (data1 - 36);
  T[i] = (T[i] - T[i] / 16 * 16) * 3;
  g[i] = 0;
} else if (((status == MIDI_NOTE_ON + attr_midichannel) && (!data2)) ||
           (status == MIDI_NOTE_OFF + attr_midichannel)) {
  for (i = 0; i < 4; i++) {
    if (N[i] == data1) {
      G[i] = 0;
      H[i] = 0;
    }
  }
} else if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
           (data1 == MIDI_C_ALL_NOTES_OFF)) {
  for (i = 0; i < 4; i++) {
    G[i] = 0;
    H[i] = 0;
  }
}

for (i = 0; i < 4; i++) {
  if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
      (data1 == (T[i] + 23)) && (H[i])) {
    P[i] = data2;
  }
  if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
      (data1 == (T[i] + 24)) && (H[i])) {
    A[i] = data2;
  }
  if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
      (data1 == (T[i] + 25)) && (H[i])) {
    B[i] = data2;
  }
}
