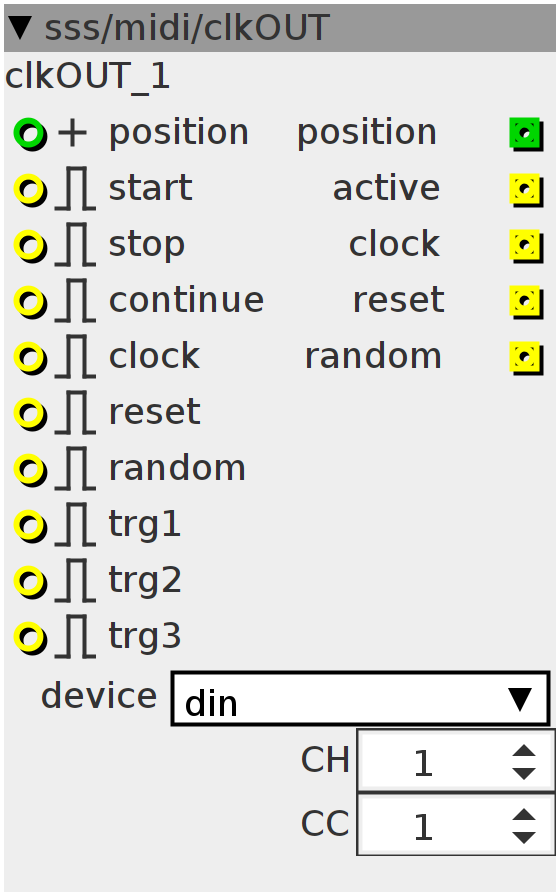

clkOUT
main midi clock module with song position and several extra boolean triggers to communicate with other axoloti's. Comes with it's own receive module for proper functioning of the midi messages! (clkIN module) reset/random/triggers are send as a single combined midiCC value whenever any one of them go high (each input being one bit) to reduce message count if several get updated at the same time. NOTE! No "off" message will be send as the receiver does this automatically, again, to save message count.
Inlets
int32.positive position
bool32.risingfalling start
bool32.risingfalling stop
bool32.risingfalling continue
bool32.risingfalling clock
bool32.risingfalling reset
bool32.risingfalling random
bool32.risingfalling trg1
bool32.risingfalling trg2
bool32.risingfalling trg3
Outlets
int32 position
bool32 active
bool32 clock
bool32 reset
bool32 random
Attributes
spinner CH
spinner CC
combo device
int pos, trg, act, ACT, stop, rnd, rst;int AS = inlet_start || inlet_continue;
if (AS && !act) {
act = 1;
ACT = 1;
if (inlet_start) {
MidiSend1((midi_device_t)attr_device, MIDI_START);
} else {
MidiSend1((midi_device_t)attr_device, MIDI_CONTINUE);
}
MidiSend3((midi_device_t)attr_device, MIDI_SONG_POSITION,
inlet_position & 127, inlet_position >> 7);
pos = inlet_position;
} else if (!AS) {
act = 0;
}
if (inlet_stop && !stop) {
stop = 1;
ACT = 0;
MidiSend1((midi_device_t)attr_device, MIDI_STOP);
} else if (!inlet_stop) {
stop = 0;
}
outlet_active = ACT;
outlet_clock = 0;
if (ACT) {
if (!(inlet_position == pos)) {
MidiSend3((midi_device_t)attr_device, MIDI_SONG_POSITION,
inlet_position & 127, inlet_position >> 7);
}
if (inlet_clock && !trg) {
trg = 1;
MidiSend1((midi_device_t)attr_device, MIDI_TIMING_CLOCK);
outlet_clock = 1;
} else if (!inlet_clock) {
trg = 0;
}
}
outlet_reset = 0;
outlet_random = 0;
int RST = inlet_reset + (inlet_random << 1) + (inlet_trg1 << 2) +
(inlet_trg2 << 3) + (inlet_trg3 << 4);
if ((RST > 0) && !rst) {
rst = 1;
if (inlet_reset) {
outlet_reset = 1;
}
if (inlet_random) {
outlet_random = 1;
}
MidiSend3((midi_device_t)attr_device, MIDI_CONTROL_CHANGE + (attr_CH - 1),
attr_CC, __USAT(RST, 7));
} else if ((RST < 1) && rst) {
rst = 0;
}
pos = inlet_position;
