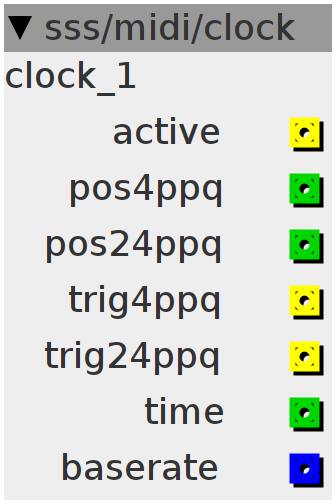

clock
Midi clock slave -also outputs a 4ppq and 24ppq clock -time output gives the sample-time for a 4ppq clock.
Inlets
None
Outlets
bool32 Song is playing
bool32 trig4ppq
bool32 trig24ppq
int32 Position in 4 counts per quarter
int32 Position in 24 counts per quarter
int32 time
frac32 baserate
Declaration
int32_t _active;
int32_t _pos;
int32_t _pos_shadow;
int trg4;
int trg24;
int count;
int32_t cnt;
int32_t TIME;
int32_t val1;
int32_t val2;
int32_t Time;
Init
_active = 0;
_pos = 0;
_pos_shadow = 0;
Control Rate
outlet_active = _active;
outlet_pos4ppq = _pos / 6;
outlet_pos24ppq = _pos;
outlet_trig4ppq = trg4;
outlet_trig24ppq = trg24;
trg24 = 0;
trg4 = 0;
val1 += ((TIME << 8) - val1) >> 8;
val2 += (val1 - val2) >> 8;
if ((val2 > Time + 2000) || (val2 < Time - 2000)) {
Time = val2;
}
outlet_time = TIME;
outlet_baserate = (int32_t)((float32_t)(1 << 29) / Time) << 12;
Audio Rate
cnt += 1;
Midi Handler
if (status == MIDI_TIMING_CLOCK) {
_pos_shadow++;
_pos = _pos_shadow;
count += 1;
count = count - count / 6 * 6;
if (count == 0) {
trg4 = 1;
TIME = cnt;
cnt = 0;
}
trg24 = 1;
} else if (status == MIDI_START) {
_active = 1;
_pos = 0;
_pos_shadow = -1;
} else if (status == MIDI_STOP) {
_active = 0;
_pos = -1;
} else if (status == MIDI_CONTINUE) {
_active = 1;
} else if (status == MIDI_SONG_POSITION) {
_pos_shadow = 6 * ((data2 << 7) + data1) - 1;
}
