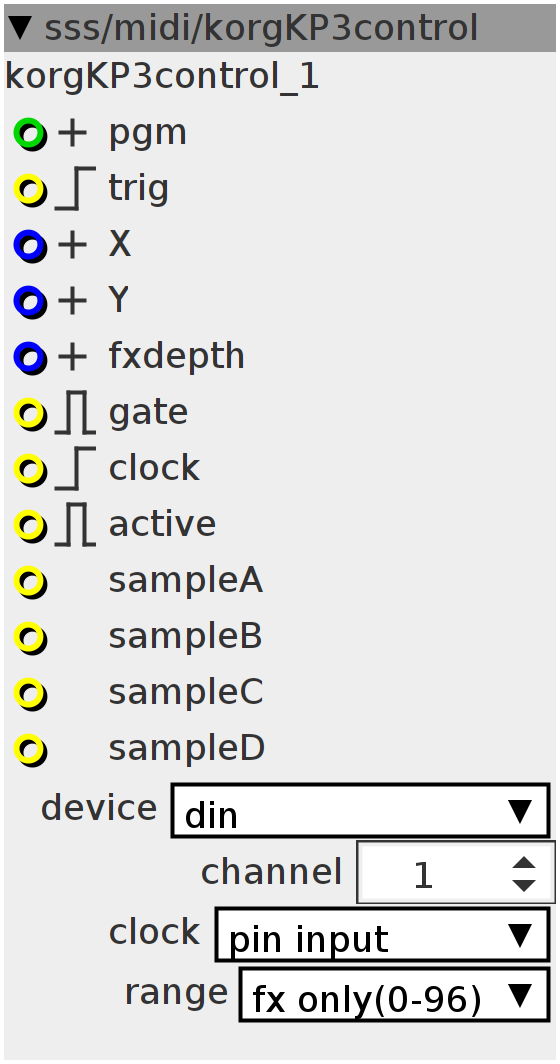

korgKP3control
Dedicated Korg Kaosspad 3 external midi controller object -program change inputs for selecting FX (better only do this while gate is low and not at the beginning when the gate goes high) -gate/X/Y/fx-depth midi control (with midi message thinning, also only sends when gate is high) -selectable clock source (pin input, external midi or off) -trigger inputs for sample A to D
Inlets
int32.positive prgram number (0-127)
bool32.rising trigger
bool32.rising clock
frac32.positive X
frac32.positive Y
frac32.positive fxdepth
bool32.risingfalling gate
bool32.risingfalling active
bool32 sampleA
bool32 sampleB
bool32 sampleC
bool32 sampleD
Outlets
None
Attributes
combo device
combo clock
combo range
spinner channel
int ntrig, _active, ctrig, mtrig, sa, sb, sc, sd;
int32_t D, X, Y;
int cnt[3];if ((inlet_trig > 0) && !ntrig) {
MidiSend2((midi_device_t)attr_device,
MIDI_PROGRAM_CHANGE + (attr_channel - 1),
(inlet_pgm & 0x7F) % (attr_range > 0 ? 0x7F : 97));
ntrig = 1;
} else if (!(inlet_trig > 0)) {
ntrig = 0;
}
if (attr_clock < 1) {
if (inlet_active) {
if (inlet_clock && !ctrig) {
MidiSend1((midi_device_t)attr_device, MIDI_TIMING_CLOCK);
ctrig = 1;
} else if (!inlet_clock) {
ctrig = 0;
}
if (!_active) {
_active = 1;
MidiSend1((midi_device_t)attr_device, MIDI_START);
}
} else if (!inlet_active && _active) {
_active = 0;
MidiSend1((midi_device_t)attr_device, MIDI_STOP);
}
}
if ((inlet_gate > 0) && !mtrig) {
MidiSend3((midi_device_t)attr_device,
MIDI_CONTROL_CHANGE + (attr_channel - 1), 92, 127);
mtrig = 1;
}
if ((!inlet_gate) && mtrig) {
mtrig = 0;
MidiSend3((midi_device_t)attr_device,
MIDI_CONTROL_CHANGE + (attr_channel - 1), 92, 0);
}
int x, y, d;
x = __USAT(inlet_X >> 20, 7);
y = __USAT(inlet_Y >> 20, 7);
d = __USAT(inlet_fxdepth >> 20, 7);
if (inlet_gate > 0) {
if (!(x == X)) {
if (cnt[0] > 30) {
MidiSend3((midi_device_t)attr_device,
MIDI_CONTROL_CHANGE + (attr_channel - 1), 12, x);
cnt[0] = 0;
}
}
if (!(y == Y)) {
if (cnt[1] > 30) {
MidiSend3((midi_device_t)attr_device,
MIDI_CONTROL_CHANGE + (attr_channel - 1), 13, y);
cnt[1] = 0;
}
}
if (!(d == D)) {
if (cnt[2] > 30) {
MidiSend3((midi_device_t)attr_device,
MIDI_CONTROL_CHANGE + (attr_channel - 1), 94, d);
cnt[2] = 0;
}
}
}
if (inlet_sampleA && !sa) {
sa = 1;
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_ON + (attr_channel - 1), 36,
127);
} else if ((!inlet_sampleA) && sa) {
sa = 0;
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_OFF + (attr_channel - 1), 36,
0);
}
if (inlet_sampleB && !sb) {
sb = 1;
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_ON + (attr_channel - 1), 37,
127);
} else if ((!inlet_sampleB) && sb) {
sb = 0;
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_OFF + (attr_channel - 1), 37,
0);
}
if (inlet_sampleC && !sc) {
sc = 1;
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_ON + (attr_channel - 1), 38,
127);
} else if ((!inlet_sampleC) && sc) {
sc = 0;
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_OFF + (attr_channel - 1), 38,
0);
}
if (inlet_sampleD && !sd) {
sd = 1;
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_ON + (attr_channel - 1), 39,
127);
} else if ((!inlet_sampleD) && sd) {
sd = 0;
MidiSend3((midi_device_t)attr_device, MIDI_NOTE_OFF + (attr_channel - 1), 39,
0);
}
for (int i = 0; i < 3; i++) {
if (cnt[i] < 800) {
cnt[i] += 1;
}
}
X = x;
Y = y;
D = d;if (attr_clock == 1) {
if (status == MIDI_TIMING_CLOCK) {
MidiSend1((midi_device_t)attr_device, MIDI_TIMING_CLOCK);
} else if (status == MIDI_START) {
_active = 1;
MidiSend1((midi_device_t)attr_device, MIDI_START);
} else if (status == MIDI_STOP) {
_active = 0;
MidiSend1((midi_device_t)attr_device, MIDI_STOP);
} else if (status == MIDI_CONTINUE) {
_active = 1;
MidiSend1((midi_device_t)attr_device, MIDI_CONTINUE);
}
}
