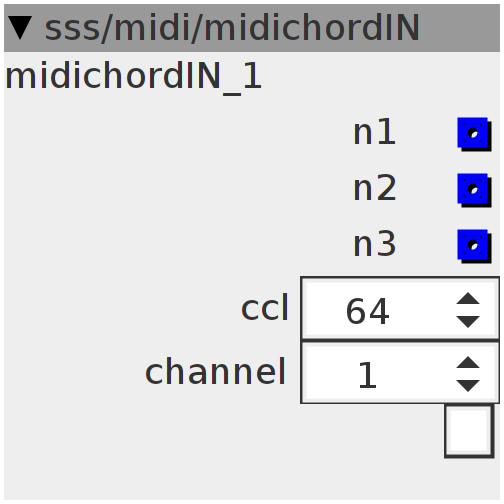

midichordIN
Receives 3 notes (triad) with pitchbend offset. To be used with the pythagorean tonnetz sequencer and "midichordOUT" modules. This way the frequencies being generated by the tonnetz sequencer can also be send to external boards. This module outputs note-values instead of the frequency input values of the "midichordOUT" module.
Inlets
None
Outlets
frac32 n1
frac32 n2
frac32 n3
Parameters
bool32.tgl singleOctave
Attributes
spinner ccl
spinner channel
Declaration
int32_t note[3];
int32_t bend[3];
int cnt;
int32_t bendl;
bool ntrig;
bool singleOct;
Init
cnt = 2;
bendl = 0;
for (int i = 0; i < 3; i++) {
note[i] = 0;
bend[i] = 0;
}
Control Rate
outlet_n1 = note[0] + (bend[0] >> 7);
outlet_n2 = note[1] + (bend[1] >> 7);
outlet_n3 = note[2] + (bend[2] >> 7);
singleOct = param_singleOctave;
Midi Handler
if ((status == MIDI_NOTE_ON + attr_channel - 1) && data2) {
cnt += 1;
cnt = cnt > 2 ? 0 : cnt;
note[cnt] = data1 - 64;
if (singleOct > 0) {
note[cnt] = note[cnt] - note[cnt] / 12 * 12 + (note[cnt] < 0 ? 12 : 0);
}
note[cnt] = note[cnt] << 21;
}
if (status == MIDI_PITCH_BEND + attr_channel - 1) {
bend[cnt] = (((int)((data2 << 7) + data1) - 0x2000) << 14) + bendl;
ntrig = 0;
} else if ((status == attr_channel - 1 + MIDI_CONTROL_CHANGE) &&
(data1 == attr_ccl)) {
bendl = data2 << 7;
}
