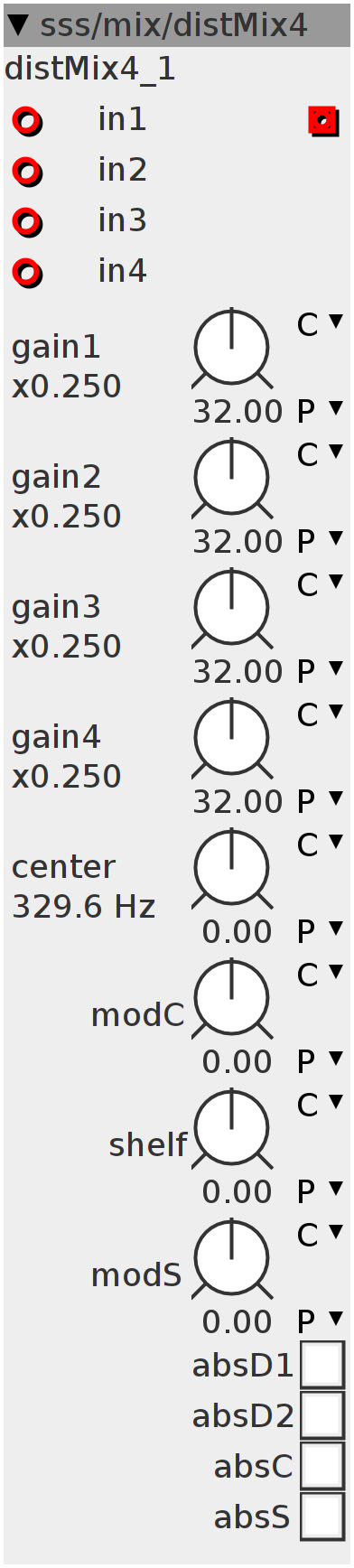

distMix4
4 input s-rate mixer, square gain scale with a nasty distortion Pairs very well with the sss/edrum/DR5 module!
Inlets
frac32buffer input 1
frac32buffer input 2
frac32buffer input 3
frac32buffer input 4
Outlets
frac32buffer mix out
Parameters
frac32.u.map.squaregain gain1
frac32.u.map.squaregain gain2
frac32.u.map.squaregain gain3
frac32.u.map.squaregain gain4
frac32.s.map.pitch center
frac32.s.map modC
frac32.s.map shelf
frac32.s.map modS
bool32.tgl absD1
bool32.tgl absD2
bool32.tgl absC
bool32.tgl absS
int32_t SOFT(int32_t in) {
int32_t ts = __SSAT(in, 28);
int32_t tsq31 = ts << 3;
int32_t tsq31p3 = ___SMMUL(tsq31, ___SMMUL(tsq31, tsq31));
return ts = ts + (ts >> 1) - (tsq31p3);
}
int32_t lp;int32_t a1 = ___SMMUL(__SSAT(inlet_in1, 28) << 3, __USAT(param_gain1, 29));
a1 += ___SMMUL(__SSAT(inlet_in2, 28) << 3, __USAT(param_gain2, 29));
a1 += ___SMMUL(__SSAT(inlet_in3, 28) << 3, __USAT(param_gain3, 29));
a1 += ___SMMUL(__SSAT(inlet_in4, 28) << 3, __USAT(param_gain4, 29));
int32_t in1 = SOFT(___SMMUL(__SSAT(inlet_in1, 28) << 3, param_gain1));
int32_t in2 = SOFT(___SMMUL(__SSAT(inlet_in2, 28) << 3, param_gain2));
int32_t in3 = SOFT(___SMMUL(__SSAT(inlet_in3, 28) << 3, param_gain3));
int32_t in4 = SOFT(___SMMUL(__SSAT(inlet_in4, 28) << 3, param_gain4));
in1 += in2 + in3 + in4 - a1;
if (param_absD2 > 0) {
in1 = in1 > 0 ? in1 : -in1;
}
int32_t frq;
int32_t m1 = a1;
if (param_absC > 0) {
m1 = m1 > 0 ? m1 : -m1;
}
MTOF(param_center + ((___SMMUL(param_modC, m1) << 6)), frq)
lp = ___SMMLA(in1 - lp << 1, frq, lp);
in2 = (lp << 1) - (in1);
if (param_absD1 > 0) {
in2 = in2 > 0 ? in2 : -in2;
}
int32_t m2 = a1;
if (param_absS > 0) {
m2 = m2 > 0 ? m2 : -m2;
}
int32_t accum =
SOFT(a1 + in1 +
(___SMMUL(param_shelf + (___SMMUL(param_modS, m2) << 5), in2) << 6));
outlet_out = accum;
