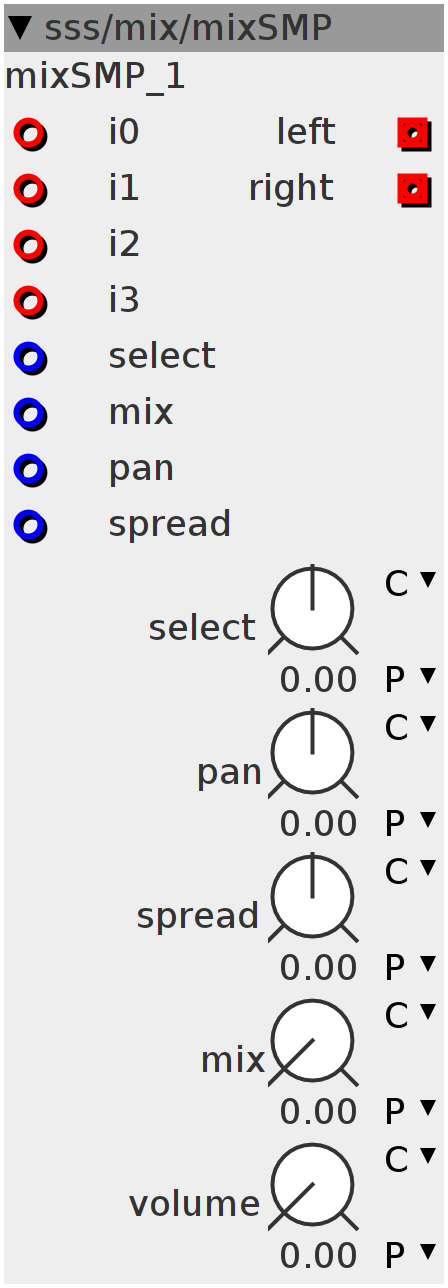

mixSMP
This is a mixing module with a low control count, allowing quick adjustments in a live situation. select: morphs through the available inputs and sets that channel as the "main channel", following channels will be "side" channels. The main is always the "loudest" channel mix: controls the volume of the "side" channels. 1nd channel to be mixed in is mixed in linearly, 2nd at a power of 2 and 3rd at a power of 4.
Inlets
frac32buffer i0
frac32buffer i1
frac32buffer i2
frac32buffer i3
frac32 select
frac32 mix
frac32 pan
frac32 spread
Outlets
frac32buffer left
frac32buffer right
Parameters
frac32.u.map mix
frac32.u.map volume
frac32.s.map select
frac32.s.map pan
frac32.s.map spread
int32_t left;
int32_t right;
int i;
int j;
int32_t panL[4];
int32_t panR[4];
int32_t Gain[4];
int32_t lvls(int32_t Pan, int32_t Spread, int32_t gain, int32_t i) {
int32_t PAN = (Pan + Spread * i * 2 + (1 << 27)) & ((1 << 29) - 1);
PAN = PAN > (1 << 28) ? (1 << 29) - PAN : PAN;
PAN = PAN << 2;
panL[i] = ___SMMUL(PAN, gain << 2) << 3;
panR[i] = (gain << 3) - panL[i];
}
int32_t paN(int32_t X, int32_t pan, int32_t ipan) {
left += ___SMMUL(pan, X);
right += ___SMMUL(ipan, X);
}Gain[0] = (1 << 27);Gain[1] = __USAT(param_mix + inlet_mix, 27);
Gain[2] = Gain[1];
Gain[1] = (1 << 27) - Gain[1];
Gain[1] = (1 << 27) - ___SMMUL(Gain[1] << 3, Gain[1] << 2);
Gain[3] = ___SMMUL(Gain[2] << 3, Gain[2] << 2);
int32_t S = (param_select + inlet_select) & ((1 << 27) - 1);
int32_t tgain = 0;
for (i = 0; i < 4; i++) {
tgain += Gain[0];
}
float32_t ratio = (float32_t)(1 << 30) / (tgain >> 2);
for (j = 0; j < 4; j++) {
lvls(param_pan + inlet_pan, param_spread + inlet_spread, Gain[j], j);
}
int32_t a1;
int32_t b1;
int32_t c1;
int32_t d1;
int32_t a2;
int32_t b2;
int32_t c2;
int32_t d2;
int32_t x;
int32_t y;
int32_t selectbase;
int32_t select1;
int32_t select2;
selectbase = ((S >> 25));
select1 = (selectbase)&3;
select2 = (selectbase + 1) & 3;
x = (S - (selectbase << 25)) << 3;
y = (1 << 28) - x;
x = ___SMMUL(x << 2, param_volume << 3) * ratio;
y = ___SMMUL(y << 2, param_volume << 3) * ratio;left = 0;
right = 0;
switch (int(select1) > 0 ? select1 : 0) {
case 0:
a1 = inlet_i0, b1 = inlet_i1, c1 = inlet_i2, d1 = inlet_i3;
break;
case 1:
a1 = inlet_i1, b1 = inlet_i2, c1 = inlet_i3, d1 = inlet_i0;
break;
case 2:
a1 = inlet_i2, b1 = inlet_i3, c1 = inlet_i0, d1 = inlet_i1;
break;
case 3:
a1 = inlet_i3, b1 = inlet_i0, c1 = inlet_i1, d1 = inlet_i2;
break;
default:
a1 = inlet_i0, b1 = inlet_i1, c1 = inlet_i2, d1 = inlet_i3;
break;
}
switch (int(select2) > 0 ? select2 : 0) {
case 0:
a2 = inlet_i0, b2 = inlet_i1, c2 = inlet_i2, d2 = inlet_i3;
break;
case 1:
a2 = inlet_i1, b2 = inlet_i2, c2 = inlet_i3, d2 = inlet_i0;
break;
case 2:
a2 = inlet_i2, b2 = inlet_i3, c2 = inlet_i0, d2 = inlet_i1;
break;
case 3:
a2 = inlet_i3, b2 = inlet_i0, c2 = inlet_i1, d2 = inlet_i2;
break;
default:
a2 = inlet_i0, b2 = inlet_i1, c2 = inlet_i2, d2 = inlet_i3;
break;
}
paN(__SSAT(___SMMUL(y, a1) + ___SMMUL(x, a2) << 3, 29), panL[0], panR[0]);
paN(__SSAT(___SMMUL(y, b1) + ___SMMUL(x, b2) << 3, 29), panL[1], panR[1]);
paN(__SSAT(___SMMUL(y, c1) + ___SMMUL(x, c2) << 3, 29), panL[2], panR[2]);
paN(__SSAT(___SMMUL(y, d1) + ___SMMUL(x, d2) << 3, 29), panL[3], panR[3]);
outlet_left = left;
outlet_right = right;
