mixsix

$\text{[math]}$

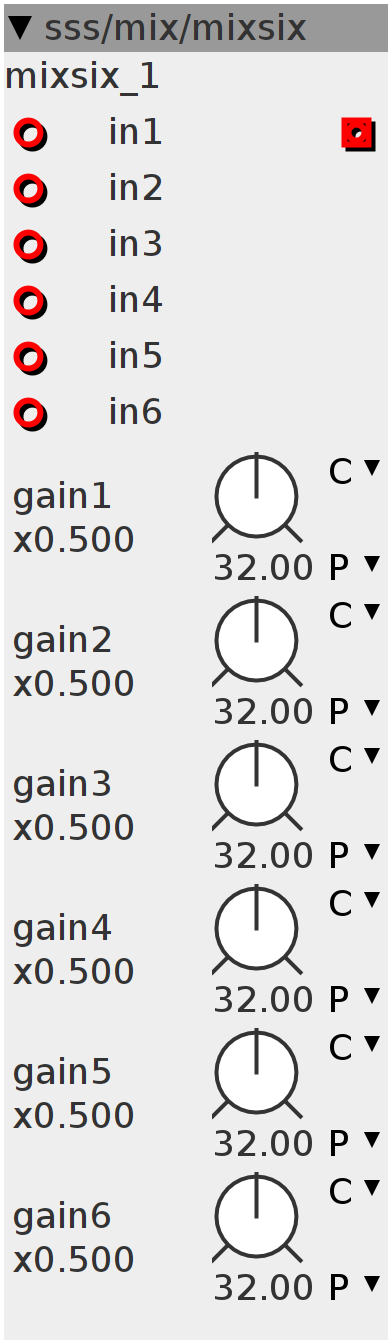

6 input s-rate mixer, shows gain units, removed bus to save memory for a project.

Author: Johannes Taelman edit by Remco van der Most

License: BSD

Github: sss/mix/mixsix.axo

Inlets

frac32buffer input 1

frac32buffer input 2

frac32buffer input 3

frac32buffer input 4

frac32buffer input 5

frac32buffer input 6

Outlets

frac32buffer mix out

Parameters

frac32.u.map.gain gain1

frac32.u.map.gain gain2

frac32.u.map.gain gain3

frac32.u.map.gain gain4

frac32.u.map.gain gain5

frac32.u.map.gain gain6

Audio Rate

int32_t accum = ___SMMUL(inlet_in1, param_gain1);
accum = ___SMMLA(inlet_in2, param_gain2, accum);
;
accum = ___SMMLA(inlet_in3, param_gain3, accum);
;
accum = ___SMMLA(inlet_in4, param_gain4, accum);
;
accum = ___SMMLA(inlet_in5, param_gain5, accum);
;
accum = ___SMMLA(inlet_in6, param_gain6, accum);
;
outlet_out = __SSAT((accum << 1), 28);
