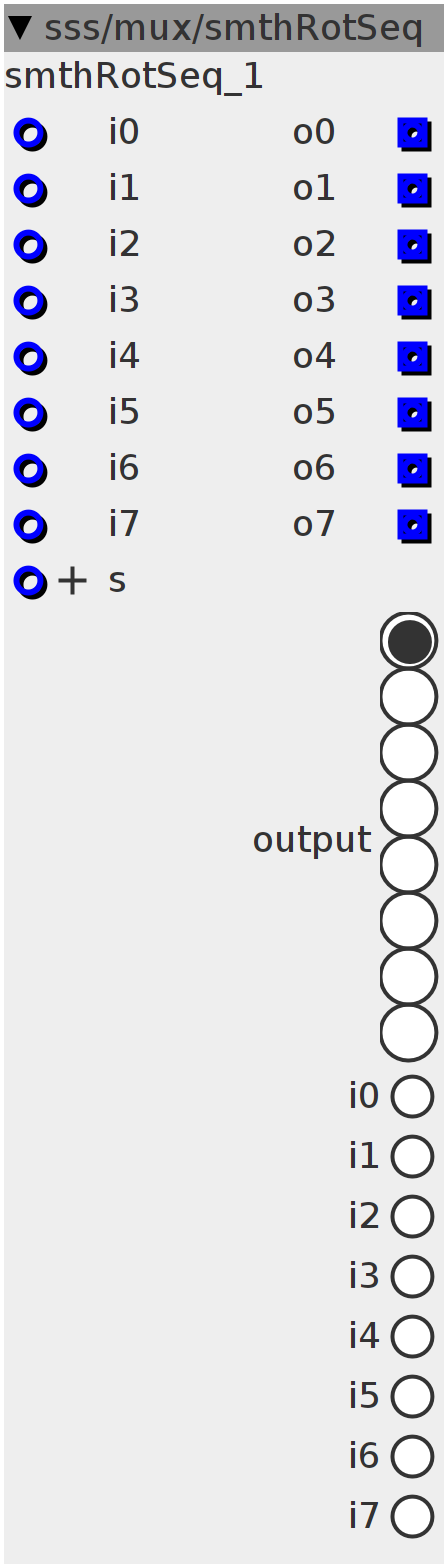

smthRotSeq
Smooth input rotator. Smoothly rotates all the inputs along the 8 outputs. This new version has internal 16-step sequences for each output for rotating through the inputs. How to use: -first select which output you want to make the sequence for. -then press the buttons in the order you want them to morph/rotate -redo this for all the outputs -when the max of 16 steps is reached, it will restart the count and overwrite the oldest selected inputs. it will save how many inputs are added (max 16) and will keep cycling through them in a 16-step sequence.
Inlets
frac32 input 0
frac32 input 1
frac32 input 2
frac32 input 3
frac32 i4
frac32 i5
frac32 i6
frac32 i7
frac32.positive s
Outlets
frac32 output
frac32 o1
frac32 o2
frac32 o3
frac32 o4
frac32 o5
frac32 o6
frac32 o7
Parameters
int32.vradio output
bool32.mom i0
bool32.mom i1
bool32.mom i2
bool32.mom i3
bool32.mom i4
bool32.mom i5
bool32.mom i6
bool32.mom i7
int C1[8];
int C2[8];
int array[8][18];
int atrig;
int32_t in[8];
int i;
int j;for (i = 0; i < 8; i++) {
for (j = 1; j < 16; j++) {
array[i][j] = (j + i) & 7;
array[i][0] = 1;
C1[i] = 0;
C2[i] = 0;
}
}int32_t a1;
int32_t b1;
int32_t c1;
int32_t d1;
int32_t e1;
int32_t f1;
int32_t g1;
int32_t h1;
int32_t a2;
int32_t b2;
int32_t c2;
int32_t d2;
int32_t e2;
int32_t f2;
int32_t g2;
int32_t h2;
int32_t x;
int32_t y;
int32_t selectbase;
int32_t select1;
int32_t select2;
in[0] = inlet_i0;
in[1] = inlet_i1;
in[2] = inlet_i2;
in[3] = inlet_i3;
in[4] = inlet_i4;
in[5] = inlet_i5;
in[6] = inlet_i6;
in[7] = inlet_i7;
int add = param_i0 + param_i1 * 2 + param_i2 * 3 + param_i3 * 4 + param_i4 * 5 +
param_i5 * 6 + param_i6 * 7 + param_i7 * 8;
if ((add > 0) && !atrig) {
atrig = 1;
C1[param_output] += 1;
C2[param_output] += 1;
C1[param_output] = C1[param_output] & 15;
C2[param_output] = C2[param_output] > 15 ? 15 : C2[param_output];
array[param_output][0] = C2[param_output];
array[param_output][C1[param_output]] = add - 1;
} else if (add == 0) {
atrig = 0;
}
selectbase = ((inlet_s >> 23));
select1 = (selectbase);
select2 = ((selectbase + 1));
a1 = in[array[0][select1 - (select1 / array[0][0]) * array[0][0] + 1]];
a2 = in[array[0][select2 - (select2 / array[0][0]) * array[0][0] + 1]];
b1 = in[array[1][select1 - (select1 / array[1][0]) * array[1][0] + 1]];
b2 = in[array[1][select2 - (select2 / array[1][0]) * array[1][0] + 1]];
c1 = in[array[2][select1 - (select1 / array[2][0]) * array[2][0] + 1]];
c2 = in[array[2][select2 - (select2 / array[2][0]) * array[2][0] + 1]];
d1 = in[array[3][select1 - (select1 / array[3][0]) * array[3][0] + 1]];
d2 = in[array[3][select2 - (select2 / array[3][0]) * array[3][0] + 1]];
e1 = in[array[4][select1 - (select1 / array[4][0]) * array[4][0] + 1]];
e2 = in[array[4][select2 - (select2 / array[4][0]) * array[4][0] + 1]];
f1 = in[array[5][select1 - (select1 / array[5][0]) * array[5][0] + 1]];
f2 = in[array[5][select2 - (select2 / array[5][0]) * array[5][0] + 1]];
g1 = in[array[6][select1 - (select1 / array[6][0]) * array[6][0] + 1]];
g2 = in[array[6][select2 - (select2 / array[6][0]) * array[6][0] + 1]];
h1 = in[array[7][select1 - (select1 / array[7][0]) * array[7][0] + 1]];
h2 = in[array[7][select2 - (select2 / array[7][0]) * array[7][0] + 1]];
x = (inlet_s - (selectbase << 23));
y = ((1 << 23) - x) << 5;
x = x << 5;
outlet_o0 = ___SMMUL(y, a1 << 4) + ___SMMUL(x, a2 << 4);
outlet_o1 = ___SMMUL(y, b1 << 4) + ___SMMUL(x, b2 << 4);
outlet_o2 = ___SMMUL(y, c1 << 4) + ___SMMUL(x, c2 << 4);
outlet_o3 = ___SMMUL(y, d1 << 4) + ___SMMUL(x, d2 << 4);
outlet_o4 = ___SMMUL(y, e1 << 4) + ___SMMUL(x, e2 << 4);
outlet_o5 = ___SMMUL(y, f1 << 4) + ___SMMUL(x, f2 << 4);
outlet_o6 = ___SMMUL(y, g1 << 4) + ___SMMUL(x, g2 << 4);
outlet_o7 = ___SMMUL(y, h1 << 4) + ___SMMUL(x, h2 << 4);
