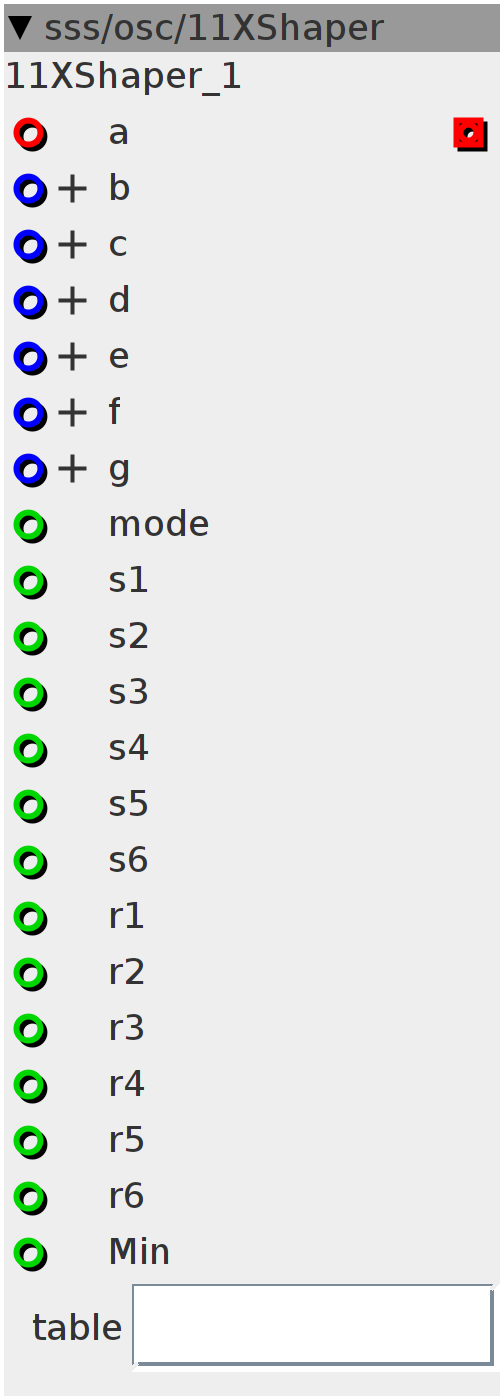

11XShaper
multicore phase-shaper: 0=hard bezier 1=soft bezier 2=vosim 3=6x spectral morph 4=glitch multi shaper 5=phased tripple sine AM 6=6x spectral morph AM 7=dual double pulsar 8=saw-tri-square-sine morpher 9=random all-shape glitch 10=superdupersaw 11=table writer
Inlets
frac32.positive parameter 1
frac32.positive parameter 2
frac32.positive parameter 3
frac32.positive parameter 4
frac32.positive parameter 5
frac32.positive parameter 6
int32 shape mode
int32 fixed variation input for certain shapers
int32 fixed variation input for certain shapers
int32 fixed variation input for certain shapers
int32 fixed variation input for certain shapers
int32 fixed variation input for certain shapers
int32 fixed variation input for certain shapers
int32 Range for harmonic morpher osc1
int32 Range for harmonic morpher osc2
int32 Range for harmonic morpher osc3
int32 Range for harmonic morpher osc4
int32 Range for harmonic morpher osc5
int32 Range for harmonic morpher osc6
int32 Minimum Harmonic value for harmonic morpher (root =1)
frac32buffer phase input
Outlets
frac32buffer output
Attributes
objref table
Declaration
int32_t a1;
int32_t b1;
int32_t c1;
int32_t d1;
int32_t r11;
int32_t r21;
int32_t s11;
int32_t s21;
int32_t a2;
int32_t b2;
int32_t c2;
int32_t d2;
int32_t r12;
int32_t r22;
int32_t s12;
int32_t s22;
int32_t a3;
int32_t b3;
int32_t c3;
int32_t d3;
int32_t r13;
int32_t r23;
int32_t s13;
int32_t s23;
int32_t a4;
int32_t b4;
int32_t c4;
int32_t d4;
int32_t r14;
int32_t r24;
int32_t s14;
int32_t s24;
int32_t a5;
int32_t b5;
int32_t c5;
int32_t d5;
int32_t r15;
int32_t r25;
int32_t s15;
int32_t s25;
int32_t a6;
int32_t b6;
int32_t c6;
int32_t d6;
int32_t r16;
int32_t r26;
int32_t s16;
int32_t s26;
int32_t x1;
int32_t x2;
int32_t x3;
int32_t x4;
int32_t x5;
int32_t x6;
int32_t kh;
int32_t base;
int32_t ka;
int32_t kb;
int32_t kc;
int32_t offs;
int32_t pulse1;
int32_t pulse2;
int32_t pulse3;
int32_t pulse4;
int32_t phases;
int32_t phaset;
int32_t phaseu;
int32_t phasev;
int32_t phasew;
int32_t phasex;
int32_t phasey;
int32_t phasez;
int32_t sina;
int32_t sinb;
int32_t mixa;
int32_t mixb;
int32_t mixc;
int32_t mixd;
int32_t wa;
int32_t wb;
int32_t wc;
int32_t we;
int32_t wf;
int32_t phaseg1;
int32_t phaseg2;
int32_t phaseg3;
int32_t phaseg4;
int32_t phaseinv;
int32_t ua;
int32_t ub;
int32_t uc;
int32_t ud;
int32_t phaseofs1;
int32_t phaseofs2;
int32_t phaseofs3;
int32_t siner;
int32_t sawterp;
int32_t mixf;
int32_t mixg1;
int32_t mixg2;
int ntrig;
int ptrig;
int32_t pval;
int32_t trig;
Init
int ntrig = 0;
ptrig = 0;
pval = 0;
Control Rate
if (inlet_mode == 5) {
c1 = (inlet_b - ((inlet_b >> 21) << 21));
d1 = ((1 << 21) - c1);
s11 = (inlet_Min + ((inlet_b >> 21) * inlet_s1 & ((inlet_r1)-1)));
s21 = (inlet_Min + (((inlet_b >> 21) + 1) * inlet_s1 & ((inlet_r1)-1)));
c2 = (inlet_c - ((inlet_c >> 21) << 21));
d2 = ((1 << 21) - c2);
s12 = (inlet_Min + ((inlet_c >> 21) * inlet_s2 & ((inlet_r2)-1)));
s22 = (inlet_Min + (((inlet_c >> 21) + 1) * inlet_s2 & ((inlet_r2)-1)));
c3 = (inlet_d - ((inlet_d >> 21) << 21));
d3 = ((1 << 21) - c3);
s13 = (inlet_Min + ((inlet_d >> 21) * inlet_s3 & ((inlet_r3)-1)));
s23 = (inlet_Min + (((inlet_d >> 21) + 1) * inlet_s3 & ((inlet_r3)-1)));
c4 = (inlet_e - ((inlet_e >> 21) << 21));
d4 = ((1 << 21) - c4);
s14 = (inlet_Min + ((inlet_e >> 21) * inlet_s4 & ((inlet_r4)-1)));
s24 = (inlet_Min + (((inlet_e >> 21) + 1) * inlet_s4 & ((inlet_r4)-1)));
c5 = (inlet_f - ((inlet_f >> 21) << 21));
d5 = ((1 << 21) - c5);
s15 = (inlet_Min + ((inlet_f >> 21) * inlet_s5 & ((inlet_r5)-1)));
s25 = (inlet_Min + (((inlet_f >> 21) + 1) * inlet_s5 & ((inlet_r5)-1)));
c6 = (inlet_g - ((inlet_g >> 21) << 21));
d6 = ((1 << 21) - c6);
s16 = (inlet_Min + ((inlet_g >> 21) * inlet_s6 & ((inlet_r6)-1)));
s26 = (inlet_Min + (((inlet_g >> 21) + 1) * inlet_s6 & ((inlet_r6)-1)));
} else if (inlet_mode == 6) {
c1 = (inlet_b - ((inlet_b >> 21) << 21));
d1 = ((1 << 21) - c1);
s11 = (inlet_Min + ((inlet_b >> 21) * inlet_s1 & ((inlet_r1)-1)));
s21 = (inlet_Min + (((inlet_b >> 21) + 1) * inlet_s1 & ((inlet_r1)-1)));
c2 = (inlet_c - ((inlet_c >> 21) << 21));
d2 = ((1 << 21) - c2);
s12 = (inlet_Min + ((inlet_c >> 21) * inlet_s2 & ((inlet_r2)-1)));
s22 = (inlet_Min + (((inlet_c >> 21) + 1) * inlet_s2 & ((inlet_r2)-1)));
c3 = (inlet_d - ((inlet_d >> 21) << 21));
d3 = ((1 << 21) - c3);
s13 = (inlet_Min + ((inlet_d >> 21) * inlet_s3 & ((inlet_r3)-1)));
s23 = (inlet_Min + (((inlet_d >> 21) + 1) * inlet_s3 & ((inlet_r3)-1)));
c4 = (inlet_e - ((inlet_e >> 21) << 21));
d4 = ((1 << 21) - c4);
s14 = (inlet_Min + ((inlet_e >> 21) * inlet_s4 & ((inlet_r4)-1)));
s24 = (inlet_Min + (((inlet_e >> 21) + 1) * inlet_s4 & ((inlet_r4)-1)));
c5 = (inlet_f - ((inlet_f >> 21) << 21));
d5 = ((1 << 21) - c5);
s15 = (inlet_Min + ((inlet_f >> 21) * inlet_s5 & ((inlet_r5)-1)));
s25 = (inlet_Min + (((inlet_f >> 21) + 1) * inlet_s5 & ((inlet_r5)-1)));
c6 = (inlet_g - ((inlet_g >> 21) << 21));
d6 = ((1 << 21) - c6);
s16 = (inlet_Min + ((inlet_g >> 21) * inlet_s6 & ((inlet_r6)-1)));
s26 = (inlet_Min + (((inlet_g >> 21) + 1) * inlet_s6 & ((inlet_r6)-1)));
} else if (inlet_mode == 10) {
phaseofs1 += inlet_f >> 12;
phaseofs2 += (inlet_f >> 12) * 1.3333 + (1 << 9);
phaseofs3 += (inlet_f >> 12) * 1.75 + (1 << 10);
} else if (inlet_mode == 11) {
if ((pval != inlet_b) & (!ptrig)) {
trig = 1;
pval = inlet_b;
ptrig = 1;
} else {
ptrig = 0;
trig = 0;
}
if ((trig > 0) && !ntrig) {
ntrig = 1;
attr_table.array[__USAT(((inlet_b << 1) + (1 << 26)), 27) >>
(27 - attr_table.LENGTHPOW)] =
__SSAT(inlet_c, 28) >> attr_table.GAIN;
}
if (!(trig > 0))
ntrig = 0;
}
Audio Rate
int32_t posx;
int32_t invx;
int32_t y;
int32_t a1;
int32_t a2;
int32_t a3;
int32_t mode =
(inlet_mode + (inlet_mode == 9 ? (outlet_result >> 24) - 9 : 0)) &
((1 << 4) - 1);
switch (mode > 0 ? mode : 0) {
case 0:
posx = (inlet_a + inlet_e) & ((1 << 27) - 1);
invx = (1 << 27) - posx;
y = inlet_b;
a1 = ___SMMUL(posx << 3, y << 2);
a2 = ___SMMUL(invx << 3, y << 2) + ___SMMUL(posx << 3, (1 << 27) << 2);
a3 = ___SMMUL(invx << 3, a1 << 2) + ___SMMUL(posx << 3, a2 << 2);
a3 = (a3 - inlet_e) & ((1 << 27) - 1);
posx = (a3 + inlet_f) & ((1 << 27) - 1);
invx = (1 << 27) - posx;
y = inlet_c;
a1 = ___SMMUL(posx << 3, y << 2);
a2 = ___SMMUL(invx << 3, y << 2) + ___SMMUL(posx << 3, (1 << 27) << 2);
a3 = ___SMMUL(invx << 3, a1 << 2) + ___SMMUL(posx << 3, a2 << 2);
a3 = (a3 - inlet_f) & ((1 << 27) - 1);
posx = (a3 + inlet_g) & ((1 << 27) - 1);
invx = (1 << 27) - posx;
y = inlet_d;
a1 = ___SMMUL(posx << 3, y << 2);
a2 = ___SMMUL(invx << 3, y << 2) + ___SMMUL(posx << 3, (1 << 27) << 2);
a3 = ___SMMUL(invx << 3, a1 << 2) + ___SMMUL(posx << 3, a2 << 2);
a3 = (a3 - inlet_g) & ((1 << 27) - 1);
int32_t r;
SINE2TINTERP(a3 << 6, r)
outlet_result = (r >> 5);
;
break;
case 1: {
int(x1) = inlet_a;
int(y1) = ((128 << 20) - inlet_a);
int p0 = (int64_t)inlet_b;
int p1 = (int64_t)inlet_c;
int p2 = (int64_t)inlet_d;
int p3 = (int64_t)inlet_b - inlet_c;
int p4 = (int64_t)inlet_b;
int x2 = ___SMMUL(x1 << 3, x1 << 2);
int x3 = ___SMMUL(x2 << 3, x1 << 2);
int x4 = ___SMMUL(x3 << 3, x1 << 2);
int y2 = ___SMMUL(y1 << 3, y1 << 2);
int y3 = ___SMMUL(y2 << 3, y1 << 2);
int y4 = ___SMMUL(y3 << 3, y1 << 2);
int a = ___SMMUL(y4 << 3, p0 << 3);
int b = ___SMMUL(x1 << 3, ___SMMUL(y3 << 3, p1 << 3) << 2) * 4;
int c = ___SMMUL(x2 << 3, ___SMMUL(y2 << 3, p2 << 3) << 2) * 6;
int d = ___SMMUL(x3 << 3, ___SMMUL(y1 << 3, p3 << 3) << 2) * 4;
int e = ___SMMUL(x4 << 3, p4 << 3);
int f = (inlet_a + a + b + c + d + e) & ((1 << 27) - 1);
int(r1) = f;
int(t1) = ((128 << 20) - f);
int q0 = (int64_t)inlet_e;
int q1 = (int64_t)inlet_f;
int q2 = (int64_t)inlet_g;
int q3 = (int64_t)inlet_e - inlet_f;
int q4 = (int64_t)inlet_e;
int r2 = ___SMMUL(r1 << 3, r1 << 2);
int r3 = ___SMMUL(r2 << 3, r1 << 2);
int r4 = ___SMMUL(r3 << 3, r1 << 2);
int t2 = ___SMMUL(t1 << 3, t1 << 2);
int t3 = ___SMMUL(t2 << 3, t1 << 2);
int t4 = ___SMMUL(t3 << 3, t1 << 2);
int g = ___SMMUL(t4 << 3, q0 << 2);
int h = ___SMMUL(r1 << 3, ___SMMUL(t3 << 3, q1 << 3) << 2) * 4;
int i = ___SMMUL(r2 << 3, ___SMMUL(t2 << 3, q2 << 3) << 2) * 6;
int j = ___SMMUL(r3 << 3, ___SMMUL(t1 << 3, q3 << 3) << 2) * 4;
int k = ___SMMUL(r4 << 3, q4 << 2);
int l = (inlet_a + g + h + i + j + k) & ((1 << 27) - 1);
int32_t r;
SINE2TINTERP(l << 5, r)
outlet_result = (r >> 5);
}
;
break;
case 2:
float32_t r6;
float32_t s6;
float32_t t6;
int32_t u6;
int32_t v6;
int32_t w6;
SINE2TINTERP((inlet_a * (1 + (inlet_b >> 17))), r6)
SINE2TINTERP((inlet_a * (1 + ((inlet_c + inlet_b) >> 17))), s6)
SINE2TINTERP((inlet_a * (1 + ((inlet_d + inlet_b + inlet_c) >> 17))), t6)
SINE2TINTERP(((inlet_a << 5) - (1 << 30)), v6)
w6 = (v6 >> 4);
u6 = (w6 >> 1) + (1 << 26);
int32_t t5;
SINE2TINTERP(___SMMUL((___SMMUL(r6, inlet_e * 2) + ___SMMUL(s6, inlet_f * 2) +
___SMMUL(t6, inlet_g * 2))
<< 1,
u6 << 3)
<< 5,
t5);
outlet_result = (t5 >> 5);
;
break;
case 3:
int res;
int jump;
int rem;
int qnt;
int qnd;
int als;
if (inlet_a >= 0)
res = ((unsigned int)inlet_a) / inlet_b;
else
res = -(((unsigned int)(inlet_b - inlet_a)) / inlet_b);
jump = res;
rem = (inlet_a - (res * inlet_b)) *
((((jump * (inlet_d >> 6)) & ((1 << 27) - 1))) >> 20) +
(inlet_c >> 6) * jump + inlet_a;
qnt = (rem / (1 + inlet_e)) * (1 + inlet_e);
als = qnt + ___SMMUL(inlet_a << 3, inlet_f << 5) +
___SMMUL(((inlet_a - (res * inlet_b)) * inlet_b), inlet_g >> 5);
int32_t sina;
SINE2TINTERP(als << 5, sina)
outlet_result = sina >> 5;
;
break;
case 4:
int32_t sine;
int32_t window;
sina;
base = (inlet_a + inlet_e) & ((1 << 27) - 1);
SINE2TINTERP(((base) >> 8) * (inlet_b >> 9), sine)
HANNING2TINTERP((base) << 6, window)
sina = ___SMMUL(sine >> 3, window >> 2);
base = (inlet_a + inlet_f) & ((1 << 27) - 1);
int32_t sinb;
SINE2TINTERP(((___SMMUL(base << 2, sina << 2)) >> 9) * (inlet_c >> 9), sine)
HANNING2TINTERP((base) << 6, window)
sinb = ___SMMUL(sine >> 3, window >> 2);
base = (inlet_a + inlet_g) & ((1 << 27) - 1);
int32_t sinc;
SINE2TINTERP(((___SMMUL(base << 2, sinb << 2)) >> 9) * (inlet_d >> 9), sine)
HANNING2TINTERP((base) << 6, window)
sinc = ___SMMUL(sine >> 3, window >> 2);
int32_t sind;
SINE2TINTERP(___SMMUL(___SMMUL(sina << 4, sinb << 3) << 5, sinc << 5) << 5,
sind);
outlet_result = sind >> 5;
;
break;
case 5:
a1 = inlet_a * s11;
b1 = inlet_a * s21;
SINE2TINTERP(a1 << 5, r11)
SINE2TINTERP(b1 << 5, r21)
x1 = (___SMMUL((r11), (d1 << 7) / ((s11 - 1) / 2 + 1)) +
___SMMUL((r21), (c1 << 7)) / ((s21 - 1) / 2 + 1)) >>
2;
a2 = inlet_a * s12;
b2 = inlet_a * s22;
SINE2TINTERP(a2 << 5, r12)
SINE2TINTERP(b2 << 5, r22)
x2 = (___SMMUL((r12), (d2 << 7) / ((s12 - 1) / 2 + 1)) +
___SMMUL((r22), (c2 << 7)) / ((s22 - 1) / 2 + 1)) >>
2;
a3 = inlet_a * s13;
b3 = inlet_a * s23;
SINE2TINTERP(a3 << 5, r13)
SINE2TINTERP(b3 << 5, r23)
x3 = (___SMMUL((r13), (d3 << 7) / ((s13 - 1) / 2 + 1)) +
___SMMUL((r23), (c3 << 7)) / ((s23 - 1) / 2 + 1)) >>
2;
a4 = inlet_a * s14;
b4 = inlet_a * s24;
SINE2TINTERP(a4 << 5, r14)
SINE2TINTERP(b4 << 5, r24)
x4 = (___SMMUL((r14), (d4 << 7) / ((s14 - 1) / 2 + 1)) +
___SMMUL((r24), (c4 << 7)) / ((s24 - 1) / 2 + 1)) >>
2;
a5 = inlet_a * s15;
b5 = inlet_a * s25;
SINE2TINTERP(a5 << 5, r15)
SINE2TINTERP(b5 << 5, r25)
x5 = (___SMMUL((r15), (d5 << 7) / ((s15 - 1) / 2 + 1)) +
___SMMUL((r25), (c5 << 7)) / ((s25 - 1) / 2 + 1)) >>
2;
a6 = inlet_a * s16;
b6 = inlet_a * s26;
SINE2TINTERP(a6 << 5, r16)
SINE2TINTERP(b6 << 5, r26)
x6 = (___SMMUL((r16), (d6 << 7) / ((s16 - 1) / 2 + 1)) +
___SMMUL((r26), (c6 << 7)) / ((s26 - 1) / 2 + 1)) >>
2;
int32_t kh;
SINE2TINTERP((x1 + x2 + x3 + x4 + x5 + x6) << 6, kh);
outlet_result = kh >> 5;
break;
case 6:
a1 = inlet_a * s11;
b1 = inlet_a * s21;
SINE2TINTERP(a1 << 5, r11)
SINE2TINTERP(b1 << 5, r21)
x1 = (___SMMUL((r11), (d1 << 7) / ((s11 - 1) / 4 + 1)) +
___SMMUL((r21), (c1 << 7)) / ((s21 - 1) / 4 + 1)) >>
2;
a2 = inlet_a * s12;
b2 = inlet_a * s22;
SINE2TINTERP(a2 << 5, r12)
SINE2TINTERP(b2 << 5, r22)
x2 = (___SMMUL((r12), (d2 << 7) / ((s12 - 1) / 4 + 1)) +
___SMMUL((r22), (c2 << 7)) / ((s22 - 1) / 4 + 1)) >>
2;
a3 = inlet_a * s13;
b3 = inlet_a * s23;
SINE2TINTERP(a3 << 5, r13)
SINE2TINTERP(b3 << 5, r23)
x3 = (___SMMUL((r13), (d3 << 7) / ((s13 - 1) / 4 + 1)) +
___SMMUL((r23), (c3 << 7)) / ((s23 - 1) / 4 + 1)) >>
2;
a4 = inlet_a * s14;
b4 = inlet_a * s24;
SINE2TINTERP(a4 << 5, r14)
SINE2TINTERP(b4 << 5, r24)
x4 = (___SMMUL((r14), (d4 << 7) / ((s14 - 1) / 4 + 1)) +
___SMMUL((r24), (c4 << 7)) / ((s24 - 1) / 4 + 1)) >>
2;
a5 = inlet_a * s15;
b5 = inlet_a * s25;
SINE2TINTERP(a5 << 5, r15)
SINE2TINTERP(b5 << 5, r25)
x5 = (___SMMUL((r15), (d5 << 7) / ((s15 - 1) / 4 + 1)) +
___SMMUL((r25), (c5 << 7)) / ((s25 - 1) / 4 + 1)) >>
2;
a6 = inlet_a * s16;
b6 = inlet_a * s26;
SINE2TINTERP(a6 << 5, r16)
SINE2TINTERP(b6 << 5, r26)
x6 = (___SMMUL((r16), (d6 << 7) / ((s16 - 1) / 4 + 1)) +
___SMMUL((r26), (c6 << 7)) / ((s26 - 1) / 4 + 1)) >>
2;
ka = ___SMMUL(x1 << 4, x2 << 4) << 6;
kb = ___SMMUL(x3 << 4, x4 << 4) << 6;
kc = ___SMMUL(x5 << 4, x6 << 4) << 6;
SINE2TINTERP((ka + kb + kc) << 1, kh)
outlet_result = kh >> 5;
;
break;
case 7:
if (inlet_a > (inlet_b + (1 << 27)) >> 1) {
pulse1 = inlet_a * (inlet_c >> 15);
} else {
pulse1 = inlet_a * (inlet_d >> 15);
}
pulse2 = pulse1 > (1 << 26) ? (1 << 26) : 0;
if (inlet_a > (inlet_e + (1 << 27)) >> 1) {
pulse3 = inlet_a * (inlet_f >> 15);
} else {
pulse3 = inlet_a * (inlet_g >> 15);
}
pulse4 = pulse3 > (1 << 26) ? (1 << 26) : 0;
outlet_result = (pulse2 + pulse4 - (1 << 26)) << 3;
;
break;
case 8:
wa = inlet_a;
wb = (inlet_b >> 1) + (1 << 26);
wc = (1 << 27) - wb;
if (wa < wb) {
phaseu = wa * ((1 << 30) / wb) >> 3;
} else {
phaseu = (1 << 27) - ((wa - wb) * ((1 << 30) / wc) >> 3);
}
phasev = (phaseu + (wa > wb ? (___SMMUL(inlet_c << 3, (wa - wb) << 4)) : 0));
phaset = (phasev > 0 ? phasev : -phasev) & ((1 << 27) - 1);
SINE2TINTERP((phaset << 4) - (1 << 30), sina)
mixa = (sina >> 5) + (1 << 26);
mixb = (1 << 27) - inlet_f;
phasew = ___SMMUL(inlet_f << 3, phaset << 2) + ___SMMUL(mixb << 3, mixa << 2);
we = (inlet_d >> 1) + (1 << 26);
wf = (1 << 27) - we;
if (phasew < we) {
phasex = phasew * ((1 << 30) / we) >> 3;
} else {
phasex = (1 << 27) - ((phasew - we) * ((1 << 30) / wf) >> 3);
}
phasey = (phasex +
(phasew > we ? (___SMMUL(inlet_e << 3, (phasew - we) << 4)) : 0));
phases = (phasey > 0 ? phasey : -phasey) & ((1 << 27) - 1);
SINE2TINTERP((phases << 4) - (1 << 30), sinb)
mixc = (sinb >> 5) + (1 << 26);
mixd = (1 << 27) - inlet_g;
phasez = ___SMMUL(inlet_g << 3, phases << 2) + ___SMMUL(mixd << 3, mixc << 2);
phaseg3 = phasez & ((1 << 28) - 1);
phaseg1 = phaseg3 < 0 ? -phaseg3 : phaseg3;
phaseg2 = phaseg1 > (1 << 27) ? (1 << 28) - phaseg1 : phaseg1;
outlet_result = phaseg2 - (1 << 26);
;
break;
case 9:
outlet_result = (inlet_b + inlet_c + inlet_d + inlet_e + inlet_f + inlet_g) &
((1 << 27) - 1);
;
break;
case 10:
phaseinv = ((1 << 27) - inlet_a + phaseofs3) & ((1 << 27) - 1);
ua = (___SMMUL(
((___SMMUL((inlet_a) << 4, inlet_b << 4) + phaseofs1) & ((1 << 25) - 1))
<< 5,
phaseinv << 2));
ub = ua * 0.25;
phaseinv = ((1 << 27) - inlet_a + phaseofs1) & ((1 << 27) - 1);
ua = (___SMMUL(
((___SMMUL((inlet_a) << 4, (inlet_b - inlet_c) << 4) + phaseofs2) &
((1 << 25) - 1))
<< 5,
phaseinv << 2));
uc = ua * 0.2;
phaseinv = ((1 << 27) - inlet_a + phaseofs2) & ((1 << 27) - 1);
ua = (___SMMUL(
((___SMMUL((inlet_a) << 4, (inlet_b + inlet_c) << 4) + phaseofs3) &
((1 << 25) - 1))
<< 5,
phaseinv << 2));
ud = ua * 0.15;
SINE2TINTERP((ub + uc + ud - (inlet_a / 2)) << 6, siner);
sawterp = ((ub + uc + ud) << 1 & ((1 << 26) - 1)) - (1 << 25);
mixf = (1 << 27) - (inlet_g & ((1 << 27) - 1));
mixg1 = ___SMMUL(mixf << 3, sawterp << 2) +
___SMMUL((inlet_g & ((1 << 27) - 1)) << 3, siner >> 4);
phaseinv = -(inlet_a + phaseofs2 * 2) & ((1 << 27) - 1);
ua = (___SMMUL(
((___SMMUL((inlet_a) << 4, inlet_d << 4) + phaseofs2 + phaseofs3) &
((1 << 25) - 1))
<< 5,
phaseinv << 2));
ub = ua * 0.25;
phaseinv = -(inlet_a + phaseofs3 * 2) & ((1 << 27) - 1);
ua = (___SMMUL(((___SMMUL((inlet_a) << 4, (inlet_d - inlet_e) << 4) +
phaseofs1 + phaseofs3) &
((1 << 25) - 1))
<< 5,
phaseinv << 2));
uc = ua * 0.2;
phaseinv = -(inlet_a + phaseofs1 * 2) & ((1 << 27) - 1);
ua = (___SMMUL(((___SMMUL((inlet_a) << 4, (inlet_d + inlet_e) << 4) +
phaseofs1 + phaseofs2) &
((1 << 25) - 1))
<< 5,
phaseinv << 2));
ud = ua * 0.15;
SINE2TINTERP((ub + uc + ud - (inlet_a / 2)) << 6, siner);
sawterp = ((ub + uc + ud) << 1 & ((1 << 26) - 1)) - (1 << 25);
mixf = (1 << 27) - (inlet_g & ((1 << 27) - 1));
mixg2 = ___SMMUL(mixf << 3, sawterp << 2) +
___SMMUL((inlet_g & ((1 << 27) - 1)) << 3, siner >> 4);
outlet_result = (mixg1 + mixg2) * 1.5;
;
break;
case 11:
outlet_result =
(attr_table.array[__USAT(inlet_a, 27) >> (27 - attr_table.LENGTHPOW)]
<< attr_table.GAIN)
<< 2;
;
break;
case 12:
outlet_result = 0;
;
break;
case 13:
outlet_result = 0;
;
break;
case 14:
outlet_result = 0;
;
break;
case 15:
outlet_result = 0;
;
break;
}
