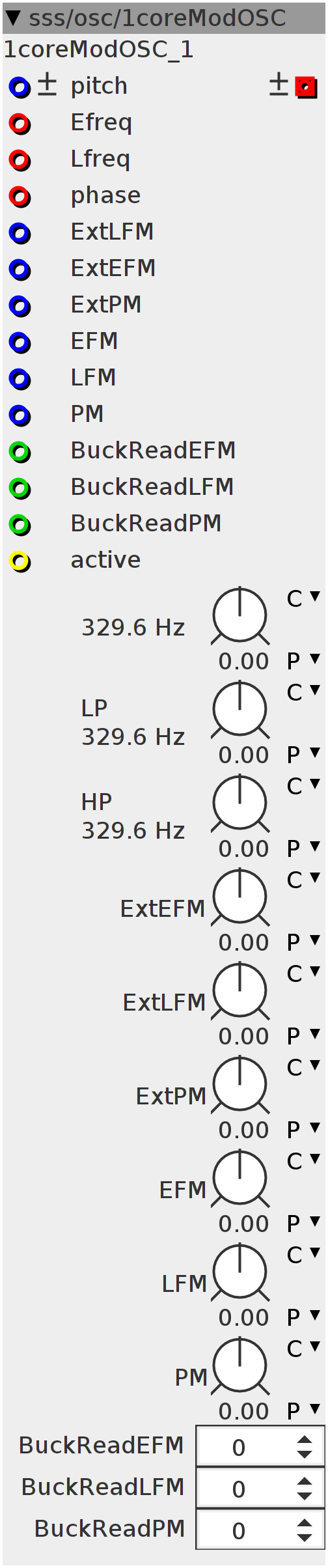

1coreModOSC

Single core oscillator featuring: -external exponential and linear FM (LFM=indexed to internally modulated frequency) and external phase modulation -internal exponential and linear FM (LFM=indexed to internal frequency) and phase modulation.
Author: Remco van der Most
License: BSD
Github: sss/osc/1coreModOSC.axo
Inlets

frac32buffer frequency

frac32buffer Lfreq

frac32buffer phase

frac32 ExtLFM

frac32 ExtEFM

frac32 ExtPM

frac32 EFM

frac32 LFM

frac32 PM

int32 BuckReadEFM

int32 BuckReadLFM

int32 BuckReadPM

bool32 active

frac32.bipolar pitch

Outlets

frac32buffer.bipolar sine wave

Parameters

frac32.s.map.pitch pitch

frac32.s.map.pitch LP

frac32.s.map.pitch HP

frac32.s.map ExtEFM

frac32.s.map ExtLFM

frac32.s.map ExtPM

frac32.s.map EFM

frac32.s.map LFM

frac32.s.map PM

int32 BuckReadEFM

int32 BuckReadLFM

int32 BuckReadPM

Declaration
uint32_t Phase;
int32_t p2;
int32_t P01;
int32_t P02;
int32_t P03;
int32_t P04;
int32_t P05;
int32_t P06;
int32_t P07;
int32_t P08;
int32_t P09;
int32_t P10;
int32_t P11;
int32_t P12;
int32_t P13;
int32_t P14;
int32_t P15;
int32_t P16;
int32_t P17;
int32_t P18;
int32_t P19;
int32_t P20;
int32_t P21;
int32_t P22;
int32_t P23;
int32_t P24;
int32_t P25;
int32_t P26;
int32_t P27;
int32_t P28;
int32_t P29;
int32_t P30;
int32_t P31;
int32_t P32;

int32_t r1;
int32_t r2;
int32_t Ar;
int32_t Fr1;
int32_t Fr2;
int32_t Fr3;
int32_t val2;
int32_t val4;
int32_t PMW;
Init
Phase = 0;
Control Rate
if (inlet_active > 0) {
  PMW = inlet_ExtPM + param_ExtPM;
}
Audio Rate
if (inlet_active > 0) {
  int32_t freq;

  MTOFEXTENDED(
      param_pitch + inlet_pitch +
          ___SMMUL((inlet_EFM + param_EFM) << 3, Fr3 >> 2) +
          ___SMMUL((inlet_ExtEFM + param_ExtEFM) << 3, inlet_Efreq << 2),
      freq);
  int32_t f;
  MTOF(param_HP + inlet_pitch + param_pitch, f);
  int32_t g;
  MTOF(param_LP + inlet_pitch + param_pitch, g);

  int32_t LFM = ___SMMUL((inlet_LFM + param_LFM) << 3, Fr2);
  int32_t ExtLFM =
      ___SMMUL((inlet_ExtLFM + param_ExtLFM) << 3, inlet_Lfreq << 2);
  int32_t OwnFrq = freq + ___SMMUL(LFM << 4, freq);
  Phase += OwnFrq + ___SMMUL(ExtLFM << 4, OwnFrq << 5);

  p2 = Phase + (___SMMUL(PMW << 3, (inlet_phase << 2)) << 4) +
       ___SMMUL((inlet_PM + param_PM) << 4, Fr1 << 1);

  SINE2TINTERP(p2, r2)
  val2 = ___SMMLA(((r2 >> 2) - val2) << 1, f, val2);
  int32_t val3 = (r2 >> 2) - val2;
  val4 = ___SMMLA((val3 - val4) << 1, g, val4);
  int32_t val5 = val4;
  P32 = P31;
  P31 = P30;
  P30 = P29;
  P29 = P28;
  P28 = P27;
  P27 = P26;
  P26 = P25;
  P25 = P24;
  P24 = P23;
  P23 = P22;
  P22 = P21;
  P21 = P20;
  P20 = P19;
  P19 = P18;
  P18 = P17;
  P17 = P16;
  P16 = P15;
  P15 = P14;
  P14 = P13;
  P13 = P12;
  P12 = P11;
  P11 = P10;
  P10 = P09;
  P09 = P08;
  P08 = P07;
  P07 = P06;
  P06 = P05;
  P05 = P04;
  P04 = P03;
  P03 = P02;
  P02 = P01;
  P01 = val5;

  switch ((inlet_BuckReadPM + param_BuckReadPM) > 0
              ? ((inlet_BuckReadPM + 1 + param_BuckReadPM))
              : 1) {
  case 0:
    Ar = p2;
    break;
  case 1:
    Ar = P01;
    break;
  case 2:
    Ar = P02;
    break;
  case 3:
    Ar = P03;
    break;
  case 4:
    Ar = P04;
    break;
  case 5:
    Ar = P05;
    break;
  case 6:
    Ar = P06;
    break;
  case 7:
    Ar = P07;
    break;
  case 8:
    Ar = P08;
    break;
  case 9:
    Ar = P09;
    break;
  case 10:
    Ar = P10;
    break;
  case 11:
    Ar = P11;
    break;
  case 12:
    Ar = P12;
    break;
  case 13:
    Ar = P13;
    break;
  case 14:
    Ar = P14;
    break;
  case 15:
    Ar = P15;
    break;
  case 16:
    Ar = P16;
    break;
  case 17:
    Ar = P17;
    break;
  case 18:
    Ar = P18;
    break;
  case 19:
    Ar = P19;
    break;
  case 20:
    Ar = P20;
    break;
  case 21:
    Ar = P21;
    break;
  case 22:
    Ar = P22;
    break;
  case 23:
    Ar = P23;
    break;
  case 24:
    Ar = P24;
    break;
  case 25:
    Ar = P25;
    break;
  case 26:
    Ar = P26;
    break;
  case 27:
    Ar = P27;
    break;
  case 28:
    Ar = P28;
    break;
  case 29:
    Ar = P29;
    break;
  case 30:
    Ar = P30;
    break;
  case 31:
    Ar = P31;
    break;
  case 32:
    Ar = P32;
    break;
  default:
    Ar = P32;
    break;
  }
  Fr1 = Ar;

  switch ((inlet_BuckReadLFM + param_BuckReadLFM) > 0
              ? ((inlet_BuckReadLFM + 1 + param_BuckReadLFM))
              : 1) {
  case 0:
    Ar = p2;
    break;
  case 1:
    Ar = P01;
    break;
  case 2:
    Ar = P02;
    break;
  case 3:
    Ar = P03;
    break;
  case 4:
    Ar = P04;
    break;
  case 5:
    Ar = P05;
    break;
  case 6:
    Ar = P06;
    break;
  case 7:
    Ar = P07;
    break;
  case 8:
    Ar = P08;
    break;
  case 9:
    Ar = P09;
    break;
  case 10:
    Ar = P10;
    break;
  case 11:
    Ar = P11;
    break;
  case 12:
    Ar = P12;
    break;
  case 13:
    Ar = P13;
    break;
  case 14:
    Ar = P14;
    break;
  case 15:
    Ar = P15;
    break;
  case 16:
    Ar = P16;
    break;
  case 17:
    Ar = P17;
    break;
  case 18:
    Ar = P18;
    break;
  case 19:
    Ar = P19;
    break;
  case 20:
    Ar = P20;
    break;
  case 21:
    Ar = P21;
    break;
  case 22:
    Ar = P22;
    break;
  case 23:
    Ar = P23;
    break;
  case 24:
    Ar = P24;
    break;
  case 25:
    Ar = P25;
    break;
  case 26:
    Ar = P26;
    break;
  case 27:
    Ar = P27;
    break;
  case 28:
    Ar = P28;
    break;
  case 29:
    Ar = P29;
    break;
  case 30:
    Ar = P30;
    break;
  case 31:
    Ar = P31;
    break;
  case 32:
    Ar = P32;
    break;
  default:
    Ar = P32;
    break;
  }
  Fr2 = Ar;

  switch ((inlet_BuckReadEFM + param_BuckReadEFM) > 0
              ? ((inlet_BuckReadEFM + param_BuckReadEFM) + 1)
              : 1) {
  case 0:
    Ar = p2;
    break;
  case 1:
    Ar = P01;
    break;
  case 2:
    Ar = P02;
    break;
  case 3:
    Ar = P03;
    break;
  case 4:
    Ar = P04;
    break;
  case 5:
    Ar = P05;
    break;
  case 6:
    Ar = P06;
    break;
  case 7:
    Ar = P07;
    break;
  case 8:
    Ar = P08;
    break;
  case 9:
    Ar = P09;
    break;
  case 10:
    Ar = P10;
    break;
  case 11:
    Ar = P11;
    break;
  case 12:
    Ar = P12;
    break;
  case 13:
    Ar = P13;
    break;
  case 14:
    Ar = P14;
    break;
  case 15:
    Ar = P15;
    break;
  case 16:
    Ar = P16;
    break;
  case 17:
    Ar = P17;
    break;
  case 18:
    Ar = P18;
    break;
  case 19:
    Ar = P19;
    break;
  case 20:
    Ar = P20;
    break;
  case 21:
    Ar = P21;
    break;
  case 22:
    Ar = P22;
    break;
  case 23:
    Ar = P23;
    break;
  case 24:
    Ar = P24;
    break;
  case 25:
    Ar = P25;
    break;
  case 26:
    Ar = P26;
    break;
  case 27:
    Ar = P27;
    break;
  case 28:
    Ar = P28;
    break;
  case 29:
    Ar = P29;
    break;
  case 30:
    Ar = P30;
    break;
  case 31:
    Ar = P31;
    break;
  case 32:
    Ar = P32;
    break;
  default:
    Ar = P32;
    break;
  }
  int32_t LOL;
  Fr3 = Ar;

  SINE2TINTERP(p2, r1)
  outlet_wave = (r1 >> 4);
}
