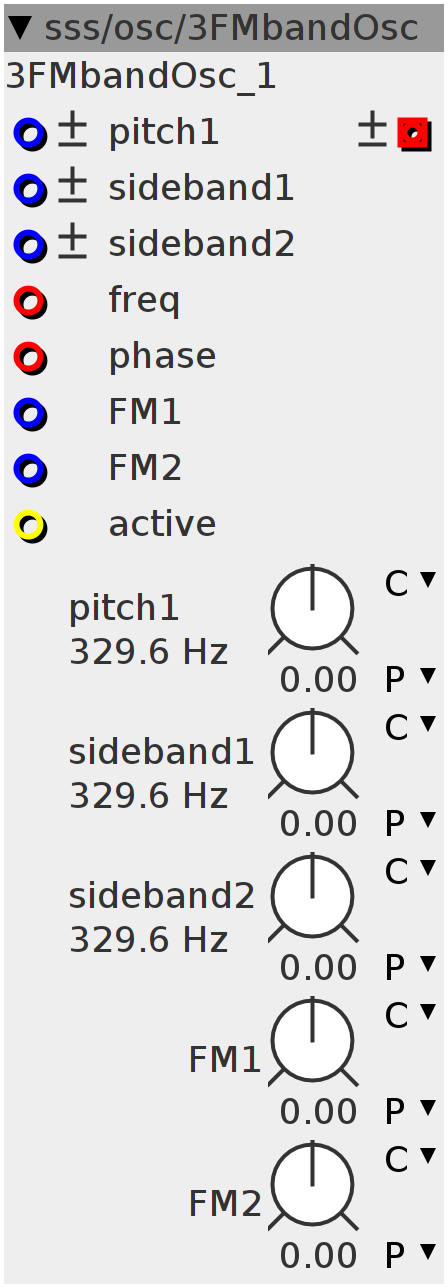

3FMbandOsc
tripple sine wave oscillator with internal frequency modulation. NOTE!!!-> sideband1 and sideband2 are sideband "goal" frequencies created by the FM! So these are not the actual rates of the oscillators!
Inlets
frac32 FM1
frac32 FM2
bool32 active
frac32.bipolar pitch1
frac32.bipolar sideband1
frac32.bipolar sideband2
frac32buffer frequency
frac32buffer phase
Outlets
frac32buffer.bipolar sine wave
Parameters
frac32.s.map.pitch pitch1
frac32.s.map.pitch sideband1
frac32.s.map.pitch sideband2
frac32.s.map FM1
frac32.s.map FM2
uint32_t Phase1;
uint32_t Phase2;
uint32_t Phase3;
int32_t freq1;
int32_t freq2;
int32_t freq3;Phase1 = 0;
Phase2 = 0;
Phase3 = 0;if (inlet_active > 0) {
MTOFEXTENDED(param_pitch1 + inlet_pitch1, freq1);
MTOFEXTENDED(param_sideband1 + inlet_sideband1, freq2);
MTOFEXTENDED(param_sideband2 + inlet_sideband2, freq3);
}if (inlet_active > 0) {
int32_t FM1 = param_FM1 + inlet_FM1;
int32_t FM2 = param_FM2 + inlet_FM2;
int32_t freqa = (freq2 - freq1);
Phase3 += freq3 - (freqa);
int32_t r3;
int32_t p3 = Phase3 + (inlet_phase << 4);
SINE2TINTERP(p3, r3)
int32_t FMW2 = ___SMMUL((r3 >> 3) + (inlet_freq << 2), FM2);
Phase2 += freqa + (___SMMUL(freqa << 3, FMW2 << 2) << 5);
int32_t r2;
int32_t p2 = Phase2 + (inlet_phase << 4);
SINE2TINTERP(p2, r2)
int32_t FMW1 = ___SMMUL((r2 >> 3) + (inlet_freq << 2), FM1);
Phase1 += freq1 + (___SMMUL(freq1 << 3, FMW1) << 5);
int32_t r1;
int32_t p1 = Phase1 + (inlet_phase << 4);
SINE2TINTERP(p1, r1)
outlet_wave = (r1 >> 4);
}
