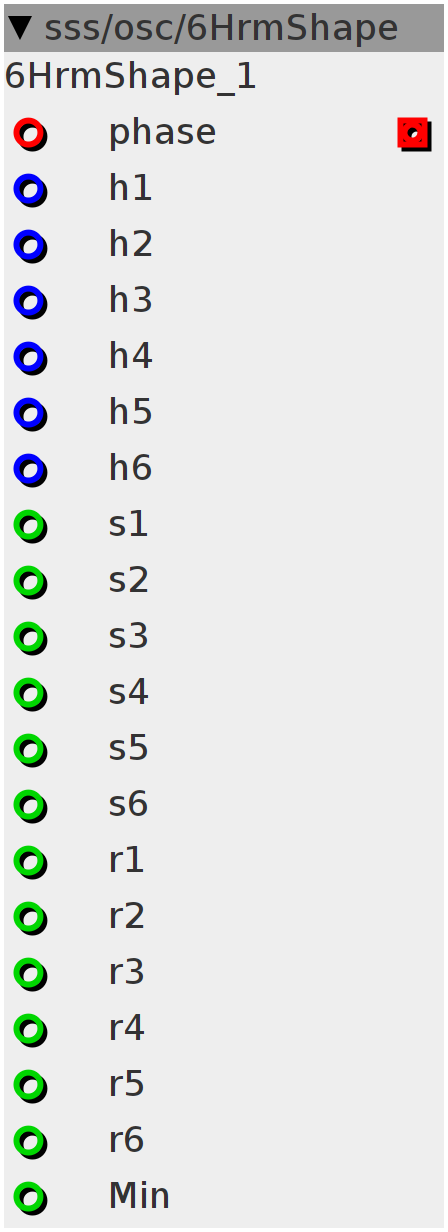

6HrmShape
Harmonic sine morph shaper. Asks lots of cpu, but very nice for drones.
Inlets
int32 harmonic morph Stepsize 1
int32 harmonic morph Stepsize 2
int32 harmonic morph Stepsize 3
int32 harmonic morph Stepsize 4
int32 harmonic morph Stepsize 5
int32 harmonic morph Stepsize 6
int32 harmonic max Range 1
int32 harmonic max Range 2
int32 harmonic max Range 3
int32 harmonic max Range 4
int32 harmonic max Range 5
int32 harmonic max Range 6
int32 harmonic minimum (root=1)
frac32buffer oscillator phasor input
frac32 Harmonic position 1
frac32 Harmonic position 2
frac32 Harmonic position 3
frac32 Harmonic position 4
frac32 Harmonic position 5
frac32 Harmonic position 6
Outlets
frac32buffer o1
int32_t a1;
int32_t b1;
int32_t c1;
int32_t d1;
int32_t r11;
int32_t r21;
int32_t s11;
int32_t s21;
int32_t a2;
int32_t b2;
int32_t c2;
int32_t d2;
int32_t r12;
int32_t r22;
int32_t s12;
int32_t s22;
int32_t a3;
int32_t b3;
int32_t c3;
int32_t d3;
int32_t r13;
int32_t r23;
int32_t s13;
int32_t s23;
int32_t a4;
int32_t b4;
int32_t c4;
int32_t d4;
int32_t r14;
int32_t r24;
int32_t s14;
int32_t s24;
int32_t a5;
int32_t b5;
int32_t c5;
int32_t d5;
int32_t r15;
int32_t r25;
int32_t s15;
int32_t s25;
int32_t a6;
int32_t b6;
int32_t c6;
int32_t d6;
int32_t r16;
int32_t r26;
int32_t s16;
int32_t s26;
int32_t x1;
int32_t x2;
int32_t x3;
int32_t x4;
int32_t x5;
int32_t x6;c1 = (inlet_h1 - ((inlet_h1 >> 21) << 21));
d1 = ((1 << 21) - c1);
s11 = (inlet_Min + ((inlet_h1 >> 21) * inlet_s1 & ((inlet_r1)-1)));
s21 = (inlet_Min + (((inlet_h1 >> 21) + 1) * inlet_s1 & ((inlet_r1)-1)));
c2 = (inlet_h2 - ((inlet_h2 >> 21) << 21));
d2 = ((1 << 21) - c2);
s12 = (inlet_Min + ((inlet_h2 >> 21) * inlet_s2 & ((inlet_r2)-1)));
s22 = (inlet_Min + (((inlet_h2 >> 21) + 1) * inlet_s2 & ((inlet_r2)-1)));
c3 = (inlet_h3 - ((inlet_h3 >> 21) << 21));
d3 = ((1 << 21) - c3);
s13 = (inlet_Min + ((inlet_h3 >> 21) * inlet_s3 & ((inlet_r3)-1)));
s23 = (inlet_Min + (((inlet_h3 >> 21) + 1) * inlet_s3 & ((inlet_r3)-1)));
c4 = (inlet_h4 - ((inlet_h4 >> 21) << 21));
d4 = ((1 << 21) - c4);
s14 = (inlet_Min + ((inlet_h4 >> 21) * inlet_s4 & ((inlet_r4)-1)));
s24 = (inlet_Min + (((inlet_h4 >> 21) + 1) * inlet_s4 & ((inlet_r4)-1)));
c5 = (inlet_h5 - ((inlet_h5 >> 21) << 21));
d5 = ((1 << 21) - c5);
s11 = (inlet_Min + ((inlet_h1 >> 21) * inlet_s1 & ((inlet_r1)-1)));
s21 = (inlet_Min + (((inlet_h1 >> 21) + 1) * inlet_s1 & ((inlet_r1)-1)));
c6 = (inlet_h6 - ((inlet_h6 >> 21) << 21));
d6 = ((1 << 21) - c6);
s11 = (inlet_Min + ((inlet_h1 >> 21) * inlet_s1 & ((inlet_r1)-1)));
s21 = (inlet_Min + (((inlet_h1 >> 21) + 1) * inlet_s1 & ((inlet_r1)-1)));a1 = inlet_phase * s11;
b1 = inlet_phase * s21;
SINE2TINTERP(a1 << 5, r11)
SINE2TINTERP(b1 << 5, r21)
x1 = (___SMMUL((r11), (d1 << 7) / ((s11 - 1) / 2 + 1)) +
___SMMUL((r21), (c1 << 7)) / ((s21 - 1) / 2 + 1)) >>
2;
a2 = inlet_phase * s12;
b2 = inlet_phase * s22;
SINE2TINTERP(a2 << 5, r12)
SINE2TINTERP(b2 << 5, r22)
x2 = (___SMMUL((r12), (d2 << 7) / ((s12 - 1) / 2 + 1)) +
___SMMUL((r22), (c2 << 7)) / ((s22 - 1) / 2 + 1)) >>
2;
a3 = inlet_phase * s13;
b3 = inlet_phase * s23;
SINE2TINTERP(a3 << 5, r13)
SINE2TINTERP(b3 << 5, r23)
x3 = (___SMMUL((r13), (d3 << 7) / ((s13 - 1) / 2 + 1)) +
___SMMUL((r23), (c3 << 7)) / ((s23 - 1) / 2 + 1)) >>
2;
a4 = inlet_phase * s14;
b4 = inlet_phase * s24;
SINE2TINTERP(a4 << 5, r14)
SINE2TINTERP(b4 << 5, r24)
x4 = (___SMMUL((r14), (d4 << 7) / ((s14 - 1) / 2 + 1)) +
___SMMUL((r24), (c4 << 7)) / ((s24 - 1) / 2 + 1)) >>
2;
a5 = inlet_phase * s15;
b5 = inlet_phase * s25;
SINE2TINTERP(a5 << 5, r15)
SINE2TINTERP(b5 << 5, r25)
x5 = (___SMMUL((r15), (d5 << 7) / ((s15 - 1) / 2 + 1)) +
___SMMUL((r25), (c5 << 7)) / ((s25 - 1) / 2 + 1)) >>
2;
a6 = inlet_phase * s16;
b6 = inlet_phase * s26;
SINE2TINTERP(a6 << 5, r16)
SINE2TINTERP(b6 << 5, r26)
x6 = (___SMMUL((r16), (d6 << 7) / ((s16 - 1) / 2 + 1)) +
___SMMUL((r26), (c6 << 7)) / ((s26 - 1) / 2 + 1)) >>
2;
outlet_o1 = x1 + x2 + x3 + x4 + x5 + x6;
