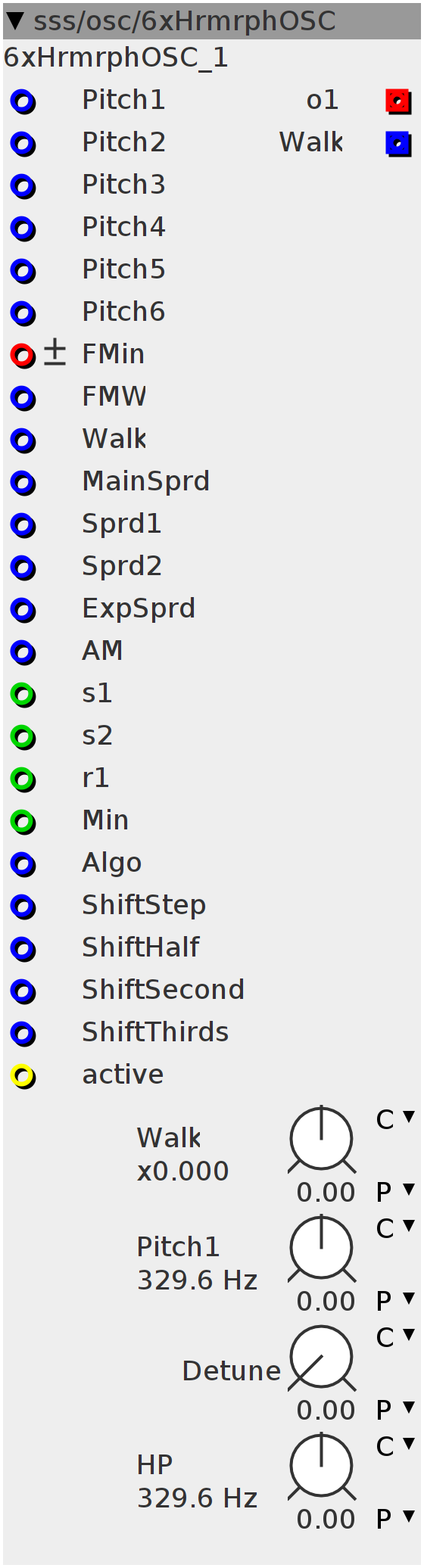

6xHrmrphOSC

$\text{[math]}$

Massive spectral harmonic&FM morphing oscillator

Author: Remco van der most

License: BSD

Github: sss/osc/6xHrmrphOSC.axo

Inlets

frac32 Pitch for oscillator 1

frac32 Pitch for oscillator 2

frac32 Pitch for oscillator 3

frac32 Pitch for oscillator 4

frac32 Pitch for oscillator 5

frac32 Pitch for oscillator 6

frac32 Frequency Modulation Index Width

frac32 Harmonic position 1

frac32 Harmonic position 2

frac32 Harmonic position 3

frac32 Harmonic position 4

frac32 Harmonic position 5

frac32 Harmonic position 6

frac32 FM Algorithm main source selection position

frac32 FM Algorithm source selection offset. Offsets each selector relative to the previous

frac32 FM Algorithm source selection offset. Offsets selector 4, 5 and 6.

frac32 FM Algorithm source selection offset. Offsets 2, 4 and 6.

frac32 FM Algorithm source selection offset. Offsets 2, 3, 5 and 6.

frac32buffer.bipolar Input for external FM oscillator

int32 harmonic morph Stepsize 1

int32 harmonic morph Stepsize 2

int32 harmonic max Range 1

int32 harmonic minimum (1)

bool32 active

Outlets

frac32buffer o1

frac32 Walk

Parameters

frac32.s.map.ratio Walk

frac32.s.map.pitch Pitch1

frac32.s.map.pitch HP

frac32.u.map Detune

Declaration

// morph parameters
int32_t a1;
int32_t b1;
int32_t c1;
int32_t d1;
int32_t r11;
int32_t r21;
int32_t s11;
int32_t s21;
int32_t a2;
int32_t b2;
int32_t c2;
int32_t d2;
int32_t r12;
int32_t r22;
int32_t s12;
int32_t s22;
int32_t a3;
int32_t b3;
int32_t c3;
int32_t d3;
int32_t r13;
int32_t r23;
int32_t s13;
int32_t s23;
int32_t a4;
int32_t b4;
int32_t c4;
int32_t d4;
int32_t r14;
int32_t r24;
int32_t s14;
int32_t s24;
int32_t a5;
int32_t b5;
int32_t c5;
int32_t d5;
int32_t r15;
int32_t r25;
int32_t s15;
int32_t s25;
int32_t a6;
int32_t b6;
int32_t c6;
int32_t d6;
int32_t r16;
int32_t r26;
int32_t s16;
int32_t s26;
int32_t x1;
int32_t x2;
int32_t x3;
int32_t x4;
int32_t x5;
int32_t x6;
uint32_t phase;
uint32_t trace;
// oscillators
uint32_t Phase1a;
uint32_t Phase2a;
uint32_t Phase3a;
uint32_t Phase4a;
uint32_t Phase5a;
uint32_t Phase6a;
uint32_t Phase1b;
uint32_t Phase2b;
uint32_t Phase3b;
uint32_t Phase4b;
uint32_t Phase5b;
uint32_t Phase6b;
int32_t Detune;
// FM
int32_t FM;
int32_t SO1;
int32_t SO2;
int32_t SO3;
int32_t SO4;
int32_t SO5;
int32_t SO6;
int32_t TO;
uint32_t freq1;
uint32_t freq2;
uint32_t freq3;
uint32_t freq4;
uint32_t freq5;
uint32_t freq6;
int32_t AlgoX;
int32_t algoM;
int32_t algo2;
int32_t algo3;
int32_t algo4;
int32_t algo5;
int32_t algo6;
int32_t r;
int32_t frq;
int32_t val1;
int32_t val2;
int32_t val3;
int32_t val4;
int32_t val5;
int32_t val6;
int32_t val7;
int32_t aG;
int32_t bG;
int32_t cG;
int32_t dG;
int k11;
int k21;
int k12;
int k22;
int k13;
int k23;
int k14;
int k24;
int k15;
int k25;
int k16;
int k26;
int32_t sa1;
int32_t sb1;
int32_t sa2;
int32_t sb2;
int32_t sa3;
int32_t sb3;
int32_t sa4;
int32_t sb4;
int32_t sa5;
int32_t sb5;
int32_t sa6;
int32_t sb6;
int32_t freq;
int32_t base;
int32_t mainspread;
int32_t spread1;
int32_t spread2;
int32_t expo;
int32_t AM;
int32_t ms1;
int32_t ms2;
int32_t ms3;
int32_t ms4;
int32_t ms5;
int32_t n2;
int32_t n3;
int32_t n4;
int32_t n5;
int32_t n6;
int32_t ofs;

Init

trace = 0;
Phase1a = 0;
Phase2a = 0;
Phase3a = 0;
Phase4a = 0;
Phase5a = 0;
Phase6a = 0;
Phase1b = 0;
Phase2b = 0;
Phase3b = 0;
Phase4b = 0;
Phase5b = 0;
Phase6b = 0;

Control Rate

if (inlet_active > 0) {

  freq = param_Walk + (inlet_Walk);
  trace += freq >> 8;
  outlet_Walk = trace >> 5;

  base = ((trace >> 5) / 32 * (inlet_r1)) << 1;
  mainspread = inlet_MainSprd;
  spread1 = inlet_Sprd1;
  spread2 = inlet_Sprd2;
  expo = inlet_ExpSprd;
  AM = inlet_AM;
  ms1 = mainspread;
  ms2 = mainspread * 2;
  ms3 = mainspread * 3;
  ms4 = mainspread * 4;
  ms5 = mainspread * 5;
  n2 = (base + ms1 - spread2);
  n3 = (base + ms2 + spread2 + (expo ^ 2));
  n4 = (base + ms3 + spread1 - spread2 + (expo ^ 3));
  n5 = (base + ms4 + spread1 + (expo ^ 4));
  n6 = (base + ms5 + spread1 + spread2 + (expo ^ 5));
  ofs = inlet_s1;

  c1 = ((base) - (((base) >> 21) << 21));
  d1 = ((1 << 21) - c1);
  sa1 = ((((base) >> 21) * inlet_s1));
  sb1 = (((((base) >> 21) + 1) * inlet_s1));
  if (sa1 >= 0)
    k11 = ((unsigned int)sa1) / inlet_r1;
  else
    k11 = -(((unsigned int)(inlet_r1 - sa1)) / inlet_r1);
  s11 = inlet_Min + sa1 - (k11 * inlet_r1);
  if (sb1 >= 0)
    k21 = ((unsigned int)sb1) / inlet_r1;
  else
    k21 = -(((unsigned int)(inlet_r1 - sb1)) / inlet_r1);
  s21 = inlet_Min + sb1 - (k21 * inlet_r1);

  c2 = ((n2) - (((n2) >> 21) << 21));
  d2 = ((1 << 21) - c2);
  sa2 = ((((n2) >> 21) * (inlet_s2 + ofs)));
  sb2 = (((((n2) >> 21) + 1) * (inlet_s2 + ofs)));
  if (sa2 >= 0)
    k12 = ((unsigned int)sa2) / inlet_r1;
  else
    k12 = -(((unsigned int)(inlet_r1 - sa2)) / inlet_r1);
  s12 = inlet_Min + sa2 - (k12 * inlet_r1);
  if (sb2 >= 0)
    k22 = ((unsigned int)sb2) / inlet_r1;
  else
    k22 = -(((unsigned int)(inlet_r1 - sb2)) / inlet_r1);
  s22 = inlet_Min + sb2 - (k22 * inlet_r1);

  c3 = ((n3) - (((n3) >> 21) << 21));
  d3 = ((1 << 21) - c3);
  sa3 = ((((n3) >> 21) * (inlet_s2 * 2 + ofs)));
  sb3 = (((((n3) >> 21) + 1) * (inlet_s2 * 2 + ofs)));
  if (sa3 >= 0)
    k13 = ((unsigned int)sa3) / inlet_r1;
  else
    k13 = -(((unsigned int)(inlet_r1 - sa3)) / inlet_r1);
  s13 = inlet_Min + sa3 - (k13 * inlet_r1);
  if (sb3 >= 0)
    k23 = ((unsigned int)sb3) / inlet_r1;
  else
    k23 = -(((unsigned int)(inlet_r1 - sb3)) / inlet_r1);
  s23 = inlet_Min + sb3 - (k23 * inlet_r1);

  c4 = ((n4) - (((n4) >> 21) << 21));
  d4 = ((1 << 21) - c4);
  sa4 = ((((n4) >> 21) * (inlet_s2 * 3 + ofs)));
  sb4 = (((((n4) >> 21) + 1) * (inlet_s2 * 3 + ofs)));
  if (sa4 >= 0)
    k14 = ((unsigned int)sa4) / inlet_r1;
  else
    k14 = -(((unsigned int)(inlet_r1 - sa4)) / inlet_r1);
  s14 = inlet_Min + sa4 - (k14 * inlet_r1);
  if (sb4 >= 0)
    k24 = ((unsigned int)sb4) / inlet_r1;
  else
    k24 = -(((unsigned int)(inlet_r1 - sb4)) / inlet_r1);
  s24 = inlet_Min + sb4 - (k24 * inlet_r1);

  c5 = ((n5) - (((n5) >> 21) << 21));
  d5 = ((1 << 21) - c5);
  sa5 = ((((n5) >> 21) * (inlet_s2 * 4 + ofs)));
  sb5 = (((((n5) >> 21) + 1) * (inlet_s2 * 4 + ofs)));
  if (sa5 >= 0)
    k15 = ((unsigned int)sa5) / inlet_r1;
  else
    k15 = -(((unsigned int)(inlet_r1 - sa5)) / inlet_r1);
  s15 = inlet_Min + sa5 - (k15 * inlet_r1);
  if (sb5 >= 0)
    k25 = ((unsigned int)sb5) / inlet_r1;
  else
    k25 = -(((unsigned int)(inlet_r1 - sb5)) / inlet_r1);
  s25 = inlet_Min + sb5 - (k25 * inlet_r1);

  c6 = ((n6) - (((n6) >> 21) << 21));
  d6 = ((1 << 21) - c6);
  sa6 = ((((n6) >> 21) * (inlet_s2 * 5 + ofs)));
  sb6 = (((((n6) >> 21) + 1) * (inlet_s2 * 5 + ofs)));
  if (sa6 >= 0)
    k16 = ((unsigned int)sa6) / inlet_r1;
  else
    k16 = -(((unsigned int)(inlet_r1 - sa6)) / inlet_r1);
  s16 = inlet_Min + sa6 - (k16 * inlet_r1);
  if (sb6 >= 0)
    k26 = ((unsigned int)sb6) / inlet_r1;
  else
    k26 = -(((unsigned int)(inlet_r1 - sb6)) / inlet_r1);
  s26 = inlet_Min + sb6 - (k26 * inlet_r1);

  // oscillators
  Detune = (param_Detune >> 5);
  MTOFEXTENDED(param_Pitch1 + inlet_Pitch1, freq1);
  MTOFEXTENDED(param_Pitch1 + Detune + inlet_Pitch2, freq2);
  MTOFEXTENDED(param_Pitch1 + Detune * 2 + inlet_Pitch3, freq3);
  MTOFEXTENDED(param_Pitch1 + Detune * 3 + inlet_Pitch4, freq4);
  MTOFEXTENDED(param_Pitch1 + Detune * 4 + inlet_Pitch5, freq5);
  MTOFEXTENDED(param_Pitch1 + Detune * 5 + inlet_Pitch6, freq6);

  // FM distribution
  AlgoX = inlet_Algo;
  if (AlgoX >= 0)
    r = ((unsigned int)AlgoX) / (1 << 27);
  else
    r = -(((unsigned int)((1 << 27) - AlgoX)) / (1 << 27));
  algoM = AlgoX - (r * (1 << 27));

  AlgoX = inlet_Algo + inlet_ShiftStep + inlet_ShiftSecond + inlet_ShiftThirds;
  if (AlgoX >= 0)
    r = ((unsigned int)AlgoX) / (1 << 27);
  else
    r = -(((unsigned int)((1 << 27) - AlgoX)) / (1 << 27));
  algo2 = AlgoX - (r * (1 << 27));

  AlgoX = inlet_Algo + inlet_ShiftStep * 2 + inlet_ShiftThirds;
  if (AlgoX >= 0)
    r = ((unsigned int)AlgoX) / (1 << 27);
  else
    r = -(((unsigned int)((1 << 27) - AlgoX)) / (1 << 27));
  algo3 = AlgoX - (r * (1 << 27));

  AlgoX =
      inlet_Algo + inlet_ShiftHalf + inlet_ShiftStep * 3 + inlet_ShiftSecond;
  if (AlgoX >= 0)
    r = ((unsigned int)AlgoX) / (1 << 27);
  else
    r = -(((unsigned int)((1 << 27) - AlgoX)) / (1 << 27));
  algo4 = AlgoX - (r * (1 << 27));

  AlgoX =
      inlet_Algo + inlet_ShiftHalf + inlet_ShiftStep * 4 + inlet_ShiftThirds;
  if (AlgoX >= 0)
    r = ((unsigned int)AlgoX) / (1 << 27);
  else
    r = -(((unsigned int)((1 << 27) - AlgoX)) / (1 << 27));
  algo5 = AlgoX - (r * (1 << 27));

  AlgoX = inlet_Algo + inlet_ShiftHalf + inlet_ShiftStep * 5 +
          inlet_ShiftSecond + inlet_ShiftThirds;
  if (AlgoX >= 0)
    r = ((unsigned int)AlgoX) / (1 << 27);
  else
    r = -(((unsigned int)((1 << 27) - AlgoX)) / (1 << 27));
  algo6 = AlgoX - (r * (1 << 27));

  // HP-filter FM

  MTOF(param_HP, frq);
}

Audio Rate

if (inlet_active > 0) {
  // oscillators

  // osc1
  FM = ___SMMUL((SO1 + (inlet_FMin >> 3)) << 3, freq1 << 6);
  FM = ___SMMUL(FM << 3, inlet_FMW << 2);
  Phase1a += freq1 + FM;
  Phase1b = Phase1a >> 5;
  // osc2
  FM = ___SMMUL((SO2 + (inlet_FMin >> 3)) << 3, freq2 << 6);
  FM = ___SMMUL(FM << 3, inlet_FMW << 2);
  Phase2a += freq2 + FM;
  Phase2b = Phase2a >> 5;
  // osc3
  FM = ___SMMUL((SO3 + (inlet_FMin >> 3)) << 3, freq3 << 6);
  FM = ___SMMUL(FM << 3, inlet_FMW << 2);
  Phase3a += freq3 + FM;
  Phase3b = Phase3a >> 5;
  // osc4
  FM = ___SMMUL((SO4 + (inlet_FMin >> 3)) << 3, freq4 << 6);
  FM = ___SMMUL(FM << 3, inlet_FMW << 2);
  Phase4a += freq4 + FM;
  Phase4b = Phase4a >> 5;
  // osc5
  FM = ___SMMUL((SO5 + (inlet_FMin >> 3)) << 3, freq5 << 6);
  FM = ___SMMUL(FM << 3, inlet_FMW << 2);
  Phase5a += freq5 + FM;
  Phase5b = Phase5a >> 5;
  // osc6
  FM = ___SMMUL((SO6 + (inlet_FMin >> 3)) << 3, freq6 << 6);
  FM = ___SMMUL(FM << 3, inlet_FMW << 2);
  Phase6a += freq6 + FM;
  Phase6b = Phase6a >> 5;

  // Harmonic morphing

  a1 = Phase1b * s11;
  b1 = Phase1b * s21;
  SINE2TINTERP(a1 << 5, r11)
  SINE2TINTERP(b1 << 5, r21)
  x1 = ((___SMMUL((r11), (d1 << 7)) + ___SMMUL((r21), (c1 << 7))) >> 2);

  a2 = Phase2b * s12;
  b2 = Phase2b * s22;
  SINE2TINTERP(a2 << 5, r12)
  SINE2TINTERP(b2 << 5, r22)
  x2 = ___SMMUL((___SMMUL((r12), (d2 << 7)) + ___SMMUL((r22), (c2 << 7))) << 1,
                (14 << 25));

  a3 = Phase3b * s13;
  b3 = Phase3b * s23;
  SINE2TINTERP(a3 << 5, r13)
  SINE2TINTERP(b3 << 5, r23)
  x3 = ___SMMUL((___SMMUL((r13), (d3 << 7)) + ___SMMUL((r23), (c3 << 7))) << 1,
                (12 << 25));

  a4 = Phase4b * s14;
  b4 = Phase4b * s24;
  SINE2TINTERP(a4 << 5, r14)
  SINE2TINTERP(b4 << 5, r24)
  x4 = ___SMMUL((___SMMUL((r14), (d4 << 7)) + ___SMMUL((r24), (c4 << 7))) << 1,
                (10 << 25));

  a5 = Phase5b * s15;
  b5 = Phase5b * s25;
  SINE2TINTERP(a5 << 5, r15)
  SINE2TINTERP(b5 << 5, r25)
  x5 = ___SMMUL((___SMMUL((r15), (d5 << 7)) + ___SMMUL((r25), (c5 << 7))) << 1,
                (8 << 25));

  a6 = Phase6b * s16;
  b6 = Phase6b * s26;
  SINE2TINTERP(a6 << 5, r16)
  SINE2TINTERP(b6 << 5, r26)
  x6 = ___SMMUL((___SMMUL((r16), (d6 << 7)) + ___SMMUL((r26), (c6 << 7))) << 1,
                (6 << 25));
  int32_t ring1 = ___SMMUL(x1 << 4, x2 << 4);
  int32_t ring2 = ___SMMUL(x3 << 4, x4 << 4);
  int32_t ring3 = ___SMMUL(x5 << 4, x6 << 4);
  int32_t ring4 = ___SMMUL(ring1 << 3, ring2 << 3) + ring1 + ring2;
  int32_t ring5 = ___SMMUL(ring4 << 3, ring3 << 3) + ring4 + ring3;
  TO = (x1 + x2 + x3 + x4 + x5 + x6 + ___SMMUL(ring5 << 2, AM << 3)) >> 2;
  val7 = ___SMMLA((TO - val7) << 1, frq, val7);
  outlet_o1 = TO - val7;

  // FM1
  switch (int(algoM >> 24) > 0 ? algoM >> 24 : 0) {
  case 0:
    aG = 0;
    break;
  case 1:
    aG = x1;
    break;
  case 2:
    aG = x2;
    break;
  case 3:
    aG = x3;
    break;
  case 4:
    aG = x4;
    break;
  case 5:
    aG = x5;
    break;
  case 6:
    aG = x6;
    break;
  case 7:
    aG = ring5 >> 4;
    break;
  default:
    aG = 0;
    break;
  }
  switch (int(algoM >> 24) > 0 ? algoM >> 24 : 0) {
  case 0:
    bG = x1;
    break;
  case 1:
    bG = x2;
    break;
  case 2:
    bG = x3;
    break;
  case 3:
    bG = x4;
    break;
  case 4:
    bG = x5;
    break;
  case 5:
    bG = x6;
    break;
  case 6:
    bG = ring5 >> 4;
    break;
  case 7:
    bG = 0;
    break;
  default:
    bG = x1;
    break;
  }
  cG = algoM - ((algoM >> 24) << 24);
  dG = (1 << 24) - cG;
  SO1 = ___SMMUL(dG << 4, aG << 4) + ___SMMUL(cG << 4, bG << 4);

  val1 = ___SMMLA((SO1 - val1) << 1, frq, val1);
  SO1 = SO1 - val1;

  // FM2
  switch (int(algo2 >> 24) > 0 ? algo2 >> 24 : 0) {
  case 0:
    aG = 0;
    break;
  case 1:
    aG = x1;
    break;
  case 2:
    aG = x2;
    break;
  case 3:
    aG = x3;
    break;
  case 4:
    aG = x4;
    break;
  case 5:
    aG = x5;
    break;
  case 6:
    aG = x6;
    break;
  case 7:
    aG = ring5 >> 3;
    break;
  default:
    aG = 0;
    break;
  }
  switch (int(algo2 >> 24) > 0 ? algo2 >> 24 : 0) {
  case 0:
    bG = x1;
    break;
  case 1:
    bG = x2;
    break;
  case 2:
    bG = x3;
    break;
  case 3:
    bG = x4;
    break;
  case 4:
    bG = x5;
    break;
  case 5:
    bG = x6;
    break;
  case 6:
    bG = ring5 >> 4;
    break;
  case 7:
    bG = 0;
    break;
  default:
    bG = x1;
    break;
  }
  cG = algo2 - ((algo2 >> 24) << 24);
  dG = (1 << 24) - cG;
  SO2 = ___SMMUL(dG << 4, aG << 4) + ___SMMUL(cG << 4, bG << 4);

  val2 = ___SMMLA((SO2 - val2) << 1, frq, val2);
  SO2 = SO2 - val2;

  // FM3
  switch (int(algo3 >> 24) > 0 ? algo3 >> 24 : 0) {
  case 0:
    aG = 0;
    break;
  case 1:
    aG = x1;
    break;
  case 2:
    aG = x2;
    break;
  case 3:
    aG = x3;
    break;
  case 4:
    aG = x4;
    break;
  case 5:
    aG = x5;
    break;
  case 6:
    aG = x6;
    break;
  case 7:
    aG = ring5 >> 4;
    break;
  default:
    aG = 0;
    break;
  }
  switch (int(algo3 >> 24) > 0 ? algo3 >> 24 : 0) {
  case 0:
    bG = x1;
    break;
  case 1:
    bG = x2;
    break;
  case 2:
    bG = x3;
    break;
  case 3:
    bG = x4;
    break;
  case 4:
    bG = x5;
    break;
  case 5:
    bG = x6;
    break;
  case 6:
    bG = ring5 >> 4;
    break;
  case 7:
    bG = 0;
    break;
  default:
    bG = x1;
    break;
  }
  cG = algo3 - ((algo3 >> 24) << 24);
  dG = (1 << 24) - cG;
  SO3 = ___SMMUL(dG << 4, aG << 4) + ___SMMUL(cG << 4, bG << 4);

  val3 = ___SMMLA((SO3 - val3) << 1, frq, val3);
  SO3 = SO3 - val3;

  // FM4
  switch (int(algo4 >> 24) > 0 ? algo4 >> 24 : 0) {
  case 0:
    aG = 0;
    break;
  case 1:
    aG = x1;
    break;
  case 2:
    aG = x2;
    break;
  case 3:
    aG = x3;
    break;
  case 4:
    aG = x4;
    break;
  case 5:
    aG = x5;
    break;
  case 6:
    aG = x6;
    break;
  case 7:
    aG = ring5 >> 4;
    break;
  default:
    aG = 0;
    break;
  }
  switch (int(algo4 >> 24) > 0 ? algo4 >> 24 : 0) {
  case 0:
    bG = x1;
    break;
  case 1:
    bG = x2;
    break;
  case 2:
    bG = x3;
    break;
  case 3:
    bG = x4;
    break;
  case 4:
    bG = x5;
    break;
  case 5:
    bG = x6;
    break;
  case 6:
    bG = ring5 >> 4;
    break;
  case 7:
    bG = 0;
    break;
  default:
    bG = x1;
    break;
  }
  cG = algo4 - ((algo4 >> 24) << 24);
  dG = (1 << 24) - cG;
  SO4 = ___SMMUL(dG << 4, aG << 4) + ___SMMUL(cG << 4, bG << 4);

  val4 = ___SMMLA((SO4 - val4) << 1, frq, val4);
  SO4 = SO4 - val4;

  // FM5
  switch (int(algo5 >> 24) > 0 ? algo5 >> 24 : 0) {
  case 0:
    aG = 0;
    break;
  case 1:
    aG = x1;
    break;
  case 2:
    aG = x2;
    break;
  case 3:
    aG = x3;
    break;
  case 4:
    aG = x4;
    break;
  case 5:
    aG = x5;
    break;
  case 6:
    aG = x6;
    break;
  case 7:
    aG = ring5 >> 4;
    break;
  default:
    aG = 0;
    break;
  }
  switch (int(algo5 >> 24) > 0 ? algo5 >> 24 : 0) {
  case 0:
    bG = x1;
    break;
  case 1:
    bG = x2;
    break;
  case 2:
    bG = x3;
    break;
  case 3:
    bG = x4;
    break;
  case 4:
    bG = x5;
    break;
  case 5:
    bG = x6;
    break;
  case 6:
    bG = ring5 >> 4;
    break;
  case 7:
    bG = 0;
    break;
  default:
    bG = x1;
    break;
  }
  cG = algo5 - ((algo5 >> 24) << 24);
  dG = (1 << 24) - cG;
  SO5 = ___SMMUL(dG << 4, aG << 4) + ___SMMUL(cG << 4, bG << 4);

  val5 = ___SMMLA((SO5 - val5) << 1, frq, val5);
  SO5 = SO5 - val5;

  // FM6
  switch (int(algo6 >> 24) > 0 ? algo6 >> 24 : 0) {
  case 0:
    aG = 0;
    break;
  case 1:
    aG = x1;
    break;
  case 2:
    aG = x2;
    break;
  case 3:
    aG = x3;
    break;
  case 4:
    aG = x4;
    break;
  case 5:
    aG = x5;
    break;
  case 6:
    aG = x6;
    break;
  case 7:
    aG = ring5 >> 4;
    break;
  default:
    aG = 0;
    break;
  }
  switch (int(algo6 >> 24) > 0 ? algo6 >> 24 : 0) {
  case 0:
    bG = x1;
    break;
  case 1:
    bG = x2;
    break;
  case 2:
    bG = x3;
    break;
  case 3:
    bG = x4;
    break;
  case 4:
    bG = x5;
    break;
  case 5:
    bG = x6;
    break;
  case 6:
    bG = ring5 >> 4;
    break;
  case 7:
    bG = 0;
    break;
  default:
    bG = x1;
    break;
  }
  cG = algo6 - ((algo6 >> 24) << 24);
  dG = (1 << 24) - cG;
  SO6 = ___SMMUL(dG << 4, aG << 4) + ___SMMUL(cG << 4, bG << 4);

  val6 = ___SMMLA((SO6 - val6) << 1, frq, val6);
  SO6 = SO6 - val6;
}
