DX7

DX7-style 6-operator FM oscillator
Author: Remco van der Most
License: BSD
Github: sss/osc/DX7.axo

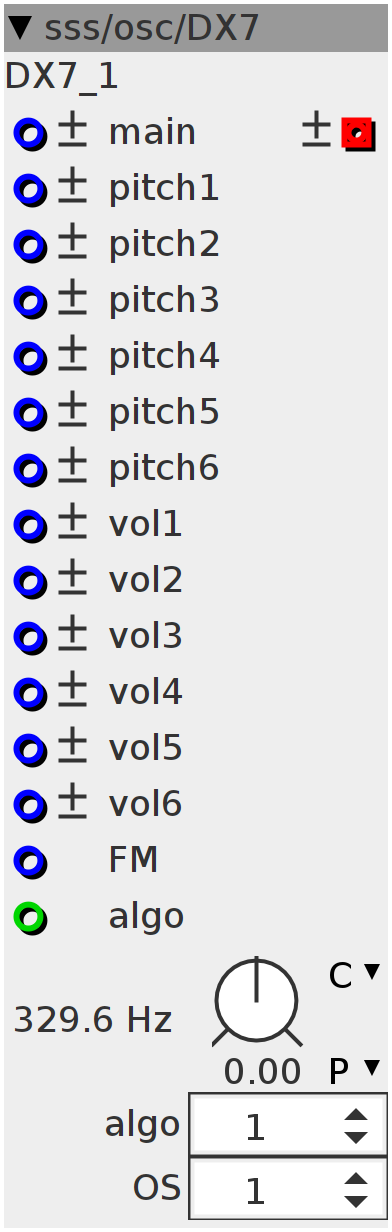

Inlets

frac32.bipolar main

frac32.bipolar pitch

frac32.bipolar pitch2

frac32.bipolar pitch3

frac32.bipolar pitch4

frac32.bipolar pitch5

frac32.bipolar pitch6

frac32.bipolar vol1

frac32.bipolar vol2

frac32.bipolar vol3

frac32.bipolar vol4

frac32.bipolar vol5

frac32.bipolar vol6

frac32 FM

int32 algo

Outlets

frac32buffer.bipolar sine wave

Parameters

int32 algo

int32 OS

frac32.s.map.pitch pitch

Declaration
uint32_t Phase[6];
int32_t hp[6];
int32_t am[6];
int32_t fm[6];
int32_t wave[6];
int32_t out;
int i;
int32_t freq[6];
int32_t MODE(int mode) {
  switch (mode) {
  case 0:
    out = wave[0] + wave[2];
    fm[0] = wave[1];
    fm[2] = wave[3];
    fm[3] = wave[4];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 1:
    out = wave[0] + wave[2];
    fm[0] = wave[1];
    fm[1] = wave[1];
    fm[2] = wave[3];
    fm[3] = wave[4];
    fm[4] = wave[5];
    ;
    break;
  case 2:
    out = wave[0] + wave[3];
    fm[0] = wave[1];
    fm[1] = wave[2];
    fm[3] = wave[4];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 3:
    out = wave[0] + wave[3];
    fm[0] = wave[1];
    fm[1] = wave[2];
    fm[3] = wave[4];
    fm[4] = wave[5];
    fm[5] = wave[3];
    ;
    break;
  case 4:
    out = wave[0] + wave[2] + wave[4];
    fm[0] = wave[1];
    fm[2] = wave[3];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 5:
    out = wave[0] + wave[2] + wave[4];
    fm[0] = wave[1];
    fm[2] = wave[3];
    fm[3] = wave[4];
    fm[4] = wave[5];
    fm[5] = wave[4];
    ;
    break;
  case 6:
    out = wave[0] + wave[2];
    fm[0] = wave[1];
    fm[2] = wave[3] + wave[4];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 7:
    out = wave[0] + wave[2];
    fm[0] = wave[1];
    fm[2] = wave[3] + wave[4];
    fm[3] = wave[4];
    fm[4] = wave[5];
    ;
    break;
  case 8:
    out = wave[0] + wave[2];
    fm[0] = wave[1];
    fm[1] = wave[1];
    fm[2] = wave[3] + wave[4];
    fm[4] = wave[5];
    ;
    break;
  case 9:
    out = wave[0] + wave[3];
    fm[0] = wave[1];
    fm[1] = wave[2];
    fm[2] = wave[2];
    fm[3] = wave[4] + wave[5];
    ;
    break;
  case 10:
    out = wave[0] + wave[3];
    fm[0] = wave[1];
    fm[1] = wave[2];
    fm[3] = wave[4] + wave[5];
    fm[5] = wave[4];
    ;
    break;
  case 11:
    out = wave[0] + wave[2];
    fm[0] = wave[1];
    fm[1] = wave[1];
    fm[2] = wave[3] + wave[4] + wave[5];
    ;
    break;
  case 12:
    out = wave[0] + wave[2];
    fm[0] = wave[1];
    fm[1] = wave[1];
    fm[2] = wave[3] + wave[4] + wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 13:
    out = wave[0] + wave[2];
    fm[0] = wave[1];
    fm[2] = wave[3];
    fm[3] = wave[4] + wave[5];
    fm[5] = wave[4] + wave[5];
    ;
    break;
  case 14:
    out = wave[0] + wave[2];
    fm[0] = wave[1];
    fm[1] = wave[1];
    fm[2] = wave[3];
    fm[3] = wave[4] + wave[5];
    ;
    break;
  case 15:
    out = wave[0];
    fm[0] = wave[1] + wave[2] + wave[3];
    fm[2] = wave[3];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 16:
    out = wave[0];
    fm[0] = wave[1] + wave[2] + wave[4];
    fm[1] = wave[1];
    fm[2] = wave[3];
    fm[4] = wave[5];
    ;
    break;
  case 17:
    out = wave[0];
    fm[0] = wave[1] + wave[2] + wave[3];
    fm[2] = wave[2] + wave[3];
    fm[3] = wave[4];
    fm[4] = wave[5];
    ;
    break;
  case 18:
    out = wave[0] + wave[3] + wave[4];
    fm[0] = wave[1];
    fm[1] = wave[2];
    fm[3] = wave[5];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 19:
    out = wave[0] + wave[1] + wave[3];
    fm[0] = wave[2];
    fm[1] = wave[2];
    fm[2] = wave[2];
    fm[3] = wave[4] + wave[5];
    ;
    break;
  case 20:
    out = wave[0] + wave[1] + wave[3] + wave[4];
    fm[0] = wave[2];
    fm[1] = wave[2];
    fm[2] = wave[2];
    fm[3] = wave[5];
    fm[4] = wave[5];
    ;
    break;
  case 21:
    out = wave[0] + wave[2] + wave[3] + wave[4];
    fm[0] = wave[1];
    fm[2] = wave[5];
    fm[3] = wave[5];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 22:
    out = wave[0] + wave[1] + wave[3] + wave[4];
    fm[1] = wave[2];
    fm[2] = wave[2];
    fm[3] = wave[5];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 23:
    out = wave[0] + wave[1] + wave[2] + wave[3] + wave[4];
    fm[2] = wave[5];
    fm[3] = wave[5];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 24:
    out = wave[0] + wave[1] + wave[2] + wave[3] + wave[4];
    fm[3] = wave[5];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 25:
    out = wave[0] + wave[1] + wave[3];
    fm[1] = wave[2];
    fm[3] = wave[4] + wave[5];
    fm[5] = wave[5] + wave[4];
    ;
    break;
  case 26:
    out = wave[0] + wave[1] + wave[3];
    fm[1] = wave[2];
    fm[2] = wave[2];
    fm[3] = wave[4] + wave[5];
    ;
    break;
  case 27:
    out = wave[0] + wave[2] + wave[5];
    fm[0] = wave[1];
    fm[2] = wave[3];
    fm[3] = wave[4];
    fm[4] = wave[4];
    ;
    break;
  case 28:
    out = wave[0] + wave[1] + wave[2] + wave[4];
    fm[2] = wave[3];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 29:
    out = wave[0] + wave[1] + wave[2] + wave[5];
    fm[2] = wave[3];
    fm[3] = wave[4];
    fm[4] = wave[4];
    ;
    break;
  case 30:
    out = wave[0] + wave[1] + wave[2] + wave[3] + wave[4];
    fm[4] = wave[5];
    fm[5] = wave[5];
    ;
    break;
  case 31:
    out = wave[0] + wave[1] + wave[2] + wave[3] + wave[4] + wave[5];
    fm[5] = wave[5];
    ;
    break;
  }
}
int32_t SOFT(int32_t in) {
  int32_t ts = __SSAT(in, 28);
  int32_t tsq31 = ts << 3;
  int32_t tsq31p3 = ___SMMUL(tsq31, ___SMMUL(tsq31, tsq31));
  return ts = ts + (ts >> 1) - (tsq31p3);
}
int32_t prv;
int32_t LP;
int32_t prev[6];
Init
Phase[i] = 0;
Control Rate
int32_t pitch = param_pitch + inlet_main;
MTOFEXTENDED(pitch + inlet_pitch1, freq[0]);
MTOFEXTENDED(pitch + inlet_pitch2, freq[1]);
MTOFEXTENDED(pitch + inlet_pitch3, freq[2]);
MTOFEXTENDED(pitch + inlet_pitch4, freq[3]);
MTOFEXTENDED(pitch + inlet_pitch5, freq[4]);
MTOFEXTENDED(pitch + inlet_pitch6, freq[5]);
for (i = 0; i < 6; i++) {
  freq[i] = freq[i] / (param_OS);
}

int32_t algo = (param_algo - 1 + inlet_algo) & 31;
am[0] = inlet_vol1;
am[1] = inlet_vol2;
am[2] = inlet_vol3;
am[3] = inlet_vol4;
am[4] = inlet_vol5;
am[5] = inlet_vol6;

int32_t step = inlet_FM - prv;
int32_t Fm = prv;
prv = inlet_FM;
int32_t stp[6];
int32_t Am[6];
for (i = 0; i < 6; i++) {
  stp[i] = am[i] - prev[i];
  Am[i] = prev[i];
  prev[i] = am[i];
}
Audio Rate
for (int j = 0; j < param_OS; j++) {
  for (i = 0; i < 6; i++) {
    fm[i] = ___SMMUL(fm[i], __SSAT(Fm, 27)) << 5;
    Phase[i] += freq[i] + (___SMMUL(fm[i], freq[i]) << 7);
    fm[i] = 0;
    int32_t r;
    SINE2TINTERP(Phase[i], r)
    wave[i] = ___SMMUL(Am[i], r);
  }
  MODE(algo);
  LP += (SOFT(out) - LP) >> 1;
  Am[i] += stp[i];
}
outlet_wave = LP;
Fm += step;
