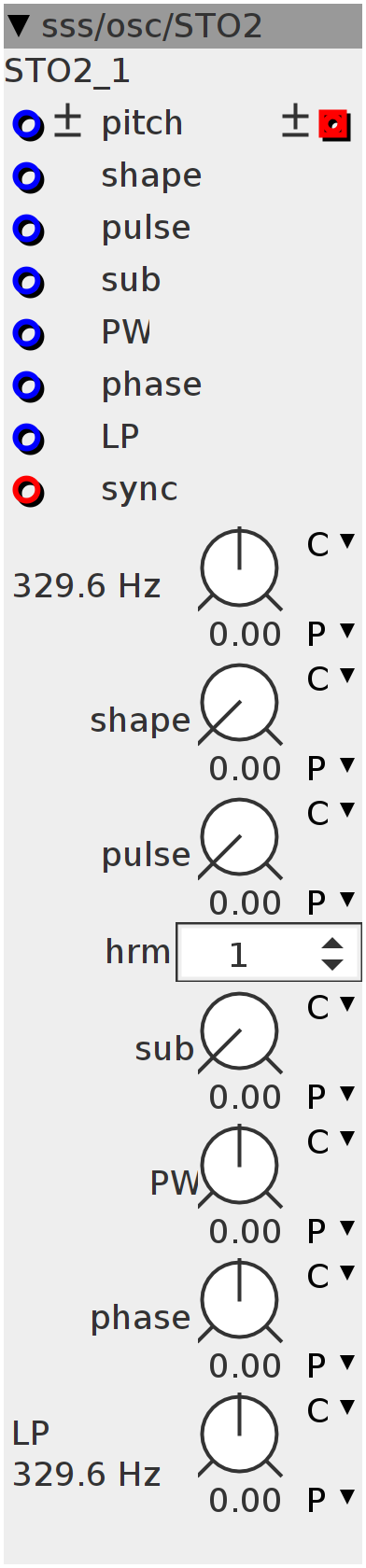

STO2
sine wave oscillator
Inlets
frac32buffer sync
frac32.bipolar pitch
frac32 shape
frac32 pulse
frac32 sub
frac32 PW
frac32 phase
frac32 LP
Outlets
frac32buffer.bipolar sine wave
Parameters
frac32.u.map shape
frac32.u.map pulse
frac32.u.map sub
int32 hrm
frac32.s.map PW
frac32.s.map phase
frac32.s.map.pitch pitch
frac32.s.map.pitch LP
uint32_t Phase;
int32_t prev1;
int32_t step1;
int32_t prev2;
int32_t step2;
int32_t prev3;
int32_t step3;
int rtrig;
int32_t SQ;
int32_t sq;
int strig;Phase = 0;
SQ = 0;int32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
freq = freq;
int32_t shape = inlet_shape + param_shape;
shape = shape & ((1 << 28) - 1);
shape = shape > (1 << 27) ? (1 << 28) - shape : shape;
step1 = (shape - prev1) >> 4;
int32_t i1 = prev1;
prev1 = shape;
step2 = (freq - prev2) >> 4;
int32_t i2 = prev2;
prev2 = freq;
int32_t F;
MTOF(param_pitch + inlet_pitch + param_LP + (inlet_LP << 1), F);
int32_t sub = -param_sub + inlet_sub;
uint64_t pulse = (1 << 27) - param_pulse - inlet_pulse;
pulse = pulse & ((1 << 28) - 1);
pulse = pulse > (1 << 27) ? (1 << 28) - pulse : pulse;
float32_t ratio = (float32_t)(1 << 27) / pulse;
pulse = pulse << 5;
int32_t O = param_PW + inlet_PW << 4;
step3 = (O - prev3) >> 4;
int32_t i3 = prev3;
prev3 = O;
int32_t p3 = (param_phase + inlet_phase << 5) / param_hrm;if ((inlet_sync > 0) && !strig) {
strig = 1;
Phase = 0;
} else if (inlet_sync == 0) {
strig = 0;
}
i1 += step1;
i2 += step2;
i3 += step3;
Phase += i2;
int32_t r1;
int32_t r2;
uint32_t p1 = Phase * param_hrm;
int32_t p2 = Phase + p3;
p1 = p1 > pulse ? pulse : p1;
p1 = p1 * ratio;
SINE2TINTERP(p1, r1)
r2 = p1 + (1 << 30);
// if((p2>0)&&!rtrig){
// rtrig=1;
// sq+=1;
// sq=sq&1;
//}
// else if(p2<0){rtrig=0;}
sq = p2 > i3 ? 1 : 0;
r2 = r2 > 0 ? r2 : -r2;
r2 = (r2) - (1 << 30);
int32_t temp = sq > 0 ? sub : -sub;
SQ = ___SMMLA((temp - SQ) << 1, F, SQ);
r1 = ___SMMUL((r1 >> 1), ((1 << 27) - i1) << 2) + ___SMMUL(r2, i1 << 2);
outlet_wave = (r1 + SQ) >> 1;
