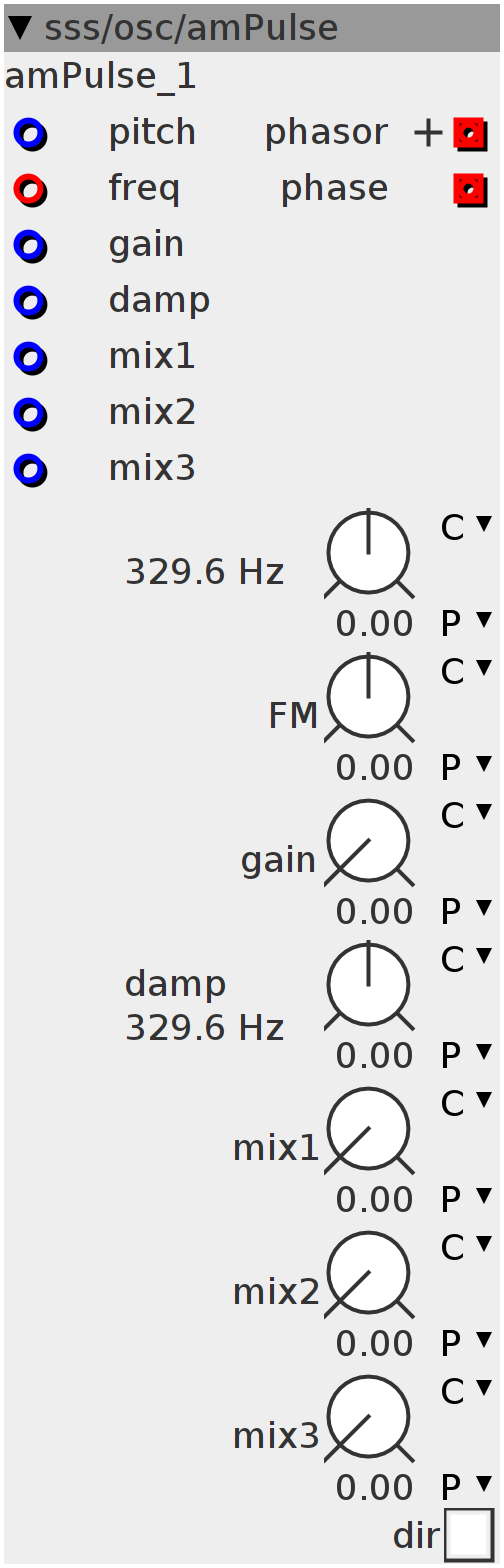

amPulse
Saw/Sine & Sine AM oscillator. frequency response of the sine can be made non-linear by adding gain, this simulates as if the signal is spinning into a black-hole, the closer the saw gets to zero. This response can be inverted with the "dir" button. "Damp" dampens the signal (1st order LP filter) "mix1" mixes from an 1st order exponential response to a next order exponential response->see "mix2" "mix2" sets the "next" response, between 2nd order and 3rd order exponential. "mix3" mixes between saw and sine response for the AM part, softening overtones with the sine-variant.
Inlets
frac32 pitch
frac32 gain
frac32 damp
frac32 mix1
frac32 mix2
frac32 mix3
frac32buffer phase increment
Outlets
frac32buffer.positive phasor wave
frac32buffer phase
Parameters
bool32.tgl dir
frac32.s.map.pitch pitch
frac32.s.map.pitch damp
frac32.s.map FM
frac32.u.map gain
frac32.u.map mix1
frac32.u.map mix2
frac32.u.map mix3
uint32_t Phase;
int32_t val;
int i;
int j;Phase = 0;uint32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
freq = freq >> 1;
int32_t FM = ___SMMUL(freq, param_FM << 3) << 2;
int32_t f;
MTOF(param_damp + inlet_damp, f)
f = f >> 1;
int32_t gain = inlet_gain + param_gain;
int32_t mix1 = __USAT(inlet_mix1 + param_mix1, 27);
int32_t mix3 = __USAT(inlet_mix2 + param_mix2, 27);
int32_t mix2 = __USAT(inlet_mix3 + param_mix3, 27);int32_t phase;
uint32_t phose;
for (i = 0; i < 2; i++) {
Phase += (freq >> 0) + (___SMMUL(inlet_freq << 4, FM) << 3);
int32_t sine;
uint32_t PHASE = Phase >> 5;
if (param_dir > 0) {
PHASE = (1 << 27) - PHASE;
}
PHASE = ___SMMUL(PHASE << 3, PHASE << 2);
uint32_t PHase = ___SMMUL(PHASE << 3, PHASE << 2);
// PHase=___SMMUL(PHase<<3,PHase<<2);
PHase = ___SMMUL((1 << 27) - mix3 << 3, PHase << 2) +
___SMMUL(mix3 << 3, ___SMMUL(PHase << 3, PHase << 2) << 2);
PHase = ___SMMUL((1 << 27) - mix1 << 3, PHASE << 2) +
___SMMUL(mix1 << 3, PHase << 2);
SINE2TINTERP((Phase << 0) + (___SMMUL(gain << 3, PHase) << 10), sine)
phose = (1 << 32) - Phase >> 5;
SINE2TINTERP(Phase - (1 << 30), phase)
phase = (phase >> 5) + (1 << 26);
phase = ___SMMUL((1 << 27) - mix2 << 3, phose << 2) +
___SMMUL(mix2 << 3, phase << 2);
val = ___SMMLA((___SMMUL(phase, sine) - val) << 1, f, val);
}
outlet_phasor = val;
outlet_phase = phase - (1 << 26);
