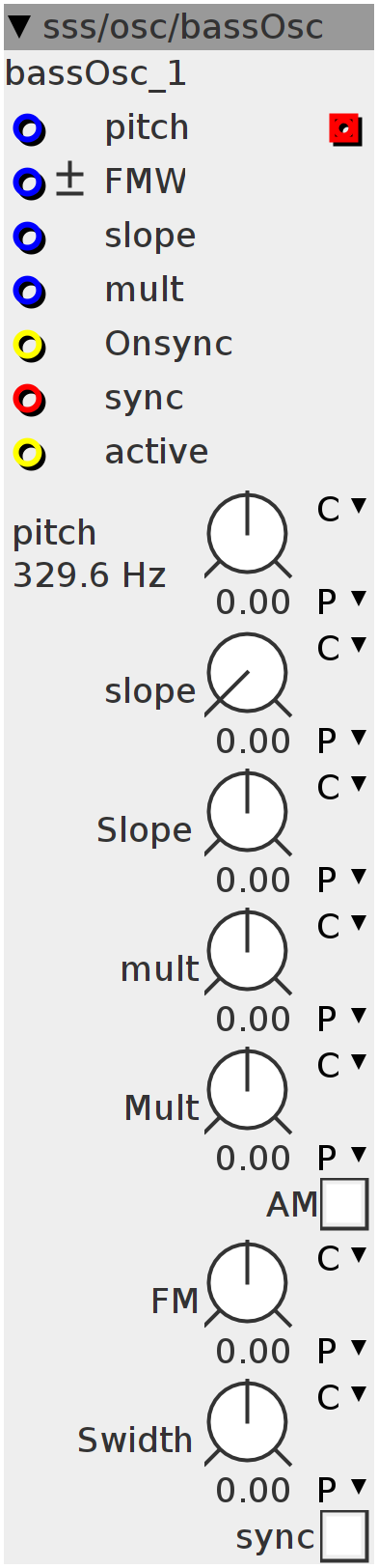

bassOsc
tri/saw oscillator with added sine ringmodulation for vowel-like or bass sounds
Inlets
frac32 pitch
frac32 slope
frac32 mult
frac32.bipolar FMW
bool32 Onsync
bool32 active
frac32buffer sync
Outlets
frac32buffer out
Parameters
frac32.s.map.pitch pitch
frac32.u.map slope
frac32.s.map Slope
frac32.s.map mult
frac32.s.map Mult
frac32.s.map FM
frac32.s.map Swidth
bool32.tgl AM
bool32.tgl sync
uint32_t Phase;
float32_t slope1n;
uint64_t slope1d;
uint64_t slope1e;
int32_t out;
int32_t sine;
int32_t Slope;
int32_t Fmw;
int32_t FMW;
int ttrig;
int32_t freq;
int32_t fmw;
int32_t sine1;
int32_t sine2;
int32_t mult;
int32_t Mult;if (inlet_active > 0) {
MTOF(param_pitch + inlet_pitch, freq)
fmw = __SSAT(param_FM + inlet_FMW, 29);
Mult = ___SMMUL((param_Mult) << 3, inlet_mult << 2) + param_mult;
}if (inlet_active > 0) {
if (((inlet_sync && (param_sync || inlet_Onsync)) > 0) && (!(ttrig == 1))) {
ttrig = 1;
Phase = 0;
} else if (inlet_sync < 0) {
ttrig = 0;
}
int32_t slape =
__SSAT(param_slope + ___SMMUL((inlet_slope) << 3, param_Slope << 2) +
___SMMUL(inlet_sync << 3, param_Swidth << 2),
28);
Slope = Slope + ((slape - Slope) >> 8);
Fmw = Fmw + ((fmw - Fmw) >> 6);
FMW = ___SMMUL(inlet_sync << 4, (Fmw) << 2);
Phase += freq + ___SMMUL(FMW << 4, freq << 4);
slope1d = (1 << 27) - Slope;
if (Phase < (Slope << 5)) {
slope1n = ((float)((1 << 31))) / ((float)(Slope));
out = ((Phase >> 5) * slope1n) + (1 << 30);
} else {
slope1n = ((float)((1 << 31))) / ((float)(slope1d));
out = -(((Phase - (Slope << 5)) >> 5) * slope1n) - (1 << 30);
}
mult = mult + ((Mult - mult) >> 8);
SINE2TINTERP((___SMMUL(out + (1 << 31), mult << 4) << 6) + (3 << 30), sine1)
SINE2TINTERP((___SMMUL(-out + (1 << 31), mult << 4) << 6) - (3 << 30), sine2)
outlet_out =
___SMMUL((((out >> 3)) + ___SMMUL(((out >> 4) + (1 << 27)), sine2) +
___SMMUL((1 << 28) - ((out >> 4) + (1 << 27)), sine1)),
((param_AM < 1 ? (1 << 28) : 0) +
___SMMUL(inlet_sync << 3, param_AM > 0 ? (1 << 30) : 0)))
<< 3;
}
