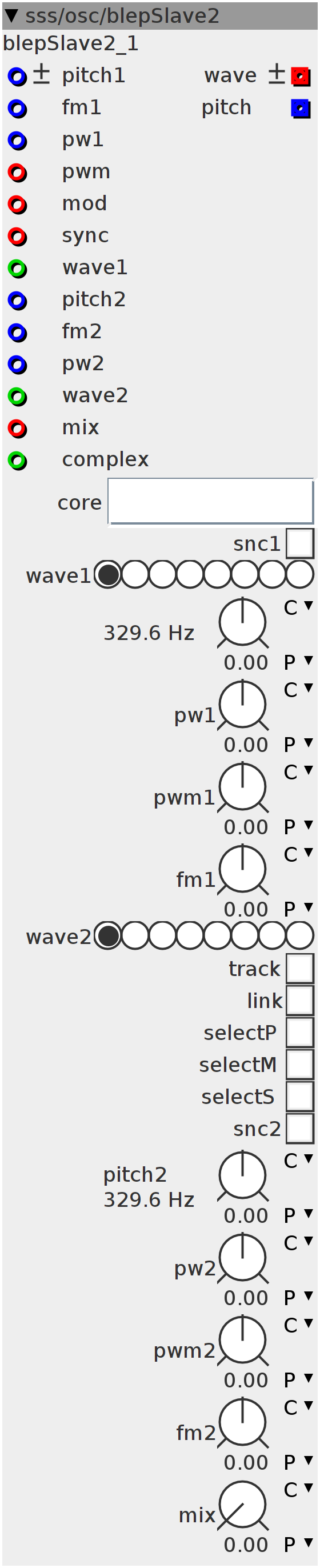

blepSlave2

Multi wave oscillator with sync and FM modulation Bandwith limited
Author: Remco van der Most
License: BSD
Github: sss/osc/blepSlave2.axo

Inlets

frac32buffer pwm

frac32buffer mod

frac32buffer sync, resets oscillator phase on rising zero-crossing

frac32buffer mix

int32 wave1

int32 wave2

int32 functions as binairy on/off selection for the toggle switch functions

frac32.bipolar pitch

frac32 fm1

frac32 pw1

frac32 pitch2

frac32 fm2

frac32 pw2

Outlets

frac32buffer.bipolar saw wave, anti-aliased

frac32 pitch

Parameters

frac32.u.map mix

bool32.tgl snc1

bool32.tgl link to pitch1 input

bool32.tgl link to pitch1 parameter

bool32.tgl on=external

bool32.tgl on=external

bool32.tgl on=external

bool32.tgl snc2

int32.hradio wave1

int32.hradio wave2

frac32.s.map.pitch pitch1

frac32.s.map.pitch pitch2

frac32.s.map pulse width for pulse oscillator mode (5)

frac32.s.map pulse width modulation width for pulse oscillator mode (5)

frac32.s.map fm1

frac32.s.map pulse width for pulse oscillator mode (5)

frac32.s.map pulse width modulation width for pulse oscillator mode (5)

frac32.s.map fm2

Attributes

objref core

Declaration
int32_t osc_p[2];
uint32_t uosc_p[2];
static const int blepvoices = 8;
const int16_t *uoscp[2][blepvoices];
int16_t *oscp[2][blepvoices];
int32_t vgain[2][blepvoices];
uint32_t nextvoice[2];
int32_t pwmp[2], ppwm[2];
;
int32_t i0[2];
int32_t sync[BUFSIZE];
int i;
int k;
int wave[2];
int32_t hp[2];
int32_t pitch[2];
bool snc[2];
int32_t fm[2];
int32_t v27 = 1 << 27;
int32_t vi28 = (1 << 28) - 1;
int32_t Pwm[2];
int32_t SQRT(int32_t in) {
  int32_t ai = in;
  float aif = ai;
  aif *= (1 << 27);
  aif = _VSQRTF(aif);
  return (int)aif;
}
Init
int j;
for (i = 0; i < 2; i++) {
  for (j = 0; j < blepvoices; j++) {
    oscp[i][j] = &blept[BLEPSIZE - 1];
    nextvoice[i] = 0;
    i0[i] = 0;
  }
}
Control Rate
// put parameters into pairs
wave[0] = (param_wave1 + inlet_wave1);
wave[1] = (param_wave2 + inlet_wave2);
pitch[0] = param_pitch1 + inlet_pitch1;
pitch[1] =
    param_pitch2 + inlet_pitch2 +
    ((param_track || ((inlet_complex >> 2) & 1)) > 0 ? inlet_pitch1 : 0) +
    ((param_link || ((inlet_complex >> 3) & 1)) > 0 ? param_pitch1 : 0);
snc[0] = param_snc1 || (inlet_complex & 1);
snc[1] = param_snc2 || ((inlet_complex >> 1) & 1);
fm[0] = __SSAT(param_fm1 + inlet_fm1, 28) << 3;
fm[1] = __SSAT(param_fm2 + inlet_fm2, 28) << 3;

Pwm[0] += (param_pw1 + inlet_pw1) - Pwm[0] >> 6;
Pwm[1] += (param_pw2 + inlet_pw2) - Pwm[1] >> 6;
int32_t stp[2], PW[2];

for (k = 0; k < 2; k++) {
  // smooth pwm control
  stp[k] = Pwm[k] - ppwm[k] >> 4;
  PW[k] = ppwm[k];
  ppwm[k] = Pwm[k];
}

for (k = 0; k < 2; k++) {
  wave[k] = (wave[k] > 0 ? wave[k] : -wave[k]) % 8;

  // update oscillator blep memory
  for (i = 0; i < blepvoices; i++) {
    attr_core.oscp[i] = oscp[k][i];
    attr_core.uoscp[i] = uoscp[k][i];
    attr_core.vgain[i] = vgain[k][i];
  }

  // update oscillator modulation inputs
  for (i = 0; i < BUFSIZE; i++) {
    attr_core.sync[i] =
        snc[k] > 0 ? (k > 0 ? ((param_selectS || ((inlet_complex >> 6) & 1)) > 0
                                   ? inlet_sync[i]
                                   : sync[i])
                            : inlet_sync[i])
                   : 0;
    int32_t md =
        ___SMMUL((k > 0 ? ((param_selectM || ((inlet_complex >> 4) & 1)) > 0
                               ? inlet_mod[i]
                               : attr_core.wave[i])
                        : inlet_mod[i])
                     << 2,
                 fm[k]);
    hp[k] += md - hp[k] >> 8;
    attr_core.mod[i] = md - hp[k];
    if (wave[k] >= 4) {
      attr_core.Pwm[i] =
          PW[k] +
          ___SMMUL(((k > 0 ? ((param_selectP || ((inlet_complex >> 5) & 1)) > 0
                                  ? inlet_pwm[i]
                                  : attr_core.wave[i])
                           : inlet_pwm[i]))
                       << 1,
                   (k > 0 ? param_pwm2 : param_pwm1) << 4);
    }
    PW[k] += stp[k];
  }

  // update oscillator internal memory eg. last phase position from former loop
  attr_core.i0 = i0[k];
  attr_core.osc_p = osc_p[k];
  attr_core.uosc_p = uosc_p[k];
  attr_core.nextvoice = nextvoice[k];
  attr_core.pwmp = pwmp[k];

  // select oscillator model
  switch (wave[k]) {
  case 0:
    attr_core.OSC_SIN(pitch[k]);
    break;
  case 1:
    attr_core.OSC_TRI(pitch[k]);
    break;
  case 2:
    attr_core.OSC_SAW(pitch[k]);
    break;
  case 3:
    attr_core.OSC_SQR(pitch[k]);
    break;
  case 4:
    attr_core.OSC_PLS(pitch[k]);
    break;
  case 5:
    attr_core.OSC_VOW(pitch[k]);
    break;
  case 6:
    attr_core.OSC_HRM(pitch[k]);
    break;
  case 7:
    attr_core.OSC_NSI(pitch[k]);
    break;
  }
  // get oscillator audio output
  for (i = 0; i < BUFSIZE; i++) {
    int32_t mix = param_mix + inlet_mix[i];
    mix = (mix > 0 ? mix : -mix) & vi28;
    mix = (__USAT(mix, 27) << 1) - mix;
    int32_t imix = v27 - mix;
    imix = SQRT(imix) << 3;
    mix = SQRT(mix) << 3;
    if (k == 0) {
      outlet_wave[i] = ___SMMUL(attr_core.wave[i] << 2, imix);
      sync[i] = param_selectS > 0 ? inlet_sync[i] : attr_core.wave[i];
    } else if (k > 0) {
      outlet_wave[i] += ___SMMUL(attr_core.wave[i] << 2, mix);
    }
  }

  // get oscillator blep memory
  for (i = 0; i < blepvoices; i++) {
    oscp[k][i] = attr_core.oscp[i];
    uoscp[k][i] = attr_core.uoscp[i];
    vgain[k][i] = attr_core.vgain[i];
  }
  // get oscillator internal memory eg. last phase position
  i0[k] = attr_core.i0;
  osc_p[k] = attr_core.osc_p;
  uosc_p[k] = attr_core.uosc_p;
  nextvoice[k] = attr_core.nextvoice;
  pwmp[k] = attr_core.pwmp;
}
outlet_pitch = param_pitch1 + inlet_pitch1;
