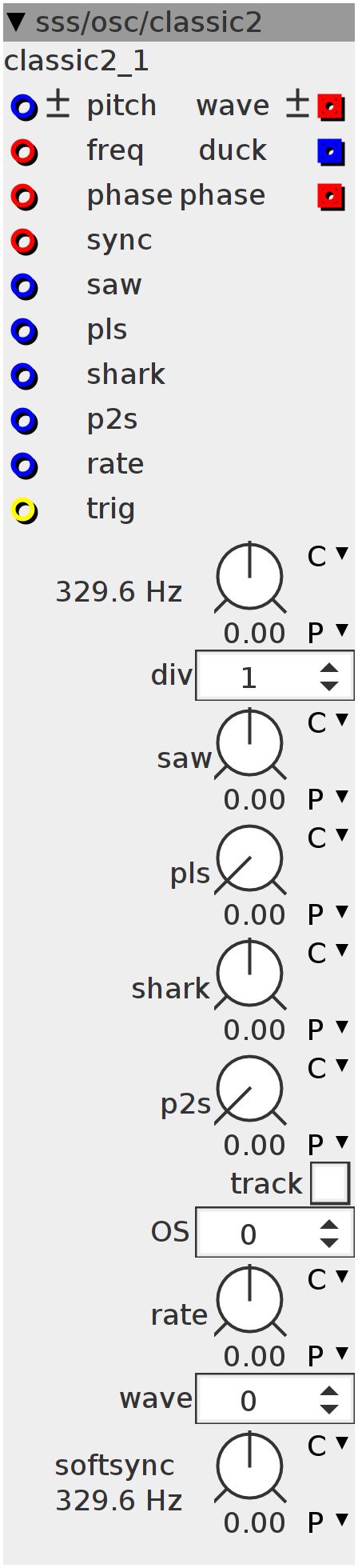

classic2
sine wave based internal PM/FM oscillator Though the knobs tell their independent function when the rest is set to zero, there is a lot of cross-influencing between the wave-morphs.
Inlets
frac32.bipolar pitch
frac32buffer frequency
frac32buffer phase
frac32buffer sync
frac32 saw
frac32 pls
frac32 shark
frac32 p2s
frac32 rate
bool32 trig
Outlets
frac32buffer.bipolar sine wave
frac32 duck
frac32buffer phase
Parameters
frac32.s.map.pitch pitch
frac32.s.map.pitch softsync
int32 sets frequency-division for sub-harmonics
int32 OS
int32 wave
frac32.s.map saw-wave amount: feeds the output back into the phase of the sineshaper. creating a saw-wave. The higher the amount, the weirder the other parameters behave!
frac32.s.map shark-wave amount, flatens/steepens the frequency roll-off
frac32.s.map rate
frac32.u.map pulse-wave: multiplies the phase of the pulse, creating a strong frequency peak in the higher harmonics
frac32.u.map changes phase position of the shark, turning it from square-like to peak-like (expo triangle)
bool32.tgl track
int i, snc;
uint32_t Phase;
int32_t sync;
int32_t phs;
int32_t r;
int32_t t1;
int32_t t2;
int32_t t3;
int32_t t4;
int32_t val;
int32_t hp;
int32_t vil;
int32_t pv[4];
int32_t stp[4];
int32_t v26 = (1 << 26);
int32_t v27 = (1 << 27);
int32_t v28 = (1 << 28);
int32_t v29 = (1 << 29);
int32_t v30 = (1 << 30);
int32_t Phs;
int32_t SHAPE(int32_t P, int md) {
switch (md) {
case 0:
Phs = P;
break;
case 1:
Phs = -P;
break;
case 2:
Phs = P > 0 ? P : -P;
break;
case 3:
SINE2TINTERP(P, Phs);
break;
case 4:
Phs = P > 0 ? (1 << 30) : -(1 << 30);
break;
}
}
bool trg;Phase = 0;int32_t freq;
int32_t rate;
MTOF(param_softsync, rate)
int32_t pitch = __SSAT(param_pitch + inlet_pitch, 28);
MTOFEXTENDED(pitch, freq);
freq = freq / param_div >> param_OS;
int32_t nyq;
MTOF(56, nyq)
nyq = nyq;
int32_t width;
int32_t iwidth;
int32_t tmp;
MTOF(56 << 21, tmp)
int32_t dck;
MTOF(__SSAT((v26) + pitch, 29), dck)
int32_t norm;
MTOF(-52 << 21, norm)
float32_t ratio = (float32_t)(norm) / (dck);
float32_t iratio = 1 - ratio;
// ratio=ratio*ratio;
iratio = 1 - iratio * iratio;
int32_t SAW = param_saw + inlet_saw;
int32_t PLS = (param_pls + inlet_pls) + pitch * param_track >> 1;
PLS = PLS & ((v28)-1);
PLS = PLS > (v27) ? (v28)-PLS : PLS;
int32_t SHARK = param_shark + inlet_shark;
int32_t P2S = param_p2s + inlet_p2s << 3;
int32_t super;
MTOFEXTENDED(param_rate + inlet_rate, super)
super = (super >> param_OS) >> 12;
iwidth = (v29) - (v29)*iratio;
width = (v29) - (v29)*ratio;
SAW = ___SMMUL(SAW << 3, iwidth << 1) << 2;
PLS = ___SMMUL(PLS << 3, PLS << 2);
if (param_track > 0) {
MTOF(PLS, PLS);
}
PLS = ___SMMUL(PLS << 1, width) << 3;
SHARK = ___SMMUL(SHARK << 2, iwidth) << 3;
outlet_duck = width >> 3;
stp[0] = (SAW - pv[0]) >> 4;
stp[1] = (PLS - pv[1]) >> 4;
stp[2] = (SHARK - pv[2]) >> 4;
stp[3] = (P2S - pv[3]) >> 4;
int32_t saw = pv[0];
int32_t pls = pv[1];
int32_t shark = pv[2];
int32_t p2s = pv[3];
pv[0] = SAW;
pv[1] = PLS;
pv[2] = SHARK;
pv[3] = P2S;
if ((inlet_trig > 0) && !trg) {
trg = 1;
Phase = 0;
phs = 0;
} else if (inlet_trig == 0) {
trg = 0;
}int32_t out;
int32_t MOD = inlet_freq;
hp += MOD - hp >> 8;
MOD -= hp;
for (i = 0; i < (1 << param_OS); i++) {
sync -= ___SMMUL(sync, rate);
phs += super;
if ((inlet_sync > 0) && !snc) {
snc = 1;
sync += Phase;
Phase = 0;
} else if (inlet_sync < 0) {
snc = 0;
}
SHAPE(phs, param_wave);
Phase += freq + (___SMMUL(freq, MOD) << 8);
int32_t p2 = sync + Phase + (inlet_phase << 8);
uint32_t p3 = p2 + (t1 << 1) + t2 + (t3 << 3);
SINE2TINTERP((p3 * param_div + (t4 << 8) + Phs), r)
int32_t s;
SINE2TINTERP(p3 + (p2s), s)
out = r;
t2 += t1 - t2 >> 1;
t1 += ___SMMUL(r, saw) - t1 >> 2;
r = ___SMMUL(s, r);
t3 += (___SMMUL(shark, r - (v30))) - t3 >> 4;
r = ___SMMUL(s, s);
t4 += (___SMMUL(pls, r - (3 << 29))) - t4 >> 4;
val += ((out >> 4) - val) >> 1 + param_OS;
vil += (val - vil) >> 10 + param_OS;
}
outlet_wave = (val)-vil >> 1;
outlet_phase = (sync + Phase) * param_div >> 5;
saw += stp[0];
pls += stp[1];
shark += stp[2];
p2s += stp[3];
