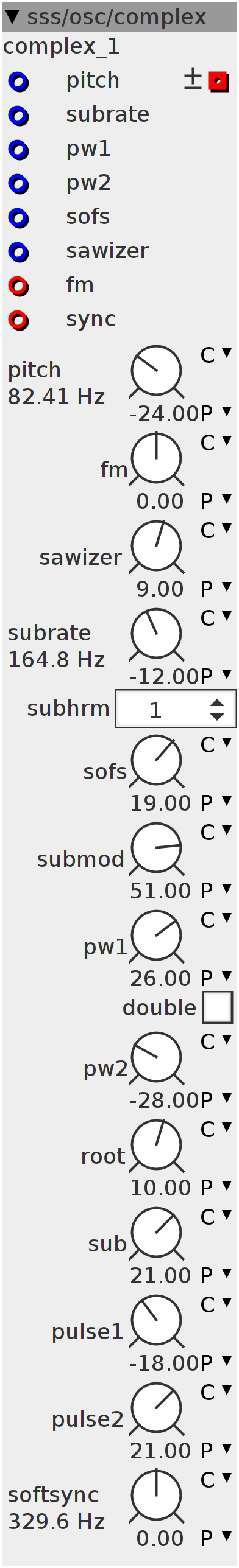

complex
Complex oscillator based on the "inf" distortion module -at the base is a thru-zero sine oscillator with a soft&hard sync function -root can be modulated to a saw-type thanks to internal self FM -sub-harmonic generator can be forced to stay in a low-frequency region, no matter the input frequency -2x pulsewidth generators and the option to send the sub to the pw-generators as offset -a mixer to mix all the 4 types together -a soft distortion at the end to limit between -64 and 64
Inlets
frac32 pitch
frac32 subrate
frac32 pw1
frac32 pw2
frac32 sofs
frac32 sawizer
frac32buffer fm
frac32buffer sync
Outlets
frac32buffer.bipolar audio output
Parameters
frac32.s.map fm
frac32.s.map turns root sine into a saw-like shape by internal self-FM
frac32.s.map offsets the trigger point of the sub
frac32.s.map pulse width 1
frac32.s.map pulse width 2
frac32.s.map root level
frac32.s.map sub level
frac32.s.map pulse1 level
frac32.s.map pulse2 level
int32 sub-divides the sub in integers using a counter
frac32.u.map adds the sub generator to the root before sending to pulse
bool32.tgl fully rectify before pulse2
frac32.s.map.pitch root pitch
frac32.s.map.pitch sub-divides the sub based on a timer that has to have ended before it can trigger again
frac32.s.map.pitch softsync
static const int blepvoices = 8;
static const int max = 4;
int i, j, snc, cnt, sync, SNC;
int16_t *oscp[max][blepvoices];
uint32_t nextvoice[max];
int32_t i0[max];
int32_t phase, timer, Ofs;
int32_t v21 = 1 << 21;
int32_t hp, saw, HP, LP, Hp;int j;
for (i = 0; i < max; i++) {
for (j = 0; j < blepvoices; j++) {
oscp[i][j] = &blept[BLEPSIZE - 1];
}
nextvoice[i] = 0;
i0[i] = 0;
}int j;
int16_t *lastblep = &blept[BLEPSIZE - 1];
uint32_t freq, ss;
MTOFEXTENDED(param_pitch + inlet_pitch, freq)
MTOFEXTENDED(param_softsync, ss)
if (param_softsync == (1 << 27)) {
ss = (1 << 31) - 1;
}
if (param_softsync == -(1 << 27)) {
ss = 0;
}
int32_t ofs1 = inlet_pw1 + param_pw1;
int32_t ofs2 = inlet_pw2 + param_pw2;
int32_t sofs = inlet_sofs + param_sofs;
int32_t rate;
MTOFEXTENDED(param_subrate + inlet_subrate, rate)
rate = rate >> 2;
int32_t FM = ___SMMUL(freq, param_sawizer + inlet_sawizer) << 5;
int32_t fm = ___SMMUL(freq, param_fm) << 5;
for (j = 0; j < BUFSIZE; j++) {
sync -= ___SMMUL(ss, sync);
timer = __USAT(timer - rate, 30);
saw = (___SMMUL(FM, saw) << 8);
saw += (___SMMUL(fm, inlet_fm[j]) << 8);
HP += saw - HP >> 8;
saw -= HP;
LP += saw - LP >> 1;
saw = LP;
phase += freq + saw;
if ((inlet_sync[j] > 0) && !SNC && (ss > 0)) {
SNC = 1;
sync += phase;
phase = 0;
cnt = (cnt + 1) % (param_subhrm);
if (timer < 1) {
if (cnt == 0) {
Ofs = Ofs > 0 ? -v21 : v21;
timer = (1 << 30);
}
}
} else if (inlet_sync[j] < 0) {
SNC = 0;
}
int32_t out;
///////////root
int32_t p1 = phase + sync;
int32_t r;
SINE2TINTERP(p1, r)
SINE2TINTERP(p1 + (1 << 30), saw)
saw = saw >> 4;
r = r >> 4;
///////////sub
int32_t in = r + sofs;
if ((in > 0) && !snc) {
snc = 1;
cnt = (cnt + 1) % (param_subhrm);
if (timer < 1) {
if (cnt == 0) {
Ofs = Ofs > 0 ? -v21 : v21;
timer = (1 << 30);
}
}
} else if (in < 0) {
snc = 0;
}
int32_t i1 = Ofs;
int32_t sum = 0;
if ((i1 > 0) && !(i0[2] > 0)) { // dispatch
nextvoice[2] = (nextvoice[2] + 1) & (blepvoices - 1);
int32_t x = 64 - ((-i0[2] << 6) / (i1 - i0[2]));
oscp[2][(nextvoice[2])] = &blept[x];
} else if ((i1 < 0) && !(i0[2] < 0)) { // dispatch
nextvoice[2] = (nextvoice[1] + 1) & (blepvoices - 1);
int32_t x = 64 - ((i0[2] << 6) / (i0[2] - i1));
oscp[2][(nextvoice[2])] = &blept[x];
}
i0[2] = i1;
for (i = 0; i < blepvoices; i++) { // sample
int16_t *t = oscp[2][i];
if (i & 1)
sum += *t;
else
sum -= *t;
t += 64;
if (t >= lastblep)
t = lastblep;
oscp[2][i] = t;
}
sum -= ((((nextvoice[2] + 1) & 1) << 1) - 1) << 13;
sum = sum << 13;
out = ___SMMUL(sum, param_sub) << 5;
int32_t smod = ___SMMUL(-param_submod, sum) << 5;
///////////pulse1
i1 = r + ofs1 + smod >> 2;
sum = 0;
if ((i1 > 0) && !(i0[0] > 0)) { // dispatch
nextvoice[0] = (nextvoice[0] + 1) & (blepvoices - 1);
int32_t x = 64 - ((-i0[0] << 6) / (i1 - i0[0]));
oscp[0][(nextvoice[0])] = &blept[x];
} else if ((i1 < 0) && !(i0[0] < 0)) { // dispatch
nextvoice[0] = (nextvoice[0] + 1) & (blepvoices - 1);
int32_t x = 64 - ((i0[0] << 6) / (i0[0] - i1));
oscp[0][(nextvoice[0])] = &blept[x];
}
i0[0] = i1;
for (i = 0; i < blepvoices; i++) { // sample
int16_t *t = oscp[0][i];
if (i & 1)
sum += *t;
else
sum -= *t;
t += 64;
if (t >= lastblep)
t = lastblep;
oscp[0][i] = t;
}
sum -= ((((nextvoice[0] + 1) & 1) << 1) - 1) << 13;
///////////add root and pulse1
out += ___SMMUL(sum << 13, param_pulse1) + ___SMMUL(r, param_root) << 5;
///////////pulse2
i1 = r + ofs2 + smod >> 2;
if (param_double) {
i1 = i1 > 0 ? i1 : -i1;
hp += i1 - hp >> 9;
i1 -= hp;
}
sum = 0;
if ((i1 > 0) && !(i0[1] > 0)) { // dispatch
nextvoice[1] = (nextvoice[1] + 1) & (blepvoices - 1);
int32_t x = 64 - ((-i0[1] << 6) / (i1 - i0[1]));
oscp[1][(nextvoice[1])] = &blept[x];
} else if ((i1 < 0) && !(i0[1] < 0)) { // dispatch
nextvoice[1] = (nextvoice[1] + 1) & (blepvoices - 1);
int32_t x = 64 - ((i0[1] << 6) / (i0[1] - i1));
oscp[1][(nextvoice[1])] = &blept[x];
}
i0[1] = i1;
for (i = 0; i < blepvoices; i++) { // sample
int16_t *t = oscp[1][i];
if (i & 1)
sum += *t;
else
sum -= *t;
t += 64;
if (t >= lastblep)
t = lastblep;
oscp[1][i] = t;
}
sum -= ((((nextvoice[1] + 1) & 1) << 1) - 1) << 13;
out += ___SMMUL(sum << 13, param_pulse2) << 5;
//////////////
Hp += out - Hp >> 10;
out -= Hp;
int32_t ts = __SSAT(out, 28);
int32_t tsq31 = ts << 3;
int32_t tsq31p3 = ___SMMUL(tsq31, ___SMMUL(tsq31, tsq31));
out = ts + (ts >> 1) - (tsq31p3);
outlet_out[j] = out;
}
