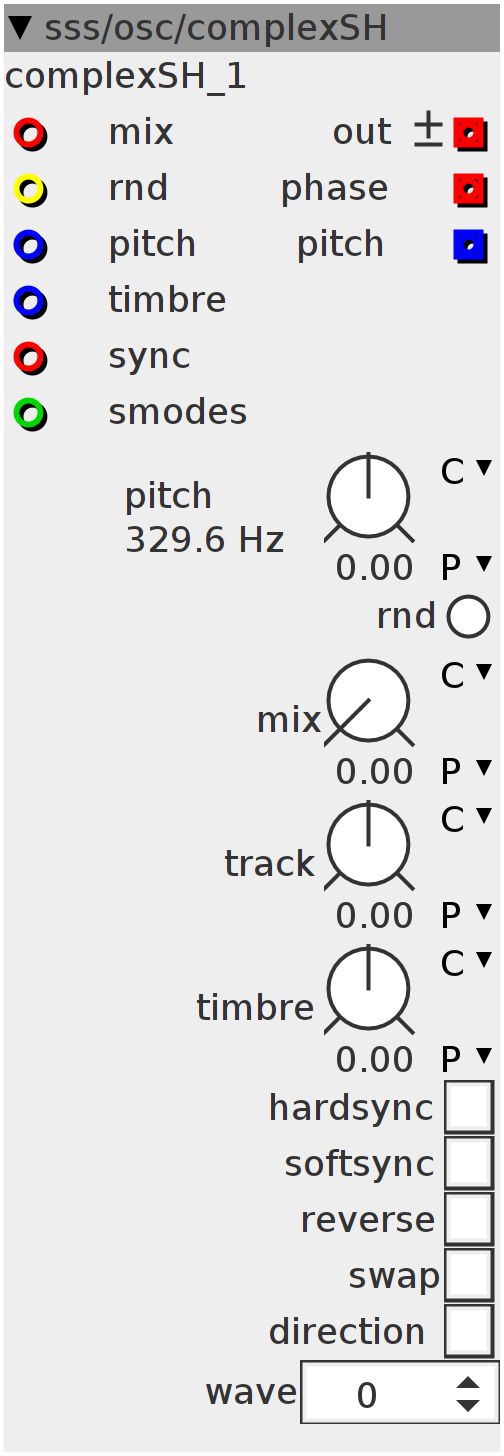

complexSH
oscillator based on a S&H module and a random table for amplitudes and S&H times. Note though, that this oscillator is mostly usable for bass as a high pitch will make the S&H unstable. "Mix" mixes between two tables for amplitude and timing of the S&H and is a kind of complex pulsewidth modulation. "Timbre" controls the overall rate of the timing of the S&H (higher pitch->faster pulses->higher timbre) Features several kinds of sync that can be stacked up on each other. Instead of giving them all their own off/on inputs, these are externally controlled by an integer value in which each bit stands for it's own sync off/on. Use a "DAC" to convert bits to externally control the sync type or just a random value generator. 0/1=hardsync 0/2=softsync 0/4=reverse 0/8=swap 0/16=direction 0/32,64,96,128..etc=wave (0 up to 15, but multiplied by 32)
Inlets
frac32 course
frac32 main rate of the S&H
int32 bitwise off/on of individual sync modes-> hardsync =1, softsync=2,reverse=4, swap=8,direction=16,wave=32+an offset for subdividing (64,96,128,160,192, etc.)
frac32buffer level input
frac32buffer use the smodes and sync options to select sync types
bool32 randomise S&H array
Outlets
frac32buffer phase
frac32 pitch
frac32buffer.bipolar audio output
Parameters
frac32.u.map mix
frac32.s.map track
frac32.s.map timbre
bool32.tgl hardsync
bool32.tgl softsync
bool32.tgl reverse
bool32.tgl swap
bool32.tgl direction
int32 wave
frac32.s.map.pitch pitch
bool32.mom rnd
static const int blepvoices = 16;
int16_t *oscp[blepvoices];
int32_t vgain[blepvoices];
uint32_t nextvoice;
uint32_t phase;
int32_t phs;
int32_t i0;
int32_t in0;
int32_t acc, hp;
int32_t cnt, ct, CT;
int32_t array[2][2][16];
int rnd, snc, dir, swp, dr, pos;
int i;
int j;for (j = 0; j < blepvoices; j++)
oscp[j] = &blept[BLEPSIZE - 1];
nextvoice = 0;
i0 = 0;
in0 = 0;
acc = 0;
phase = 0;
cnt = 0;
ct = 0;
dir = 1;
swp = 1;
dr = 1;
for (i = 0; i < 2; i++) {
for (j = 0; j < 16; j++) {
array[i][0][j] = (int32_t)(GenerateRandomNumber()) >> 4;
int32_t tmp;
MTOFEXTENDED((int32_t)(GenerateRandomNumber()) >> 4, tmp)
array[i][1][j] = tmp;
}
}int16_t *lastblep = &blept[BLEPSIZE - 1];
int32_t frq;
MTOFEXTENDED(param_pitch + inlet_pitch, frq)
outlet_pitch = param_pitch + inlet_pitch;
int32_t ifrq;
MTOFEXTENDED((___SMMUL(param_track, param_pitch + inlet_pitch) << 5) +
param_timbre + inlet_timbre,
ifrq)
int ss, hs, rv, sp, DR, wv;
hs = param_hardsync || (inlet_smodes & 1);
ss = param_softsync || ((inlet_smodes >> 1) & 1);
rv = param_reverse || ((inlet_smodes >> 2) & 1);
sp = param_swap || ((inlet_smodes >> 3) & 1);
DR = param_direction || ((inlet_smodes >> 4) & 1);
wv = param_wave + ((inlet_smodes >> 5) & 15);
wv = wv & 1 ? wv : 0;
int RND = inlet_rnd || param_rnd;
if (RND && !rnd) {
rnd = 1;
for (i = 0; i < 2; i++) {
for (j = 0; j < 16; j++) {
array[i][0][j] = (int32_t)(GenerateRandomNumber()) >> 4;
int32_t tmp;
MTOFEXTENDED((int32_t)(GenerateRandomNumber()) >> 4, tmp)
array[i][1][j] = tmp;
}
}
} else if (!RND) {
rnd = 0;
}
for (j = 0; j < BUFSIZE; j++) {
phs -= phs >> 7;
int32_t mix = __USAT(param_mix + inlet_mix[j], 27) << 4;
uint32_t p1 = phase + phs;
phase += frq * dir;
if ((inlet_sync[j] > 0) && !snc) {
snc = 1;
uint32_t tphs = phase;
if (ss) {
phs += (int32_t)(phase);
phase = 0;
}
if (hs) {
phase -= tphs;
}
if (rv) {
dir = dir > 0 ? -1 : 1;
phase += frq * dir << 1;
} else {
dir = 1;
}
if (sp) {
swp = swp > 0 ? -1 : 1;
}
if (DR) {
dr = dr > 0 ? -1 : 1;
} else {
dr = 1;
}
if (wv) {
ct = pos;
if (CT < 1) {
pos = (pos + 1) & 15;
}
CT = (CT + 1) % wv;
}
} else if (inlet_sync[j] < 0) {
snc = 0;
}
// int32_t p2=phase+phs;
if ((phase + phs) < p1) {
ct = wv > 0 ? pos : 0;
int32_t tm = array[0][1][ct];
tm += ___SMMUL(mix, array[1][1][ct] - tm) << 1;
cnt = tm;
}
cnt -= ifrq; //___SMMUL(frq,ifrq)<<1;
int TRG = -1;
if (cnt < 0) {
ct = (ct + dr) & 15;
int32_t tm = array[0][1][ct];
tm += ___SMMUL(mix, array[1][1][ct] - tm) << 1;
cnt = tm;
TRG = 1;
}
int i;
int i1 = TRG << 21;
int32_t pos = array[0][0][ct];
pos += ___SMMUL(mix, array[1][0][ct] - pos) << 1;
if ((i1 > 0) && !(i0 > 0)) { // dispatch
nextvoice = (nextvoice + 1) & (blepvoices - 1);
int32_t x = (i1 << 6) / (i1 - i0);
oscp[nextvoice] = &blept[x];
int32_t val = (((64 - x) * (pos >> 2)) + (x * (in0 >> 2))) >> 6;
vgain[nextvoice] = (acc - val) << 2;
acc = val;
}
int32_t sum = 0;
i0 = i1;
in0 = pos;
for (i = 0; i < blepvoices; i++) { // sample
int16_t *t = oscp[i];
sum = ___SMMLA((16384 - (*t)) << 16, vgain[i], sum);
t += 64;
if (t >= lastblep) {
t = lastblep;
vgain[i] = 0;
}
oscp[i] = t;
}
sum = ((sum + acc) << 1) * swp;
hp += sum - hp >> 9;
outlet_out[j] = sum - hp;
outlet_phase[j] = ((uint32_t)phase) >> 5;
}
