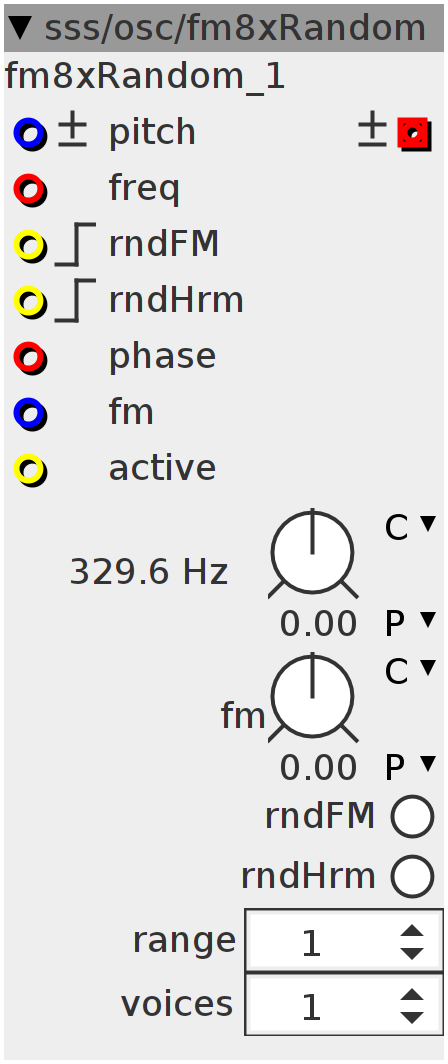

fm8xRandom
8x sine wave oscillator with internal FM. generated harmonics and FM routing are random. Harmonics and FM routing can be independently randomised with the buttons and inputs. Range sets the maximum harmonic range.
Inlets
frac32 fm
bool32 active
frac32.bipolar pitch
frac32buffer frequency
frac32buffer phase
bool32.rising rndFM
bool32.rising rndHrm
Outlets
frac32buffer.bipolar sine wave
Parameters
bool32.mom rndFM
bool32.mom rndHrm
int32 range
int32 voices
frac32.s.map.pitch pitch
frac32.s.map fm
int32_t sine[8];
uint32_t phase[8];
int32_t val[8];
int32_t harm[8];
int8_t i;
int32_t freq;
int ntrig;
int strig;for (i = 0; i < 8; i++) {
val[i] = (int32_t)(GenerateRandomNumber() % (7));
harm[i] = (int32_t)(GenerateRandomNumber() % (48));
}
ntrig = 0;if (inlet_active > 0) {
if (((param_rndFM + inlet_rndFM) > 0) && !ntrig) {
for (i = 0; i < 8; i++) {
val[i] = (int32_t)(GenerateRandomNumber() % (param_voices));
}
ntrig = 1;
} else if (!((param_rndFM + inlet_rndFM) > 0))
ntrig = 0;
if (((param_rndHrm + inlet_rndHrm) > 0) && !strig) {
for (i = 0; i < 8; i++) {
harm[i] = (int32_t)(GenerateRandomNumber() % (param_range));
}
harm[0] = 0;
strig = 1;
} else if (!((param_rndHrm + inlet_rndHrm) > 0))
strig = 0;
MTOFEXTENDED(param_pitch + inlet_pitch, freq)
}if (inlet_active > 0) {
int32_t sum = 0;
phase[0] +=
freq +
___SMMUL(
freq << 3,
___SMMUL((param_fm + inlet_fm) << 3, (inlet_freq << 3) + sine[val[0]])
<< 2);
SINE2TINTERP(phase[0], sine[0])
for (i = 1; i < param_voices; i++) {
phase[i] +=
(freq * (1 + harm[i])) +
___SMMUL((freq * (1 + harm[i])) << 3,
___SMMUL((param_fm + inlet_fm) << 3, inlet_freq + sine[val[i]])
<< 2);
SINE2TINTERP(phase[i], sine[i])
}
for (i = 0; i < param_voices; i++) {
sum += sine[i] >> 5;
}
outlet_wave = sum >> 3;
// outlet_wave=sum>>3;
}
