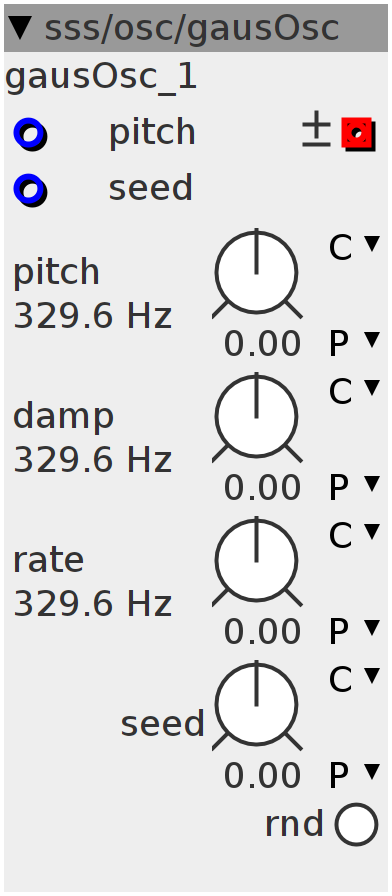

gausOsc

seeded noise oscillator based on pseudo gaussian noise factory module.
Author: Remco van der Most
License: BSD
Github: sss/osc/gausOsc.axo

Inlets

frac32 pitch

frac32 seed

Outlets

frac32buffer.bipolar white noise

Parameters

frac32.s.map.pitch pitch

frac32.s.map.pitch damp

frac32.s.map.pitch rate

frac32.s.map seed

bool32.mom rnd

Declaration
uint32_t seeds[16];
int trig;
int32_t phase;
int32_t n;
int rnd;
int32_t val;
Init
seeds[8] = 0x21c32332 + GenerateRandomNumber();
seeds[9] = 0xfbc57f7a + GenerateRandomNumber();
seeds[10] = 0x7dd1ef4a + GenerateRandomNumber();
seeds[11] = 0xe4ec34ad + GenerateRandomNumber();
seeds[12] = 0x72007b2f + GenerateRandomNumber();
seeds[13] = 0x3d1e9783 + GenerateRandomNumber();
seeds[14] = 0xa4a8f892 + GenerateRandomNumber();
seeds[15] = 0xc82c5e28 + GenerateRandomNumber();
seeds[0] = seeds[8];
seeds[1] = seeds[9];
seeds[2] = seeds[10];
seeds[3] = seeds[11];
seeds[4] = seeds[12];
seeds[5] = seeds[13];
seeds[6] = seeds[14];
seeds[7] = seeds[15];
Control Rate
if ((param_rnd > 0) && !rnd) {
  rnd = 1;
  seeds[8] = 0x21c32332 + GenerateRandomNumber();
  seeds[9] = 0xfbc57f7a + GenerateRandomNumber();
  seeds[10] = 0x7dd1ef4a + GenerateRandomNumber();
  seeds[11] = 0xe4ec34ad + GenerateRandomNumber();
  seeds[12] = 0x72007b2f + GenerateRandomNumber();
  seeds[13] = 0x3d1e9783 + GenerateRandomNumber();
  seeds[14] = 0xa4a8f892 + GenerateRandomNumber();
  seeds[15] = 0xc82c5e28 + GenerateRandomNumber();
} else if (param_rnd == 0) {
  rnd = 0;
}

int32_t freq;
MTOFEXTENDED(inlet_pitch + param_pitch, freq)
int32_t g;
MTOF(param_damp + inlet_pitch + param_pitch, g)
int32_t R;
MTOF(param_rate, R)
int32_t Seed = param_seed + inlet_seed;
Audio Rate
phase += freq;
if ((phase > 0) && !trig) {
  trig = 1;
  seeds[0] = seeds[8] + ___SMMUL(Seed << 3, seeds[13] << 2);
  seeds[1] = seeds[9] + ___SMMUL(Seed << 3, seeds[15] << 2);
  seeds[2] = seeds[10] + ___SMMUL(Seed << 3, seeds[9] << 2);
  seeds[3] = seeds[11] + ___SMMUL(Seed << 3, seeds[11] << 2);
  seeds[4] = seeds[12] + ___SMMUL(Seed << 3, seeds[10] << 2);
  seeds[5] = seeds[13] + ___SMMUL(Seed << 3, seeds[14] << 2);
  seeds[6] = seeds[14] + ___SMMUL(Seed << 3, seeds[8] << 2);
  seeds[7] = seeds[15] + ___SMMUL(Seed << 3, seeds[12] << 2);
} else if (phase < 0) {
  trig = 0;
}
int i;
for (i = 0; i < 8; i++) {
  seeds[i] = ___SMMLA(((seeds[i] * 196314165 + 907633515) - seeds[i]) << 1, R,
                      seeds[i]);
  n = ___SMMLA(((((int32_t)(seeds[i])) >> 4) - n) << 1, g, n);
}
val += n - val >> 10;
outlet_wave = n - val;
