guitarOsc

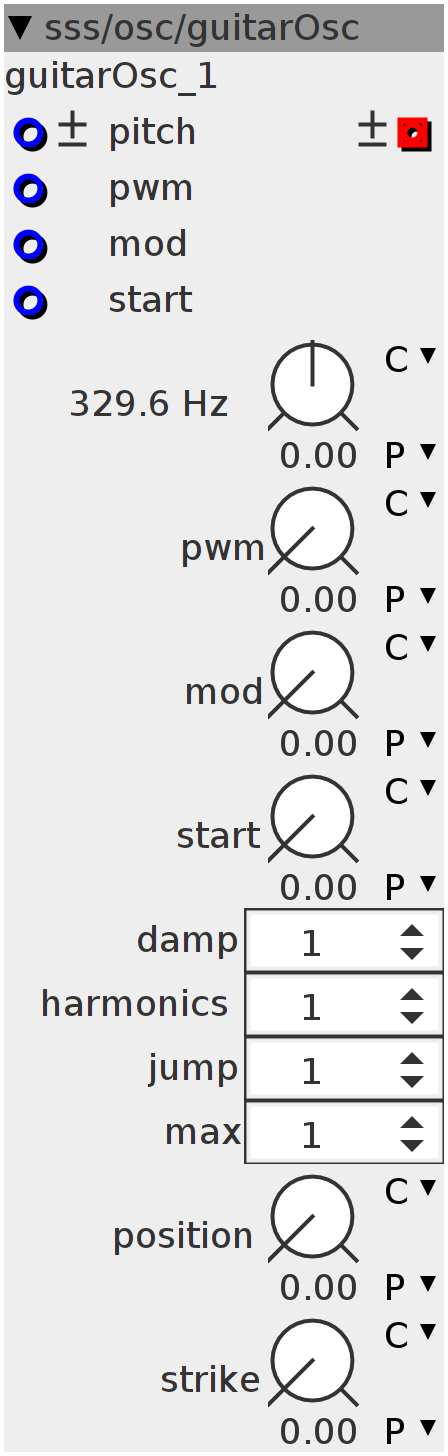

"guitarOsc" -features pulsewidth, start-shift (start) and pick-up (mod) modulation, all extern controllable. (though these are all only approximations, reshaping the wavetable) below the continuous controls, we got "fixed" controls, even though you could change them live, this will create a bleep as it has to recalculate the waveform. -damp: dampening-factor for each next added harmonic corresponding to harmonic number. -harmonics: how many harmonics will be generated for the wavetable (low numbers reduce recalculation time!) -jump: "jump" size for next added harmonic, skipping harmonics in-between -max: sets maximum harmonic number that can be added, wraps when above the max. -position: sets the read-out position of the guitar-element -strike: sets the position where the string is struck
Inlets
frac32.bipolar pitch
frac32 pwm
frac32 mod
frac32 start
Outlets
frac32buffer.bipolar sine wave
Parameters
frac32.s.map.pitch pitch
frac32.u.map pwm
frac32.u.map mod
frac32.u.map start
frac32.u.map position
frac32.u.map strike
int32 damp
int32 harmonics
int32 jump
int32 max
uint32_t phase;
int i;
int j;
int32_t sum;
int32_t r;
int32_t posWidth;
int32_t position;
int32_t prev;
int32_t array[2048];
int ctrig;
int create;
int32_t Pos;
int k;
int32_t start;
float32_t A;
float32_t B;
uint32_t PM;phase = 0;
for (i; i < 2048; i++) {
array[i] = 0;
}int32_t update = param_position + param_strike + param_damp + param_harmonics +
param_jump + param_max;
if ((!(prev == (update))) && !create) {
create = 1;
Pos = param_position;
start = param_strike;
for (i = 0; i < 2048; i++) {
array[i] = 0;
}
for (j = 0; j < param_harmonics; j++) {
k = (j * param_jump - (j * param_jump / param_max) * param_max);
position = ((j + 1) * Pos << 4);
SINE2TINTERP(position, posWidth)
for (i = 0; i < 2048; i++) {
SINE2TINTERP((i << 21) * (k + 1) - (start << 3) * (k + 1), r)
array[i] += ___SMMUL(r >> 3, posWidth >> 3) / (1 + k * param_damp);
}
}
} else if (prev == (update)) {
create = 0;
}
prev = update;
int32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq)
PM = param_pwm + inlet_pwm;
PM = PM > 0 ? PM : -PM;
PM = PM & ((1 << 28) - 1);
PM = PM > (1 << 27) ? (2 << 27) - PM : PM;
PM = __USAT(PM + 1, 27) << 4;
A = ((float32_t)(1 << 31)) / ((float32_t)(PM << 1));
B = ((float32_t)(1 << 31)) / ((float32_t)(((1 << 31) - PM) << 1));
PM = PM << 1;
int32_t mod1 = param_mod + inlet_mod;
mod1 = mod1 > 0 ? mod1 : -mod1;
mod1 = mod1 & ((1 << 28) - 1);
mod1 = mod1 > (1 << 27) ? (2 << 27) - mod1 : mod1;
mod1 = mod1 << 4;
int32_t mod2;
mod2 = mod1 * 3;
int32_t Start = param_start + inlet_start;
Start = Start > 0 ? Start : -Start;
Start = Start & ((1 << 28) - 1);
Start = Start > (1 << 27) ? (2 << 27) - Start : Start;uint32_t Phase;
phase += freq;
uint32_t PHase = phase;
if (phase < (1 << 31)) {
PHase = ___SMMUL(phase, Start << 4) << 2;
} else {
PHase = (___SMMUL(phase, ((1 << 27) - Start) << 4) << 2);
}
if (PHase < PM) {
Phase = (1 << 31) + ((int32_t)(PHase * A)) + mod1;
}
if (PHase >= PM) {
Phase = ((uint32_t)((PHase - PM) * B - (1 << 31))) + mod1 + (1 << 31);
}
outlet_wave = array[(Phase >> 21) & 2047];
