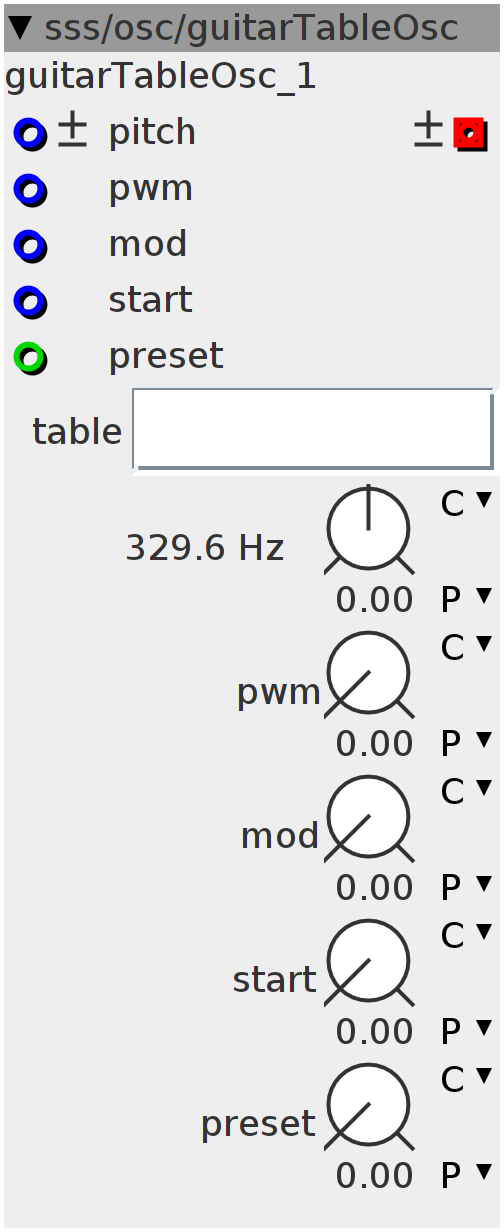

guitarTableOsc
this is the module to use with the guitarTable module in a polyphonic synthesizer. The guitarTable module will create a complex waveform and this module is able to play that waveform. This was needed, otherwise, in a polyphonic setting, each module would create it's own table, filling up the available memory really quickly. -features pulsewidth, start-shift (start) and pick-up (mod) modulation, all extern controllable. (though these are all only approximations to the changes made by the "fixed settings", reshaping the wavetable)
Inlets
frac32.bipolar pitch
frac32 pwm
frac32 mod
frac32 start
int32 preset
Outlets
frac32buffer.bipolar sine wave
Parameters
frac32.s.map.pitch pitch
frac32.u.map pwm
frac32.u.map mod
frac32.u.map start
frac32.u.map preset
Attributes
objref table
uint32_t phase;
int i;
float32_t A;
float32_t B;
uint32_t PM;
uint32_t Pm;
int32_t prev1;
int32_t prev2;
int32_t prev3;
float32_t prev4;
float32_t prev5;
int32_t step1;
int32_t step2;
int32_t step3;
float32_t step4;
float32_t step5;
int preset;phase = 0;int32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq)
PM = param_pwm + inlet_pwm;
PM = PM > 0 ? PM : -PM;
PM = PM & ((1 << 28) - 1);
PM = PM > (1 << 27) ? (2 << 27) - PM : PM;
PM = __USAT(PM + 1, 27) << 4;
A = ((float32_t)(1 << 31)) / ((float32_t)(PM << 1));
B = ((float32_t)(1 << 31)) / ((float32_t)(((1 << 31) - PM) << 1));
PM = PM << 1;
int32_t mod1 = param_mod + inlet_mod;
mod1 = mod1 > 0 ? mod1 : -mod1;
mod1 = mod1 & ((1 << 28) - 1);
mod1 = mod1 > (1 << 27) ? (2 << 27) - mod1 : mod1;
mod1 = mod1 << 4;
int32_t mod2;
mod2 = mod1 * 3;
int32_t Start = param_start + inlet_start;
Start = Start > 0 ? Start : -Start;
Start = Start & ((1 << 28) - 1);
Start = Start > (1 << 27) ? (2 << 27) - Start : Start;
step1 = ((((int32_t)(PM)) + (1 << 31)) - prev1) >> 4;
int32_t i1 = prev1;
prev1 = ((int32_t)(PM)) + (1 << 31);
step2 = (mod1 - prev2) >> 4;
int32_t i2 = prev2;
prev2 = mod1;
step3 = (Start - prev3) >> 4;
int32_t i3 = prev3;
prev3 = Start;
step4 = (A - prev4) / (float32_t)16;
float32_t i4 = prev4;
prev4 = A;
step5 = (B - prev5) / (float32_t)16;
float32_t i5 = prev5;
prev5 = B;
preset = param_preset + inlet_preset;
preset = ___SMMUL(preset << 3, attr_table.presets << 2);
preset = preset - (preset / attr_table.presets) * attr_table.presets;
preset = preset < 0 ? preset + attr_table.presets : preset;
preset = preset * attr_table.LENGTH;uint32_t Phase;
phase += freq;
uint32_t PHase = phase;
if (phase < (1 << 31)) {
PHase = ___SMMUL(phase, i3 << 4) << 2;
} else {
PHase = (___SMMUL(phase, ((1 << 27) - i3) << 4) << 2);
}
if (PHase < Pm) {
Phase = (1 << 31) + ((int32_t)(PHase * i4)) + i2;
}
if (PHase >= Pm) {
Phase = ((uint32_t)((PHase - Pm) * i5 - (1 << 31))) + i2 + (1 << 31);
}
outlet_wave =
attr_table
.array[((Phase >> 32 - attr_table.LENGTHPOW) & attr_table.LENGTHMASK) +
preset];
i1 += step1;
i2 += step2;
i3 += step3;
i4 += step4;
i5 += step5;
Pm = (uint32_t)(i1) + (1 << 31);
