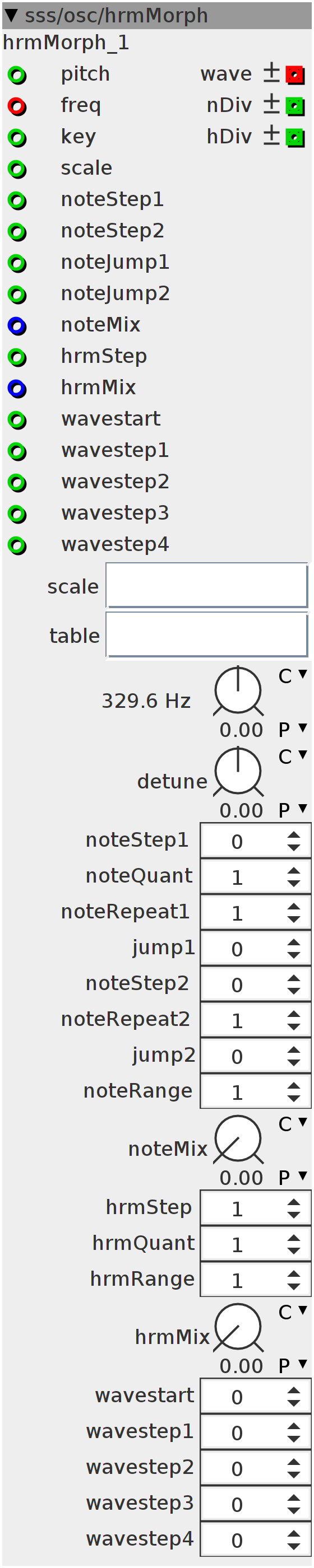

hrmMorph
quad morphing sine oscillator morphs both through a scaled pitch (use scaleBank module from my harmony folder) as well as harmonic overtones. -use a triangle LFO or smoothed-out LFO to control the mix-inputs->morphs through the notes/harmonics. -noteQuant and hrmQuant set the amount of pitches/harmonics that will be played when mix goes from zero to max. -hrm/noteStep sets the stepsize of each next played note/harmonic. -noteRepeat wraps the note-count, making it repeat after the set amount of steps. For the notes, you have 2 patterns which are added together before being "ranged" between minimum (zero) and maximum (noteRange). -jump sets the offset size that will be added to the note each time the repeat wraps the count. -hrm/noteRange sets the maximum range for the harmonics/notes.
Inlets
frac32buffer freq
frac32 noteMix
frac32 hrmMix
int32 pitch
int32 key
int32 scale
int32 noteStep1
int32 noteStep2
int32 noteJump1
int32 noteJump2
int32 hrmStep
int32 wavestart
int32 wavestep1
int32 wavestep2
int32 wavestep3
int32 wavestep4
Outlets
frac32buffer.bipolar sine wave
int32.bipolar nDiv
int32.bipolar hDiv
Parameters
frac32.u.map noteMix
frac32.u.map hrmMix
frac32.s.map.pitch pitch
frac32.s.map detune
int32 noteStep1
int32 noteQuant
int32 noteRepeat1
int32 jump1
int32 noteStep2
int32 noteRepeat2
int32 jump2
int32 noteRange
int32 hrmStep
int32 hrmQuant
int32 hrmRange
int32 wavestart
int32 wavestep1
int32 wavestep2
int32 wavestep3
int32 wavestep4
Attributes
objref scale
objref table
uint32_t Phase1;
uint32_t Phase2;
int32_t P[6];
int32_t J[4];
int32_t T[4];
int64_t MIX1;
int64_t MIX2;
int32_t mix[3];
int32_t sinemix(int32_t inst, int32_t WaveA, int32_t WaveB, int32_t Mix) {
mix[inst] = ___SMMUL(((1 << 27) - Mix) << 3, WaveA << 2) +
___SMMUL(Mix << 3, WaveB << 2);
}
int32_t F;
int32_t MX(int32_t T) {
T = T > 0 ? T : -T;
T = T & ((1 << 28) - 1);
F = T > (1 << 27) ? (1 << 28) - T : T;
}Phase1 = 0;
Phase2 = 0;int32_t freq1;
int32_t freq2;
int key = inlet_key - 4;
key = key - (key / 12) * 12;
key = key < 0 ? key + 12 : key;
int Scale = inlet_scale;
Scale = Scale - (Scale / 46) * 46;
Scale = Scale < 0 ? Scale + 46 : Scale;
MIX1 = param_hrmMix + inlet_hrmMix;
MX(MIX1);
MIX1 = F;
MIX2 = param_noteMix + inlet_noteMix;
MX(MIX2);
MIX2 = F;
int64_t hrmQuant = param_hrmQuant;
int64_t noteQuant = param_noteQuant;
P[0] = ((((MIX1 * hrmQuant) >> 27) + 1) >> 1) << 1;
P[1] = (((MIX1 * hrmQuant) >> 28) << 1) + 1;
MIX1 = (MIX1 - (((MIX1 * hrmQuant) >> 28) << 28) / hrmQuant) * hrmQuant;
MIX1 = MIX1 > (1 << 27) ? ((1 << 28) - MIX1) : MIX1;
T[0] = P[0];
T[1] = P[1];
P[0] = P[0] * (param_hrmStep + inlet_hrmStep);
P[1] = P[1] * (param_hrmStep + inlet_hrmStep);
P[0] = P[0] - (P[0] / param_hrmRange) * param_hrmRange + 1;
P[1] = P[1] - (P[1] / param_hrmRange) * param_hrmRange + 1;
P[2] = ((((MIX2 * noteQuant) >> 27) + 1) >> 1) << 1;
P[3] = (((MIX2 * noteQuant) >> 28) << 1) + 1;
MIX2 = (MIX2 - (((MIX2 * noteQuant) >> 28) << 28) / noteQuant) * noteQuant;
MIX2 = MIX2 > (1 << 27) ? ((1 << 28) - MIX2) : MIX2;
P[4] = P[2];
P[5] = P[3];
T[2] = P[2];
T[3] = P[3];
J[0] = P[2] / param_noteRepeat1;
J[1] = P[3] / param_noteRepeat1;
J[2] = P[4] / param_noteRepeat2;
J[3] = P[5] / param_noteRepeat2;
P[4] = P[4] * (param_noteStep2 + inlet_noteStep2);
P[5] = P[5] * (param_noteStep2 + inlet_noteStep2);
P[2] = P[2] * (param_noteStep1 + inlet_noteStep1);
P[3] = P[3] * (param_noteStep1 + inlet_noteStep1);
P[2] = P[2] - (P[2] / param_noteRepeat1) * param_noteRepeat1;
P[3] = P[3] - (P[3] / param_noteRepeat1) * param_noteRepeat1;
P[4] = P[4] - (P[4] / param_noteRepeat2) * param_noteRepeat2;
P[5] = P[5] - (P[5] / param_noteRepeat2) * param_noteRepeat2;
P[2] += J[0] * (param_jump1 + inlet_noteJump1) + P[4] +
J[2] * (param_jump2 + inlet_noteJump2);
P[3] += J[1] * (param_jump1 + inlet_noteJump1) + P[5] +
J[3] * (param_jump2 + inlet_noteJump2);
P[2] = P[2] - (P[2] / param_noteRange) * param_noteRange;
P[3] = P[3] - (P[3] / param_noteRange) * param_noteRange;
T[0] = T[0] * (param_wavestep1 + inlet_wavestep1);
T[1] = T[1] * (param_wavestep2 + inlet_wavestep2);
T[2] = T[2] * (param_wavestep3 + inlet_wavestep3);
T[3] = T[3] * (param_wavestep4 + inlet_wavestep4);
outlet_nDiv = param_noteQuant;
outlet_hDiv = param_hrmQuant;
int32_t pitch1 = inlet_pitch + P[2];
int32_t octave1 = pitch1 / 12 - (pitch1 < 0 ? 1 : 0);
int32_t semitone1 = pitch1 - octave1 * 12;
int32_t note1 = (attr_scale.note[semitone1 + Scale * 12] + octave1 * 12 + key)
<< 21;
int32_t pitch2 = inlet_pitch + P[3];
int32_t octave2 = pitch2 / 12 - (pitch2 < 0 ? 1 : 0);
int32_t semitone2 = pitch2 - octave2 * 12;
int32_t note2 = (attr_scale.note[semitone2 + Scale * 12] + octave2 * 12 + key)
<< 21;
MTOFEXTENDED(note1 + param_pitch, freq1);
MTOFEXTENDED(note2 + param_pitch, freq2);
int32_t preset = (param_wavestart + inlet_wavestart) * 1024;Phase1 += freq1 + ___SMMUL(freq1 << 3, inlet_freq << 2);
Phase2 += freq2 + ___SMMUL(freq2 << 3, inlet_freq << 2) + (param_detune >> 10);
int32_t r1a;
int32_t r2a;
int32_t r1b;
int32_t r2b;
// SINE2TINTERP(Phase1*P[0],r1a)
// SINE2TINTERP(Phase1*P[1],r1b)
// SINE2TINTERP(Phase2*P[0],r2a)
// SINE2TINTERP(Phase2*P[1],r2b)
r1a =
attr_table
.array[(((Phase1 * P[0] >> 22) & 1023) + preset + (T[0] + T[2] << 10)) &
attr_table.LENGTHMASK];
r1b =
attr_table
.array[(((Phase1 * P[1] >> 22) & 1023) + preset + (T[1] + T[2] << 10)) &
attr_table.LENGTHMASK];
r2a =
attr_table
.array[(((Phase2 * P[0] >> 22) & 1023) + preset + (T[0] + T[3] << 10)) &
attr_table.LENGTHMASK];
r2b =
attr_table
.array[(((Phase2 * P[1] >> 22) & 1023) + preset + (T[1] + T[3] << 10)) &
attr_table.LENGTHMASK];
// sinemix(0,(r1a/P[0]),(r1b/P[1]),MIX1);
// sinemix(1,(r2a/P[0]),(r2b/P[1]),MIX1);
sinemix(0, (r1a), (r1b), MIX1);
sinemix(1, (r2a), (r2b), MIX1);
sinemix(2, mix[0], mix[1], MIX2);
outlet_wave = mix[2] * 3 >> 2;
