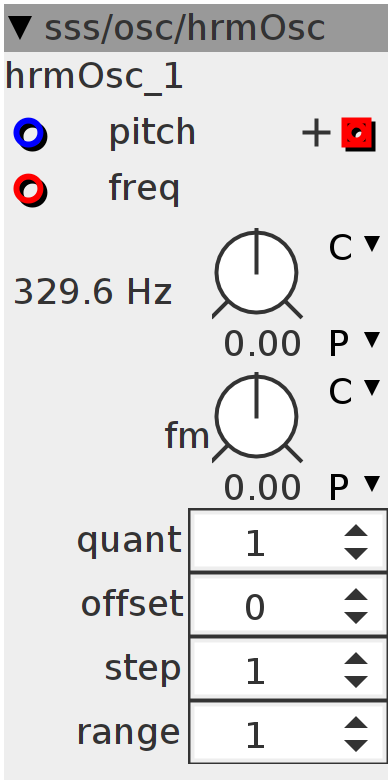

hrmOsc
sort of harmonics-selecting oscillator or something -quant sets the amount of harmonics used in a single phase-cycle, in powers of 2 (so, 2,4,8,16,32,64) -offset gives an offset to all harmonic values, selecting a different set of harmonics in a single cycle -step sets the stepsize for selecting harmonic values -range sets the range for the highest harmonic that may be used
Inlets
frac32 pitch
frac32buffer phase increment
Outlets
frac32buffer.positive phasor wave
Parameters
frac32.s.map.pitch pitch
frac32.s.map fm
int32 quant
int32 offset
int32 step
int32 range
uint32_t Phase;
uint64_t P1;
uint64_t P2;
int32_t S1;
int32_t S2;Phase = 0;uint32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq);Phase += (freq >> 0) +
___SMMUL(___SMMUL(inlet_freq << 4, param_fm << 4) << 3, freq << 2);
P1 = Phase;
P1 = (P1 / ((1 << 30) >> (param_quant))) >> 2;
P2 = ((Phase - ((P1 << 2) * ((1 << 30) >> (param_quant))) << param_quant)) >> 1;
SINE2TINTERP(P2 - (1 << 30), P2)
P2 = (P2 >> 5) + (1 << 26);
int p1 = P1;
int p2 = 1 + P1;
p2 = p2 - ((p2 >> (param_quant)) << (param_quant));
p1 = (p1 + param_offset) * param_step;
p2 = (p2 + param_offset) * param_step;
p1 = p1 - ((p1 / param_range) * param_range);
p2 = p2 - ((p2 / param_range) * param_range);
SINE2TINTERP(Phase *(1 + p1), S1)
SINE2TINTERP(Phase *(1 + p2), S2)
outlet_phasor = ___SMMUL(S1, ((1 << 27) - P2)) + ___SMMUL(S2, P2);
