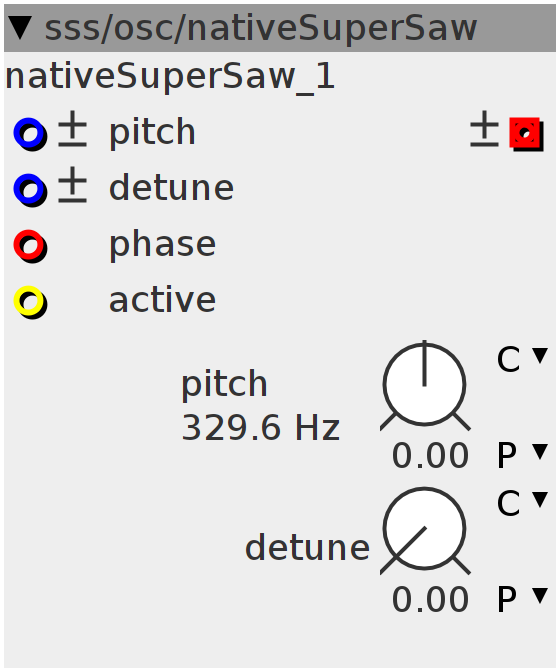

nativeSuperSaw
seven detuned saw wave oscillators with "active" control and extra "phase" modulation/destruction inlet (guess the audio rate modulation is converted to k-rate because of the blep-code, though modulation can be quite fat still). Non-bandwith limited
Author: Johannes Taelman (editted by Remco van der Most)
License: BSD
Github: sss/osc/nativeSuperSaw.axo
Inlets
frac32.bipolar pitch
frac32.bipolar detune
frac32buffer phase
bool32 active
Outlets
frac32buffer.bipolar supersaw wave
Parameters
frac32.s.map.pitch pitch
frac32.u.map detune
Declaration
int32_t osc_p[7];
int32_t p2;
int32_t p1;
Init
int i;
for (i = 0; i < 7; i++)
osc_p[i] = i << 28;
Control Rate
if (inlet_active > 0) {
uint32_t f0;
uint32_t f[6];
MTOFEXTENDED(param_pitch + inlet_pitch, f0);
uint32_t det1 = __USAT(param_detune + inlet_detune, 27);
uint32_t det = ___SMMUL(det1, det1);
uint32_t f0d = ___SMMUL(det << 8, f0);
int i, j;
f[0] = ___SMMLA(f0d, -0x54321230, f0);
f[1] = ___SMMLA(f0d, -0x31111110, f0);
f[2] = ___SMMLA(f0d, -0x10203040, f0);
f[3] = ___SMMLA(f0d, 0x10304500, f0);
f[4] = ___SMMLA(f0d, 0x32121210, f0);
f[5] = ___SMMLA(f0d, 0x55422110, f0);
int32_t f0i = 0x7fffffff / (1 + ((int)f0) >> 11);
for (j = 0; j < BUFSIZE; j++) {
int32_t p1 = osc_p[6];
int32_t p2 = p1 + f0;
osc_p[6] = p2;
if ((p2 < 0) && (p1 > 0))
outlet_wave[j] = ___SMMLS(f0i, p2 & ~(1 << 31), 0x200) << 15;
else
outlet_wave[j] = p2 >> 7;
for (i = 0; i < 6; i++) {
p1 = osc_p[i];
p2 = p1 + f[i];
osc_p[i] = p2;
if ((p2 < 0) && (p1 > 0))
outlet_wave[j] += ___SMMLS(f0i, p2 & ~(1 << 31), 0x200) << 15;
else
outlet_wave[j] += p2 >> 7;
}
}
}
Audio Rate
int i;
for (i = 0; i < 6; i++) {
osc_p[i] = osc_p[i] + (inlet_phase << 5);
}
if (inlet_active == 0) {
outlet_wave = 0;
}
