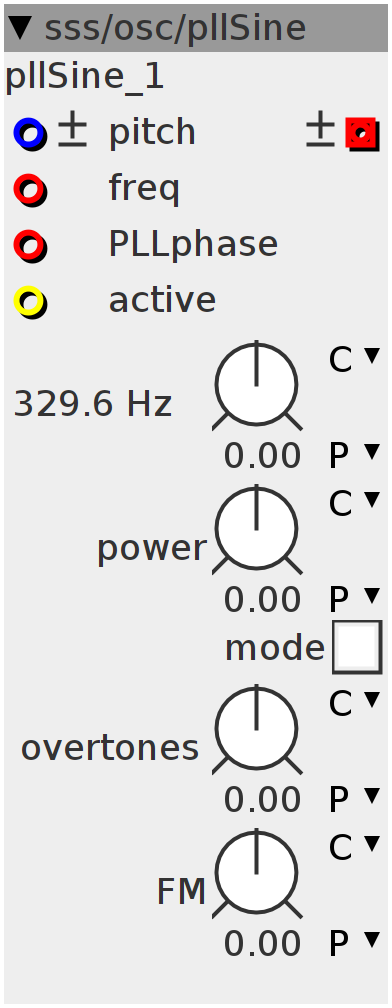

pllSine
sine wave oscillator with PLL function and frequency modulation with frequency dependent modulation index
Inlets
frac32.bipolar pitch
frac32buffer frequency
frac32buffer phase
bool32 active
Outlets
frac32buffer.bipolar sine wave
Parameters
frac32.s.map.pitch pitch
frac32.s.map power
frac32.s.map overtones
frac32.s.map FM
bool32.tgl mode
uint32_t Phase;
int32_t prev;
int32_t diff;
int32_t power;
int64_t r;
int32_t p2;
int32_t overtones;
int64_t val1;
int64_t val2;
int64_t out;
int32_t FM;
int64_t freq;Phase = 0;if (inlet_active > 0) {
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
}if (inlet_active > 0) {
diff = ((inlet_PLLphase << 4) - Phase) & ((1 << 32) - 1);
diff = diff;
power = ___SMMUL(param_power, diff);
power = ___SMMUL(power << 3, power << 2);
if (param_mode == 0) {
if (diff > prev) {
Phase += (power);
}
if (diff < prev) {
Phase -= (power);
}
} else {
if (diff > prev) {
Phase -= (power);
}
if (diff < prev) {
Phase += (power);
}
}
prev = diff;
FM = ___SMMUL(inlet_freq << 4, param_FM << 4);
Phase += (freq + ___SMMUL(freq << 5, FM));
val1 = val1 + ((param_overtones - val1) >> 7);
p2 = Phase;
SINE2TINTERP(p2, r)
overtones = ___SMMUL(r, val1 << 4);
SINE2TINTERP(p2 + (overtones << 4), r)
val2 = val2 + (((r << 32) - val2) >> 2);
out = val2 >> 38;
outlet_wave = out;
}
