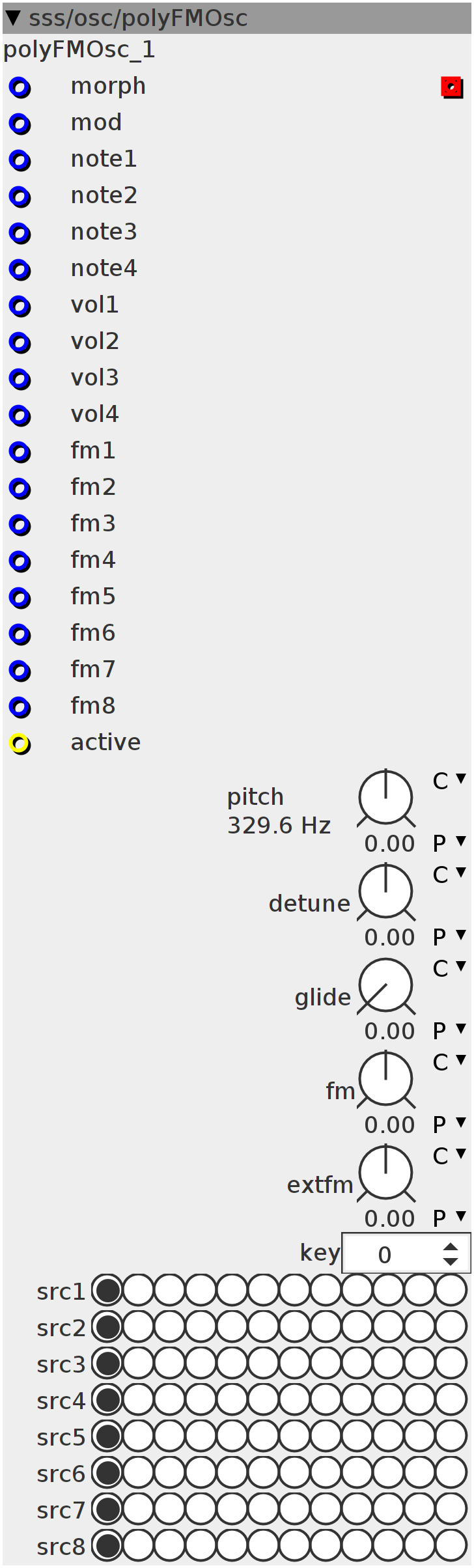

polyFMOsc
4-voice "chord" oscillator with internal FM and source selection for each of the 8 internal oscillators and individual amplitude control for the 4 voices. *connect a non-bandlimited saw-LFO to the "morph" input to update note-values and morph between the internal oscillators. *connect an attenuated LFO to the "mod" input to generate swing for the "morph" input and an update offset between the 4 voices. connect note-patterns to the 4 "note(1-4)" inputs. eg. use the 4xRngCount2 module to send notes. Values will be scaled to key internally! fm(1-8) inputs control the FM width of each internal oscillator independently for ultimate sonic morphing! Glide generates a portamento for each oscillator, changing to another note. "fm" knob controls overall fm width between oscillators. "extFM" knob controls overall width of the incoming fm-width signals. "src(1-8) select the internal oscillator that is send to the oscillator (so first control is for osc1, 2nd for osc2, etc) **first 4 sources are the "combined 2-oscillator voices", last 8 sources are the individual 8 oscillators.
Inlets
frac32 morph
frac32 mod
frac32 note1
frac32 note2
frac32 note3
frac32 note4
frac32 vol1
frac32 vol2
frac32 vol3
frac32 vol4
frac32 fm1
frac32 fm2
frac32 fm3
frac32 fm4
frac32 fm5
frac32 fm6
frac32 fm7
frac32 fm8
bool32 active
Outlets
frac32buffer out
Parameters
int32.hradio src1
int32.hradio src2
int32.hradio src3
int32.hradio src4
int32.hradio src5
int32.hradio src6
int32.hradio src7
int32.hradio src8
frac32.s.map.pitch pitch
frac32.s.map detune
frac32.s.map fm
frac32.s.map extfm
frac32.u.map glide
int32 key
uint32_t phase[8];
int32_t wave[8];
int32_t freq[8];
int32_t fraq[8];
int i;
int32_t base[12] = {0, 0, 2, 2, 4, 5, 5, 7, 7, 9, 9, 11};
int32_t mix[12];
int32_t sum;
int m1trig[4];
int m2trig[4];
uint32_t note[4];
int32_t octave[4];
int32_t marph;
int32_t mirph;
int32_t LP1;
int32_t LP2;
int32_t HP;
int32_t amp[4];
int32_t omp[4];
int8_t sel[8];
int32_t fm[8];
int32_t follow;
int32_t morph;if (inlet_active > 0) {
morph = (inlet_morph + inlet_mod) & ((1 << 27) - 1);
morph =
morph < (1 << 26) ? morph << 1 : (1 << 27) - ((morph - (1 << 26)) << 1);
morph = (morph - (1 << 26)) * 8 / 6 + (1 << 26);
marph = marph + ((morph - marph) >> 1);
morph = marph < 0 ? 0 : marph;
morph = morph > (1 << 27) ? (1 << 27) : morph;
note[0] = ((inlet_note1 + param_pitch) >> 21);
note[1] = ((inlet_note2 + param_pitch) >> 21);
note[2] = ((inlet_note3 + param_pitch) >> 21);
note[3] = ((inlet_note4 + param_pitch) >> 21);
int key = (param_key * 7) - (param_key * 7) / 12 * 12;
for (i = 0; i < 4; i++) {
omp[i] = omp[i] + ((amp[i] - omp[i]) >> 6);
octave[i] = note[i] / 12;
note[i] = note[i] - octave[i] * 12;
note[i] = note[i] < 0 ? note[i] + 12 : note[i];
note[i] = note[i] < 0 ? 0 : note[i];
note[i] = note[i] >= 12 ? 0 : note[i];
octave[i] = octave[i];
if ((morph == 0) && (!(m1trig[i]))) {
MTOFEXTENDED((((base[note[i]] + octave[i] * 12)) << 21) + (key << 21) +
___SMMUL(param_detune << 3, i << 9),
fraq[i * 2])
m1trig[i] = 1;
} else if (!(morph == 0)) {
m1trig[i] = 0;
}
if (!(morph == (1 << 27)) && (!(m2trig[i]))) {
MTOFEXTENDED((((base[note[i]] + octave[i] * 12)) << 21) + (key << 21) +
___SMMUL(param_detune << 3, (i * 2 + 1) << 8),
fraq[i * 2 + 1])
m2trig[i] = 1;
} else if ((morph == (1 << 27))) {
m2trig[i] = 0;
}
}
follow = (1 << 27) - param_glide;
follow = ___SMMUL(follow << 3, follow << 2);
for (i = 0; i < 8; i++) {
freq[i] = freq[i] + ___SMMUL((fraq[i] - freq[i]) << 3, follow << 2);
}
amp[0] = inlet_vol1;
amp[1] = inlet_vol2;
amp[2] = inlet_vol3;
amp[3] = inlet_vol4;
sel[0] = param_src1;
sel[1] = param_src2;
sel[2] = param_src3;
sel[3] = param_src4;
sel[4] = param_src5;
sel[5] = param_src6;
sel[6] = param_src7;
sel[7] = param_src8;
for (i = 0; i < 8; i++) {
fm[i] = param_fm;
}
fm[0] = fm[0] + inlet_fm1;
fm[1] = fm[1] + inlet_fm2;
fm[2] = fm[2] + inlet_fm3;
fm[3] = fm[3] + inlet_fm4;
fm[4] = fm[4] + inlet_fm5;
fm[5] = fm[5] + inlet_fm6;
fm[6] = fm[6] + inlet_fm7;
fm[7] = fm[7] + inlet_fm8;
for (i = 0; i < 8; i++) {
fm[i] = ___SMMUL(param_extfm << 3,
___SMMUL(fm[i] << 2, ___SMMUL(fm[i] << 3, fm[i] << 2) << 2)
<< 2);
}
}if (inlet_active > 0) {
sum = 0;
mirph = mirph + ((marph - mirph) >> 8);
morph = mirph < 0 ? 0 : mirph;
morph = morph > (1 << 27) ? (1 << 27) : morph;
for (i = 0; i < 8; i++) {
phase[i] += freq[i] + ___SMMUL(freq[i] << 3,
___SMMUL(fm[i] << 4, mix[sel[i]] << 3) << 3);
SINE2TINTERP(phase[i], wave[i]);
wave[i] = ___SMMUL(wave[i], omp[i >> 1] << 4);
mix[i + 4] = wave[i] >> 5;
}
for (i = 0; i < 4; i++) {
mix[i] = ___SMMUL(morph, wave[i * 2]) +
___SMMUL((1 << 27) - morph, wave[i * 2 + 1]);
sum += mix[i];
}
LP1 = LP1 + (((sum >> 1) - LP1) >> 1);
LP2 = LP2 + (((LP1)-LP2) >> 1);
HP = HP + ((LP1 - HP) >> 12);
outlet_out = LP1 - HP;
// outlet_out=wave[0]>>5;
}
