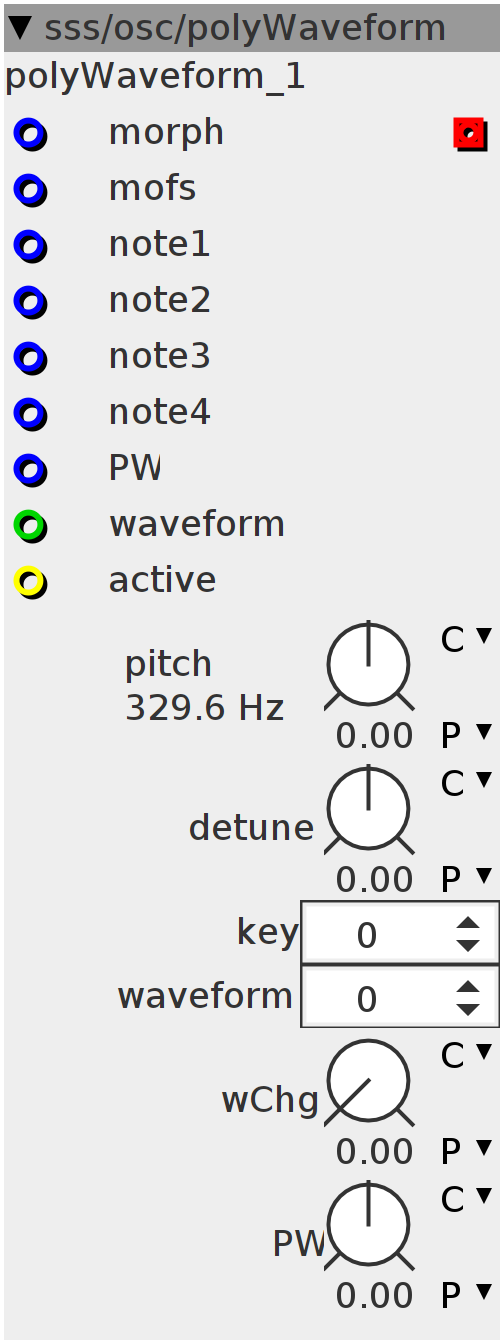

polyWaveform
4-voice "chord" oscillator with multiple waveforms connect a positive saw-LFO (non-bandlimited) to the morph input for normal operation connect an attenuatable LFO to the mofs input to "swing" the morphing connect note patterns to the note(1-4) inputs, these will be scaled to the selected key internally "PW" controls an exponential shaping of the phase, generating PW-modulation for all waveform-options "waveform" controls the selected "base-start" waveform "wChg" sets different waveforms for each voice, one knob for all possible combinations **use shift+ctrl to get to smaller bits "detune" offsets the pitch between the 4 voices. "key" sets the key of the scale. (negative values for minor scales)
Inlets
frac32 morph
frac32 mofs
frac32 note1
frac32 note2
frac32 note3
frac32 note4
frac32 PW
int32 waveform
bool32 active
Outlets
frac32buffer out
Parameters
frac32.s.map.pitch pitch
frac32.s.map detune
frac32.s.map PW
int32 key
int32 waveform
frac32.u.map wChg
uint32_t phase[8];
uint32_t phose[8];
uint32_t phise[8];
int32_t wave[8];
int32_t freq[8];
int form[8];
int i;
int32_t base[12] = {0, 0, 2, 2, 4, 5, 5, 7, 7, 9, 9, 11};
int32_t sum;
int m1trig[4];
int m2trig[4];
int note[4];
int octave[4];
int32_t marph[4];
int32_t mirph[4];
int32_t morph[4];
int32_t LP1;
int32_t LP2;
int32_t HP;
int32_t PW;if (inlet_active > 0) {
for (i = 0; i < 4; i++) {
int32_t a;
a = (inlet_morph + i * inlet_mofs) & ((1 << 27) - 1);
morph[i] = a < (1 << 26) ? a << 1 : (1 << 27) - ((a - (1 << 26)) << 1);
morph[i] = (morph[i] - (1 << 26)) * 8 / 6 + (1 << 26);
marph[i] = marph[i] + ((morph[i] - marph[i]) >> 1);
morph[i] = marph[i] < 0 ? 0 : marph[i];
morph[i] = morph[i] > (1 << 27) ? (1 << 27) : morph[i];
}
note[0] = (inlet_note1 + param_pitch) >> 21;
note[1] = (inlet_note2 + param_pitch) >> 21;
note[2] = (inlet_note3 + param_pitch) >> 21;
note[3] = (inlet_note4 + param_pitch) >> 21;
int key = (param_key * 7) - (param_key * 7) / 12 * 12;
for (i = 0; i < 4; i++) {
octave[i] = note[i] / 12;
note[i] = note[i] - octave[i] * 12;
note[i] = note[i] < 0 ? note[i] + 11 : note[i];
if ((morph[i] == 0) && (!(m1trig[i]))) {
MTOFEXTENDED((((base[note[i]] + octave[i] * 12)) << 21) + (key << 21) +
i * 53,
freq[i * 2])
form[i * 2] =
(inlet_waveform + param_waveform + (param_wChg >> (i * 2) * 3 + 8)) &
7;
m1trig[i] = 1;
} else if (!(morph[i] == 0)) {
m1trig[i] = 0;
}
if (!(morph[i] == (1 << 27)) && (!(m2trig[i]))) {
MTOFEXTENDED((((base[note[i]] + octave[i] * 12)) << 21) + (key << 21) +
i * 47,
freq[i * 2 + 1])
form[i * 2 + 1] = (inlet_waveform + param_waveform +
(param_wChg >> (i * 2 + 1) * 3 + 8)) &
7;
m2trig[i] = 1;
} else if ((morph[i] == (1 << 27))) {
m2trig[i] = 0;
}
}
}if (inlet_active > 0) {
PW = PW +
(((((param_PW + inlet_PW + (1 << 27)) & ((1 << 28) - 1)) - (1 << 27)) -
PW) >>
8);
sum = 0;
for (i = 0; i < 4; i++) {
mirph[i] = mirph[i] + ((marph[i] - mirph[i]) >> 8);
morph[i] = mirph[i] < 0 ? 0 : mirph[i];
morph[i] = morph[i] > (1 << 27) ? (1 << 27) : morph[i];
}
for (i = 0; i < 8; i++) {
phase[i] += freq[i] + ((i * param_detune) >> 11);
if (PW >= 0) {
phose[i] = (___SMMUL(phase[i] >> 1, phase[i] >> 1) << 2);
} else if (PW < 0) {
phose[i] = ((1 << 32) - 1) - phase[i];
phose[i] = ___SMMUL(phose[i] >> 1, phose[i] >> 1) << 2;
phose[i] = (((1 << 32) - 1) - phose[i]);
}
phise[i] =
((___SMMUL(phase[i] >> 2, ((1 << 27) - (PW >= 0 ? PW : -PW)) << 3)
<< 3) +
((___SMMUL(phose[i] >> 1, (PW > 0 ? PW : -PW) << 3) << 2)))
<< 1;
switch (form[i] > 0 ? form[i] : 0) {
case 0:
SINE2TINTERP(phise[i], wave[i]);
break;
case 1:
wave[i] = phise[i] < (1 << 31)
? ((phise[i] - (1 << 30)) << 1)
: ((1 << 31) - (phise[i] - (1 << 30))) << 1;
break;
case 2:
wave[i] = phise[i] < (1 << 31) ? ((phise[i] - (1 << 30)) << 1)
: ((1 << 31) - (phise[i] - (1 << 30)));
break;
case 3:
wave[i] = phise[i] < (1 << 31) ? ((phise[i] - (1 << 30)) << 1)
: ((1 << 30) - (phise[i] - (1 << 30)));
break;
case 4:
wave[i] = phise[i] < (1 << 31)
? ((phise[i] - (1 << 30)) << 1) - (1 << 27)
: -((1 << 30) - (phise[i] - (1 << 30))) - (1 << 27);
break;
case 5:
wave[i] = phise[i] < (1 << 31) ? ((phise[i])) << 1
: (-(phise[i] - (1 << 30))) << 1;
break;
case 6:
wave[i] = phise[i] - (1 << 31);
break;
case 7:
wave[i] = (phise[i]) > ((((PW > 0 ? PW : -PW) << 5) / (1 + i)) &
((1 << 31) - 1))
? (1 << 30)
: -(1 << 30);
break;
}
}
for (i = 0; i < 4; i++) {
sum += ___SMMUL(morph[i], wave[i * 2]) +
___SMMUL((1 << 27) - morph[i], wave[i * 2 + 1]);
}
LP1 = LP1 + (((sum >> 2) - LP1) >> 2);
HP = HP + ((LP1 - HP) >> 12);
outlet_out = LP1 - HP;
// outlet_out=wave[0]>>5;
}
