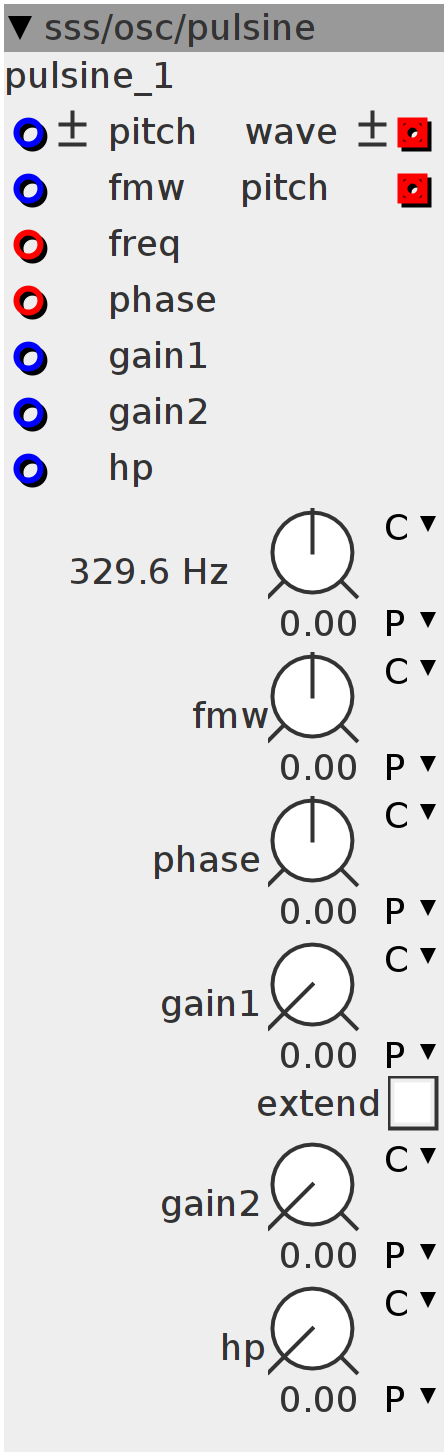

pulsine
modded waveform oscillator able to make saw, sine and pulse waveforms using the "gain" parameters -"gain1" controls the phase width going into the sine shaper, saturated. -"extend" enables the gain to go lower, enabling saw->sine->pulse morphing instead of only sine->pulse. -"gain2" controls the width of the sine going into a saturator. the pitch output outputs the combined pitch information (parameter+input+FM-signal), this can be used together with the "mostfilter" module to filter the waveform while keeping track of the modulated pitch in real time. -the result goes through a highpass filter to remove DC-offset
Inlets
frac32.bipolar pitch
frac32 fmw
frac32 gain1
frac32 gain2
frac32 hp
frac32buffer frequency
frac32buffer phase
Outlets
frac32buffer.bipolar sine wave
frac32buffer pitch
Parameters
frac32.s.map.pitch pitch
frac32.s.map fmw
frac32.s.map phase
frac32.u.map gain1
frac32.u.map gain2
frac32.u.map hp
bool32.tgl extend
uint32_t Phase;
int32_t sig;
int32_t hp;
int32_t HP;Phase = 0;
hp = 0;int32_t gain1 = param_gain1 + inlet_gain1 + (4 << 21);
if (param_extend > 0) {
gain1 += (4 << 21);
}
int32_t gain2 = param_gain2 + inlet_gain2 + (4 << 21);
int32_t fmw = inlet_fmw + param_fmw;int32_t mod = ___SMMUL(inlet_freq << 3, fmw << 3);
int32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch + mod, freq);
int32_t HP;
MTOF((param_hp << 1) + param_pitch + inlet_pitch + inlet_hp + mod - (1 << 26),
HP);
Phase += freq;
int32_t r;
int32_t p2 = Phase + (inlet_phase << 4);
SINE2TINTERP((__SSAT(___SMMUL(gain1 << 4, p2), 28) << 4) + (param_phase << 1),
r)
sig = __SSAT(___SMMUL(gain2 << 4, r), 27);
hp = ___SMMLA((sig - hp) << 1, HP, hp);
outlet_wave = sig - hp;
outlet_pitch = param_pitch + inlet_pitch + mod;
