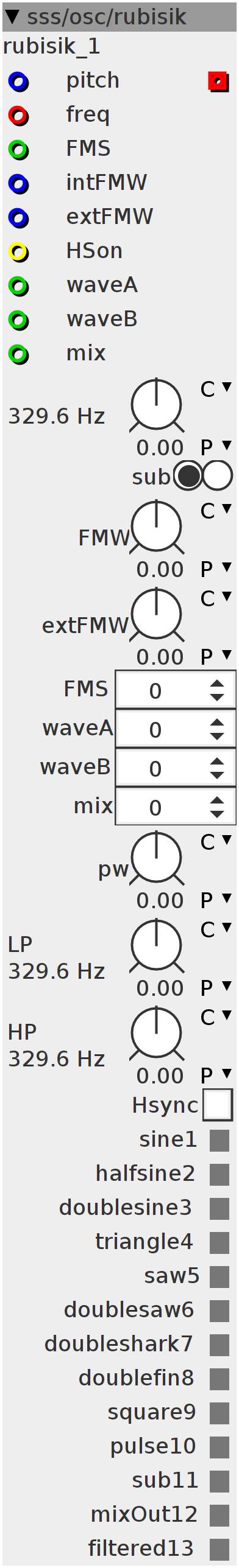

An emulation of the eurorack rubicon oscillator with some extra waveforms and options INPUTS: pitch: well.. it's the pitch.. freq: linear thru-zero highpass-filtered FM audio input. FMS: select waveform for internal frequency modulation intFMW: adds to the width of the internal linear thru-zero FM. extFMW: connect an envelope of LFO to open up the external FM. HSon: switches hardsync to on when it receives a high gate. waveA: select waveform for osc 1 waveB: select waveform for osc 2 mix: select waveform for controlling the crossfade between osc 1 and osc2 EXTRA CONTROLS: sub: transposes the sub oscillator 1 octave FMW: controls the frequency modulation width-offset for the internal FM extFMW: controls the width of the incoming k-rate envelope/LFO on the extFMW input FMS: same as input waveA: same as input waveB: same as input mix: same as input pw: sets pulse width of pulse-waveform(9) LP: sets lowpass frequency HP: sets highpass frequency Hsync: manual control for syncing the oscillator to the "freq" input DISPLAYS the displays show the waveforms that are selected.
Author: Remco van der Most
License: BSD
Github: sss/osc/rubisik.axo

Inlets

int32 FMS

int32 waveA

int32 waveB

int32 mix

bool32 HSon

frac32 pitch

frac32 intFMW

frac32 extFMW

frac32buffer phase increment

Outlets

frac32buffer out

Parameters

frac32.s.map.pitch pitch

frac32.s.map.pitch LP

frac32.s.map.pitch HP

int32.hradio sub

frac32.s.map FMW

frac32.s.map extFMW

frac32.s.map pw

int32 FMS

int32 waveA

int32 waveB

int32 mix

bool32.tgl Hsync

Displays

bool32 sine1

bool32 halfsine2

bool32 doublesine3

bool32 triangle4

bool32 saw5

bool32 doublesaw6

bool32 doubleshark7

bool32 doublefin8

bool32 square9

bool32 pulse10

bool32 sub11

bool32 mixOut12

bool32 filtered13

Declaration
uint32_t phase;
uint32_t Phase;
int32_t wave[13];
int select[13];
int i;
int32_t FM;
int32_t HP;
int32_t LP;
int32_t mix;
int htrig;
int32_t fmw1;
int32_t fmw2;
int32_t intFMW;
int32_t INTFMW;
Init
Phase = 0;
Control Rate
uint32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
freq = (freq >> (1 + param_sub));

int waveA = __USAT(param_waveA + inlet_waveA, 8);
int waveB = __USAT(param_waveB + inlet_waveB, 8);
int MIX = __USAT(param_mix + inlet_mix, 8);
int FmS = __USAT(param_FMS + inlet_FMS, 8);
waveA = waveA - (waveA / 11) * 11;
waveB = waveB - (waveB / 11) * 11;
MIX = MIX - (MIX / 13) * 13;
FmS = FmS - (FmS / 13) * 13;
waveA = waveA > 0 ? waveA : -waveA;
waveB = waveB > 0 ? waveB : -waveB;
MIX = MIX > 0 ? MIX : -MIX;
FmS = FmS > 0 ? FmS : -FmS;

for (i = 0; i < 13; i++) {
  select[i] =
      ((waveA == i) + (waveB == i) + (MIX == i) + (FmS == i)) > 0 ? 1 : 0;
}

int32_t lp;
MTOF(param_LP, lp);

int32_t hp;
MTOF(param_HP, hp);

fmw1 = ___SMMUL(param_extFMW << 3, inlet_extFMW << 2);
INTFMW = param_FMW + inlet_intFMW;

disp_sine1 = select[0];
disp_halfsine2 = select[1];
disp_doublesine3 = select[2];
disp_triangle4 = select[3];
disp_saw5 = select[4];
disp_doublesaw6 = select[5];
disp_doubleshark7 = select[6];
disp_doublefin8 = select[7];
disp_square9 = select[8];
disp_pulse10 = select[9];
disp_sub11 = select[10];
disp_mixOut12 = select[11];
disp_filtered13 = select[12];
Audio Rate
if (param_Hsync + inlet_HSon > 0) {
  if ((inlet_freq > 0) && !htrig) {
    htrig = 1;
    phase = 0;
  } else if (inlet_freq < 0) {
    htrig = 0;
  }
}

fmw2 = fmw2 + (((fmw1)-fmw2) >> 6);
intFMW = intFMW + (((INTFMW)-intFMW) >> 6);
int32_t Fm;
Fm = ___SMMUL(fmw2 << 4, inlet_freq << 3) +
     ___SMMUL(intFMW << 4, (wave[FmS]) << 3);
FM = FM + ((Fm - FM) >> 9);
phase += freq + ___SMMUL(freq << 3, (FM - Fm) << 2);

if (select[10] > 0) {
  int32_t sub = (phase + (1 << 29));
  sub = sub > 0 ? (1 << 26) : -(1 << 26);
  wave[10] = sub;
}

Phase = phase << (1 + param_sub);
int32_t Sphase = Phase + (1 << 30);
int32_t doublesaw;
doublesaw = Phase << 1;

if (select[0] > 0) {
  int32_t sine;
  SINE2TINTERP(Phase, sine)
  sine = sine >> 5;
  wave[0] = sine;
}

if (select[1] > 0) {
  int32_t sine;
  SINE2TINTERP((Sphase) >> 1, sine)
  sine = sine >> 5;
  wave[1] = sine;
}

if (select[2] > 0) {
  int32_t sine;
  SINE2TINTERP(Phase << 1, sine)
  sine = sine >> 5;
  wave[2] = sine;
}

if (select[9] > 0) {
  int32_t pulse;
  pulse = Sphase > (param_pw << 4) ? (1 << 26) : -(1 << 26);
  wave[9] = pulse;
}

if (select[8] > 0) {
  int32_t square;
  square = Sphase > 0 ? (1 << 26) : -(1 << 26);
  wave[8] = square;
}

if (select[4] > 0) {
  int32_t saw = (Sphase + (1 << 31)) >> 5;
  wave[4] = saw;
}

if (select[6] > 0) {
  int32_t doublesharks =
      (doublesaw > 0 ? (1 << 31) - doublesaw : doublesaw) >> 5;
  wave[6] = doublesharks;
}

if (select[7] > 0) {
  int32_t doublefin = (doublesaw > 0 ? doublesaw : (1 << 31) - doublesaw) >> 5;
  wave[7] = doublefin;
}

if (select[5] > 0) {
  doublesaw = doublesaw >> 5;
  wave[5] = doublesaw;
}

if (select[3] > 0) {
  int32_t tri;
  tri = Sphase > 0 ? Sphase : -Sphase;
  tri = (tri - (1 << 30)) >> 4;
  wave[3] = tri;
}

mix = ___SMMUL(wave[waveA] << 3, (wave[MIX] + (1 << 26)) << 2) +
      ___SMMUL(wave[waveB] << 3, ((1 << 27) - (wave[MIX] + (1 << 26))) << 2);
wave[11] = mix;
HP = ___SMMLA((mix - HP) << 1, hp, HP);
LP = ___SMMLA((mix - HP - LP) << 1, lp, LP);

wave[12] = LP;
outlet_out = LP;
