rubisikTable
An emulation of the eurorack rubicon oscillator with some extra waveforms and options INPUTS: pitch: well.. it's the pitch.. freq: linear thru-zero highpass-filtered FM audio input. FMS: select waveform for internal frequency modulation intFMW: adds to the width of the internal linear thru-zero FM. extFMW: connect an envelope of LFO to open up the external FM. HSon: switches hardsync to on when it receives a high gate. waveA: select waveform for osc 1 waveB: select waveform for osc 2 mix: select waveform for controlling the crossfade between osc 1 and osc2 tableform1: select waveform for the first table tableform2: select waveform for the second table EXTRA CONTROLS: sub: transposes the sub oscillator 1 octave FMW: controls the frequency modulation width-offset for the internal FM extFMW: controls the width of the incoming k-rate envelope/LFO on the extFMW input FMS: same as input waveA: same as input waveB: same as input mix: same as input tableform1: same as input tableform2: same as input pw: sets pulse width of pulse-waveform(9) LP: sets lowpass frequency HP: sets highpass frequency Hsync: manual control for syncing the oscillator to the "freq" input DISPLAYS the displays show the waveforms that are selected.

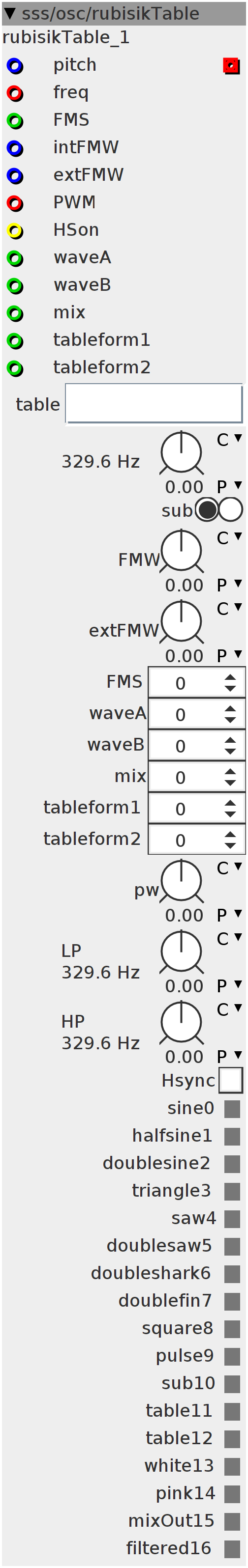

Inlets
int32 FMS
int32 waveA
int32 waveB
int32 mix
int32 tableform1
int32 tableform2
bool32 HSon
frac32 pitch
frac32 intFMW
frac32 extFMW
frac32buffer phase increment
frac32buffer PWM
Outlets
frac32buffer out
Parameters
frac32.s.map.pitch pitch
frac32.s.map.pitch LP
frac32.s.map.pitch HP
int32.hradio sub
frac32.s.map FMW
frac32.s.map extFMW
frac32.s.map pw
int32 FMS
int32 waveA
int32 waveB
int32 mix
int32 tableform1
int32 tableform2
bool32.tgl Hsync
Attributes
objref table
Displays
bool32 sine0
bool32 halfsine1
bool32 doublesine2
bool32 triangle3
bool32 saw4
bool32 doublesaw5
bool32 doubleshark6
bool32 doublefin7
bool32 square8
bool32 pulse9
bool32 sub10
bool32 table11
bool32 table12
bool32 white13
bool32 pink14
bool32 mixOut15
bool32 filtered16
static const int noct = 7;
int32_t obuf[noct];
int32_t sum;
uint32_t seed;
int index;
const int8_t *dyadictree(void) {
static const int8_t dtree[] = {
0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 4, 0, 1, 0, 2, 0, 1,
0, 3, 0, 1, 0, 2, 0, 1, 0, 5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2,
0, 1, 0, 4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 6, 0, 1,
0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 4, 0, 1, 0, 2, 0, 1, 0, 3,
0, 1, 0, 2, 0, 1, 0, 5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1,
0, 4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, -1};
return dtree;
}
uint32_t phase;
uint32_t Phase;
int32_t wave[17];
int select[17];
int i;
int32_t FM;
int32_t HP;
int32_t LP;
int32_t mix;
int htrig;
int32_t fmw1;
int32_t fmw2;
int32_t intFMW;
int32_t INTFMW;Phase = 0;
int i;
for (i = 0; i < noct; i++)
obuf[i] = 0;
index = 0;
sum = 0;
seed = 0x830af41e + GenerateRandomNumber();uint32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
freq = (freq >> (1 + param_sub));
int waveA = __USAT(param_waveA + inlet_waveA, 8);
int waveB = __USAT(param_waveB + inlet_waveB, 8);
int MIX = __USAT(param_mix + inlet_mix, 8);
int FmS = __USAT(param_FMS + inlet_FMS, 8);
waveA = waveA - (waveA / 17) * 17;
waveB = waveB - (waveB / 17) * 17;
MIX = MIX - (MIX / 17) * 17;
FmS = FmS - (FmS / 17) * 17;
waveA = waveA > 0 ? waveA : -waveA;
waveB = waveB > 0 ? waveB : -waveB;
MIX = MIX > 0 ? MIX : -MIX;
FmS = FmS > 0 ? FmS : -FmS;
for (i = 0; i < 17; i++) {
select[i] =
((waveA == i) + (waveB == i) + (MIX == i) + (FmS == i)) > 0 ? 1 : 0;
}
int32_t lp;
MTOF(param_LP, lp);
int32_t hp;
MTOF(param_HP, hp);
fmw1 = ___SMMUL(param_extFMW << 3, inlet_extFMW << 2);
INTFMW = param_FMW + inlet_intFMW;
disp_sine0 = select[0];
disp_halfsine1 = select[1];
disp_doublesine2 = select[2];
disp_triangle3 = select[3];
disp_saw4 = select[4];
disp_doublesaw5 = select[5];
disp_doubleshark6 = select[6];
disp_doublefin7 = select[7];
disp_square8 = select[8];
disp_pulse9 = select[9];
disp_sub10 = select[10];
disp_table11 = select[11];
disp_table12 = select[12];
disp_white13 = select[13];
disp_pink14 = select[14];
disp_mixOut15 = select[15];
disp_filtered16 = select[16];
int16_t tableform1 = (inlet_tableform1 + param_tableform1) & 1023;
int16_t tableform2 = (inlet_tableform2 + param_tableform2) & 1023;if (param_Hsync + inlet_HSon > 0) {
if ((inlet_freq > 0) && !htrig) {
htrig = 1;
phase = 0;
} else if (inlet_freq < 0) {
htrig = 0;
}
}
fmw2 = fmw2 + (((fmw1)-fmw2) >> 6);
intFMW = intFMW + (((INTFMW)-intFMW) >> 6);
int32_t Fm;
Fm = ___SMMUL(fmw2 << 4, inlet_freq << 3) +
___SMMUL(intFMW << 4, (wave[FmS]) << 3);
FM = FM + ((Fm - FM) >> 9);
phase += freq + ___SMMUL(freq << 3, (FM - Fm) << 2);
if (select[10] > 0) {
int32_t sub = (phase + (1 << 29));
sub = sub > 0 ? (1 << 26) : -(1 << 26);
wave[10] = sub;
}
Phase = phase << (1 + param_sub);
int32_t Sphase = Phase + (1 << 30);
int32_t doublesaw;
doublesaw = Phase << 1;
if (select[0] > 0) {
int32_t sine;
SINE2TINTERP(Phase, sine)
sine = sine >> 5;
wave[0] = sine;
}
if (select[1] > 0) {
int32_t sine;
SINE2TINTERP((Sphase) >> 1, sine)
sine = sine >> 5;
wave[1] = sine;
}
if (select[2] > 0) {
int32_t sine;
SINE2TINTERP(Phase << 1, sine)
sine = sine >> 5;
wave[2] = sine;
}
if (select[9] > 0) {
int32_t pulse;
pulse = Sphase > ((param_pw + inlet_PWM) << 4) ? (1 << 26) : -(1 << 26);
wave[9] = pulse;
}
if (select[8] > 0) {
int32_t square;
square = Sphase > 0 ? (1 << 26) : -(1 << 26);
wave[8] = square;
}
if (select[4] > 0) {
int32_t saw = (Sphase + (1 << 31)) >> 5;
wave[4] = saw;
}
if (select[6] > 0) {
int32_t doublesharks =
(doublesaw > 0 ? (1 << 31) - doublesaw : doublesaw) >> 5;
wave[6] = doublesharks;
}
if (select[7] > 0) {
int32_t doublefin = (doublesaw > 0 ? doublesaw : (1 << 31) - doublesaw) >> 5;
wave[7] = doublefin;
}
if (select[5] > 0) {
doublesaw = doublesaw >> 5;
wave[5] = doublesaw;
}
if (select[3] > 0) {
int32_t tri;
tri = Sphase > 0 ? Sphase : -Sphase;
tri = (tri - (1 << 30)) >> 4;
wave[3] = tri;
}
if (select[11] > 0) {
int32_t table;
table = attr_table.array[(((Phase >> 22) & 1023) + (tableform1 << 10)) &
attr_table.LENGTHMASK];
wave[11] = table;
}
if (select[12] > 0) {
int32_t table;
table = attr_table.array[(((Phase >> 22) & 1023) + (tableform2 << 10)) &
attr_table.LENGTHMASK];
wave[12] = table;
}
if (select[13] > 0) {
wave[13] = (int32_t)(GenerateRandomNumber());
}
if (select[14] > 0) {
int o = dyadictree()[index++];
if (o == -1) {
index = 0;
} else {
sum -= obuf[o];
seed = (seed * 196314165) + 907633515;
obuf[o] = ((int32_t)seed) >> 7;
sum += obuf[o];
}
seed = (seed * 196314165) + 907633515;
wave[14] = sum + (((int32_t)seed) >> 7);
}
mix = ___SMMUL(wave[waveA] << 3, (wave[MIX] + (1 << 26)) << 2) +
___SMMUL(wave[waveB] << 3, ((1 << 27) - (wave[MIX] + (1 << 26))) << 2);
wave[15] = mix;
HP = ___SMMLA((mix - HP) << 1, hp, HP);
LP = ___SMMLA((mix - HP - LP) << 1, lp, LP);
wave[16] = LP;
outlet_out = LP;
