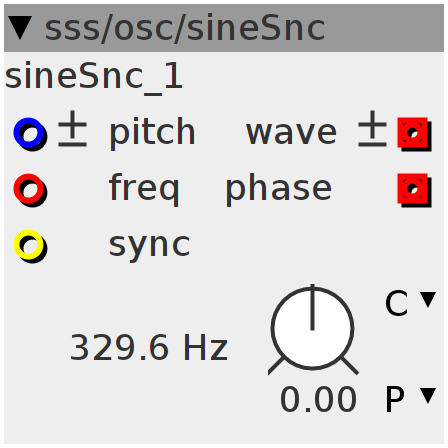

sineSnc
sine wave oscillator with an krate sync input for use in basekicks, where you want to sync the start of the sine (0) at each trigger to keep the full impact of the punch without a click.
Inlets
frac32.bipolar pitch
frac32buffer frequency
bool32 sync
Outlets
frac32buffer phase
frac32buffer.bipolar sine wave
Parameters
frac32.s.map.pitch pitch
Declaration
uint32_t Phase;
bool strg;
Init
Phase = 0;
Control Rate
int32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
if ((inlet_sync > 0) && !strg) {
strg = 1;
Phase = 0;
} else if (inlet_sync == 0) {
strg = 0;
}
Audio Rate
Phase += freq + inlet_freq;
int32_t r;
int32_t p2 = Phase;
SINE2TINTERP(p2, r)
outlet_wave = (r >> 4);
outlet_phase = Phase;
