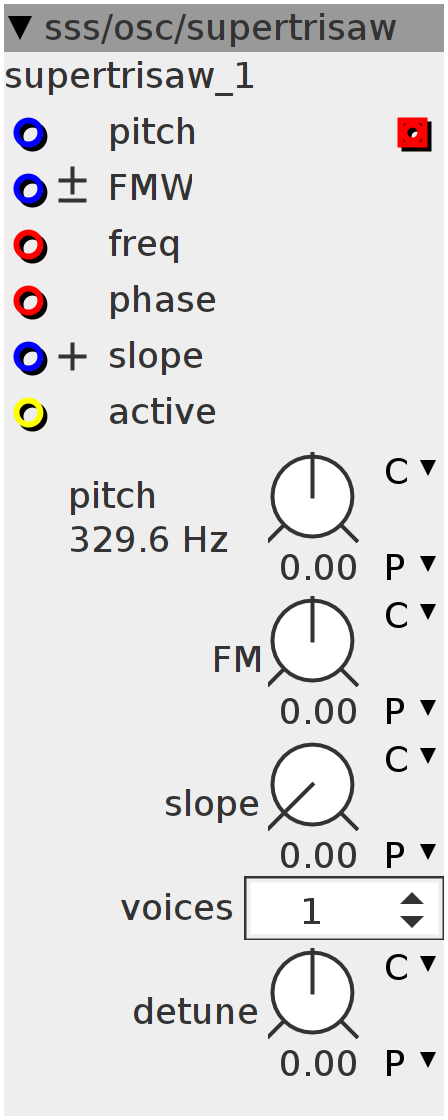

supertrisaw
super triangle/saw-morpher up to 8 voices
Inlets
frac32.positive slope
bool32 active
frac32 pitch
frac32.bipolar FMW
frac32buffer freq
frac32buffer phase
Outlets
frac32buffer out
Parameters
frac32.s.map FM
frac32.s.map detune
frac32.u.map slope
int32 voices
frac32.s.map.pitch pitch
uint32_t phase[8];
uint32_t Phase[8];
float32_t slope1n[8];
uint64_t slope1d[8];
uint64_t slope1e[8];
int32_t out[8];
int32_t Slope;
int32_t Fmw;
int32_t FMW;
int i;
int32_t freq;
int32_t fmw;
int32_t slape;if (inlet_active > 0) {
MTOF(param_pitch + inlet_pitch, freq)
slape = __SSAT(param_slope + inlet_slope, 28);
fmw = __SSAT(param_FM + inlet_FMW, 29);
}if (inlet_active > 0) {
int32_t sum = 0;
Slope = Slope + ((slape - Slope) >> 6);
Fmw = Fmw + ((fmw - Fmw) >> 6);
FMW = ___SMMUL(inlet_freq << 4, (Fmw) << 2);
for (i = 0; i < param_voices; i++) {
phase[i] += freq * (1 + i) + ___SMMUL(FMW << 4, (freq * (1 + i)) << 4) +
i * (param_detune >> 6);
Phase[i] = phase[i] + (inlet_phase << 5);
slope1d[i] = (1 << 27) - Slope;
if (Phase[i] < (Slope << 5)) {
slope1n[i] = ((float)((1 << 31))) / ((float)(Slope));
out[i] = ((Phase[i] >> 5) * slope1n[i]) + (1 << 30);
} else {
slope1n[i] = ((float)((1 << 31))) / ((float)(slope1d[i]));
out[i] = -(((Phase[i] - (Slope << 5)) >> 5) * slope1n[i]) - (1 << 30);
}
sum += (out[i] >> 4) / (1 + i / 2);
}
outlet_out = sum >> 1;
} else {
outlet_out = 0;
}
