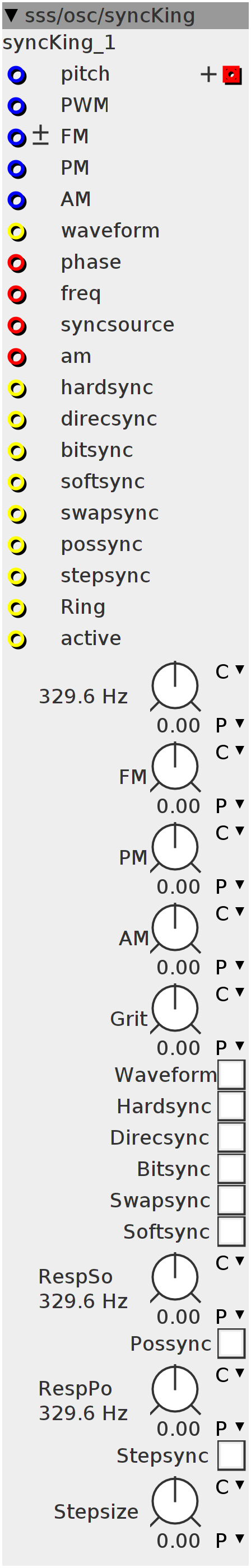

syncKing
Oscillator with lots of sync options and modulation: -two waveform functions, each with their own "PWM" control mode. -control inlets for FM and AM width (eg for envelopes). FM is linear FM with frequency dependent modulation-index-width. -independent audio inlets for phase, FM, AM and sync (of course you can all feed them the same signal). -hardsync: resets phase to 0 immediately -direcsync: reverses playdirection at sync -bitsync: syncs phase to && bit of sync input -softsync: syncs phase to 0, but with LP filter. -swapsync: inverses output polarity -possync: depending on phase position, soft-syncs phase forwards or backwards. -stepsync: at sync moves phase at the amount of the "RespPo" setting. -"grit" parameter feeds output back to phase position.
Inlets
bool32 waveform
bool32 hardsync
bool32 direcsync
bool32 bitsync
bool32 softsync
bool32 swapsync
bool32 possync
bool32 stepsync
bool32 Ring
bool32 active
frac32buffer phase
frac32buffer phase increment
frac32buffer syncsource
frac32buffer am
frac32 pitch
frac32 PWM
frac32 PM
frac32 AM
frac32.bipolar FM
Outlets
frac32buffer.positive phasor wave
Parameters
frac32.s.map FM
frac32.s.map PM
frac32.s.map AM
frac32.s.map Grit
frac32.s.map Stepsize
bool32.tgl Waveform
bool32.tgl restarts phase at zero
bool32.tgl (inverses play direction
bool32.tgl Bitsync
bool32.tgl Swapsync
bool32.tgl Softsync
bool32.tgl Possync
bool32.tgl Stepsync
frac32.s.map.pitch pitch
frac32.s.map.pitch RespSo
frac32.s.map.pitch RespPo
uint32_t Phase;
int hard;
int soft;
int32_t val1;
int32_t smooth1;
int sync;
int async;
int direction;
int dir;
int swap;
int32_t swp;
int32_t val2;
int position;
int32_t val3;
int32_t smooth2;
int step;
int32_t stphase;
int32_t phrase;
int32_t phasu;
int32_t phasU;
int32_t wa;
int32_t wb;
int32_t wc;
int waveform;
int32_t FMW;
int bit;
int32_t stAM;
int32_t PosAM;
int32_t InvAM;
int32_t AM;
int32_t feed;
int32_t afeed;
int32_t bfeed;
int32_t FW;
int32_t phaswidth;
int32_t phsw;
uint32_t freq;
int32_t f1;
int32_t f2;
int32_t f3;Phase = 0;
dir = 1;
swp = 1;
val1 = 0;
val2 = 1;
val3 = 0;if (inlet_active > 0) {
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
MTOF(param_RespSo, f1);
MTOF(param_pitch + (1 << 21) * 24, f2);
MTOF(param_RespPo, f3);
step = inlet_stepsync + param_Stepsync;
soft = inlet_softsync + param_Softsync;
position = inlet_possync + param_Possync;
direction = inlet_direcsync + param_Direcsync;
hard = inlet_hardsync + param_Hardsync;
swap = inlet_swapsync + param_Swapsync;
waveform = inlet_waveform + param_Waveform;
bit = inlet_bitsync + param_Bitsync;
FW = param_FM + inlet_FM;
PosAM = param_AM + inlet_AM;
PosAM = (PosAM > (1 << 27)) ? (1 << 27) : PosAM;
PosAM = (PosAM < (-1 << 27)) ? (-1 << 27) : PosAM;
stAM = (PosAM >= 0) ? PosAM : -PosAM;
InvAM = (1 << 27) - stAM;
phaswidth = (inlet_PM + param_PM) << 3;
}if (inlet_active > 0) {
phsw = ___SMMUL(inlet_phase << 3, phaswidth << 2);
sync = inlet_syncsource;
if (step > 0) {
if (sync > 0 && async <= 0)
stphase += param_Stepsize << 5;
}
if (soft > 0) {
if (sync > 0 && async <= 0) {
smooth1 = Phase - val1 + val2 + stphase;
}
val1 = ___SMMLA((smooth1 - val1) << 1, f1, val1);
}
if (position > 0) {
if (sync > 0 && async <= 0) {
if (Phase > (1 << 31)) {
smooth2 = (1 << 32 - (Phase - val1 + val2));
} else {
smooth2 = -(Phase - val1 + val2 + stphase);
}
}
val3 = ___SMMLA((smooth2 - val3) << 1, f3, val3);
}
if (val3 == (1 << 32)) {
val3 = 0;
smooth2 = 0;
}
if (direction > 0) {
if (sync > 0 && async <= 0)
dir = -dir;
}
if (hard > 0) {
if (sync > 0 && async <= 0)
Phase = 0;
}
if (bit > 0) {
Phase = (Phase | sync);
}
if (swap > 0) {
if (sync > 0 && async <= 0) {
swp = -swp;
}
}
feed = ___SMMUL(outlet_out << 4, param_Grit << 4);
afeed = ___SMMLA((feed - afeed) << 1, f2, afeed);
val2 = ___SMMLA((afeed - val2) << 1, f2, val2);
FMW = ___SMMUL(inlet_freq << 3, freq << 5);
Phase += ((freq) + ___SMMUL((FW) << 3, FMW << 2)) * dir;
phrase = (((Phase - val1 + val3 + stphase) >> 5) * swp + phsw + val2) &
((1 << 27) - 1);
async = sync;
switch (waveform > 0 ? 1 : 0) {
case 0:
int32_t temp;
SINE2TINTERP((phrase + phsw) << 5, temp)
phasU = ___SMMUL(inlet_PWM << 3, temp >> 3);
SINE2TINTERP((phasU + phrase) << 5, phasu);
phasu = (phasu >> 5) + (1 << 26);
break;
case 1:
wa = (phrase) & ((1 << 27) - 1);
wb = (inlet_PWM >> 1) + (1 << 26);
wc = (1 << 27) - (wb);
if (wa < wb) {
phasu = wa * ((1 << 30) / (wb)) >> 3;
} else {
phasu = (1 << 27) - ((wa - (wb)) * ((1 << 30) / wc) >> 3);
}
break;
}
AM = ___SMMUL(inlet_am << 3, phasu << 2);
outlet_out = ___SMMUL((phasu - (1 << 26)) << 3, InvAM << 2) +
___SMMUL(PosAM << 3, AM << 2);
} else {
outlet_out = 0;
}
