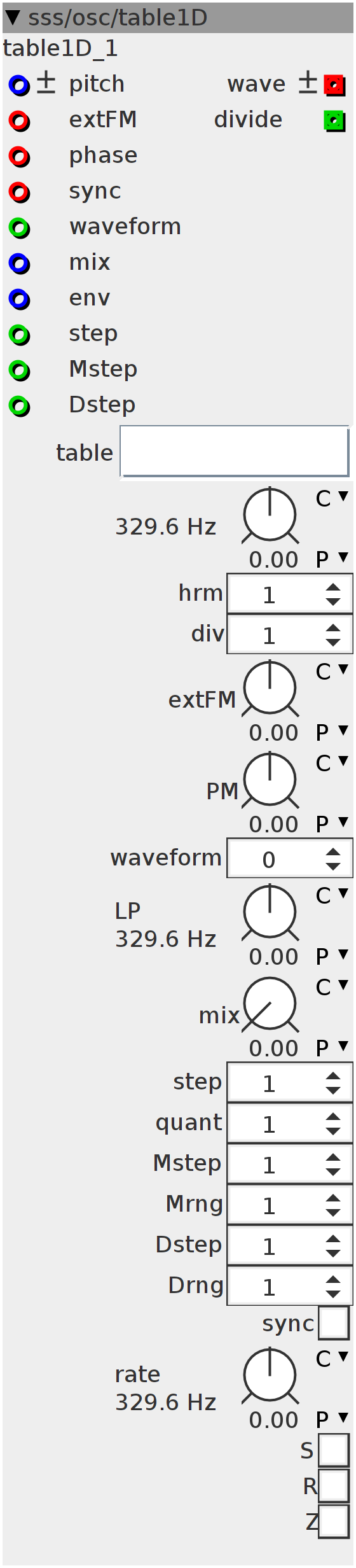

table1D
DON'T FORGET TO ADD AN ENVELOPE/VOLUME CONTROL AT THE "ENV" INPUT!!! wavetable oscillator that can linearyly morph through the table in a set amount of steps and stepsize. loads wavetables created with the "TheCreator" module. Has external frequency modulation, phase modulation and sync. -hrm and div allow to set the oscillator to a ratio to the root-pitch -extFM controls the external FM width -waveform offsets the startposition of the table readout -LP dampens the high frequencies/smooths waveform -mix controls the morph through the wavetable AND harmonic ratio offsets -step sets the stepsize with which you morph through the table -quant sets the amount of waveforms you go through with the mix-control -Mstep controls the stepsize of the harmonic multiplier -Mrng sets the maximum harmonic multiplier that can be reached -Dstep sets the stepsize of the harmonic division -Drng sets the maximum harmonic division that can be reached
Inlets
frac32 mix
frac32 env
frac32.bipolar pitch
frac32buffer frequency
frac32buffer phase
frac32buffer sync
int32 waveform
int32 step
int32 Mstep
int32 Dstep
Outlets
int32 divide
frac32buffer.bipolar wave
Parameters
frac32.u.map mix
bool32.tgl sync
bool32.tgl S
bool32.tgl R
bool32.tgl Z
frac32.s.map.pitch root
frac32.s.map.pitch LP
frac32.s.map.pitch rate
int32 hrm
int32 div
int32 waveform
int32 step
int32 quant
int32 Mstep
int32 Mrng
int32 Dstep
int32 Drng
frac32.s.map extFM
frac32.s.map PM
Attributes
objref table
uint32_t PhaseA;
uint32_t PhaseB;
int32_t mix[2];
int32_t ccomp;
int32_t read1;
int32_t read2;
int32_t P[6];
int i;
int Strig;
int32_t wave;
int32_t smooth;
int32_t F;
int32_t tableOsc(int32_t inst, int32_t PhsA, int32_t PhsB, int32_t preset1a,
int32_t preset1b, int32_t Mix) {
read1 =
attr_table
.array[(((PhsA)&1023) + ((preset1a) << 10)) & attr_table.LENGTHMASK];
read2 =
attr_table
.array[(((PhsB)&1023) + ((preset1b) << 10)) & attr_table.LENGTHMASK];
ccomp = (1 << 27) - Mix;
mix[inst] = ___SMMUL(ccomp << 3, read1 << 2) + ___SMMUL(Mix << 3, read2 << 2);
};
int32_t tablemix(int32_t inst, int32_t WaveA, int32_t WaveB, int32_t Mix) {
mix[inst] = ___SMMUL(((1 << 27) - Mix) << 3, WaveA << 2) +
___SMMUL(Mix << 3, WaveB << 2);
}
uint64_t MIX1;
uint64_t MIX2;
uint64_t MIX3;
int32_t MX(int32_t T) {
T = T > 0 ? T : -T;
T = T & ((1 << 28) - 1);
F = T > (1 << 27) ? (1 << 28) - T : T;
}
int32_t freq;
int32_t FreqA;
int32_t FreqB;
int32_t phaseA;
int32_t phaseB;
uint32_t Sync;PhaseA = 0;
PhaseB = 0;int32_t rate;
MTOFEXTENDED(param_rate, rate)
rate = -rate;
int16_t Preset = (param_waveform + inlet_waveform) & 1023;
MIX1 = param_mix + inlet_mix;
MX(MIX1);
MIX1 = F;
P[0] = ((((MIX1 * param_quant) >> 27) + 1) >> 1) << 1;
P[1] = (((MIX1 * param_quant) >> 28) << 1) + 1;
MIX1 =
(MIX1 - (((MIX1 * param_quant) >> 28) << 28) / param_quant) * param_quant;
MIX1 = MIX1 > (1 << 27) ? ((2 << 27) - MIX1) : MIX1;
P[2] = P[0] * (param_Mstep + inlet_Mstep);
P[3] = P[1] * (param_Mstep + inlet_Mstep);
P[2] = (P[2] - (P[2] / param_Mrng) * param_Mrng) + 1;
P[3] = (P[3] - (P[3] / param_Mrng) * param_Mrng) + 1;
P[4] = P[0] * (param_Dstep + inlet_Dstep);
P[5] = P[1] * (param_Dstep + inlet_Dstep);
P[4] = (P[4] - (P[4] / param_Drng) * param_Drng) + 1;
P[5] = (P[5] - (P[5] / param_Drng) * param_Drng) + 1;
P[0] = P[0] * (param_step + inlet_step) + Preset;
P[1] = P[1] * (param_step + inlet_step) + Preset;
int32_t f;
MTOF(param_LP, f)
MTOFEXTENDED(param_root + inlet_pitch, freq);
int32_t Afreq = (freq * (param_hrm) / param_div) * P[2] / P[4];
int32_t Bfreq = (freq * (param_hrm) / param_div) * P[3] / P[5];
outlet_divide = param_quant;if (((param_sync > 0) & (inlet_sync > 0)) && !Strig) {
if (param_S > 0) {
PhaseA = 0;
PhaseB = 0;
}
if (param_R > 0) {
PhaseA += rate;
PhaseB += rate;
}
if (param_Z > 0) {
PhaseA += Sync;
PhaseB += Sync;
}
Sync += rate;
Strig = 1;
} else if (inlet_sync < 1) {
Strig = 0;
}
FreqA = Afreq +
___SMMUL(___SMMUL(inlet_extFM << 4, param_extFM << 4) << 3, Afreq << 4);
FreqB = Bfreq +
___SMMUL(___SMMUL(inlet_extFM << 4, param_extFM << 4) << 3, Bfreq << 4);
PhaseA += FreqA;
PhaseB += FreqB;
phaseA = (PhaseA + (___SMMUL(inlet_phase << 3, param_PM << 2) << 4)) >> 22;
phaseB = (PhaseB + (___SMMUL(inlet_phase << 3, param_PM << 2) << 4)) >> 22;
tableOsc(0, phaseA, phaseB, P[0], P[1], MIX1);
mix[0] = ___SMMUL(mix[0] << 3, inlet_env << 2);
tablemix(0, mix[0], mix[1], MIX2);
smooth = __SMMLA((mix[0] - smooth) << 1, f, smooth);
outlet_wave = smooth;
