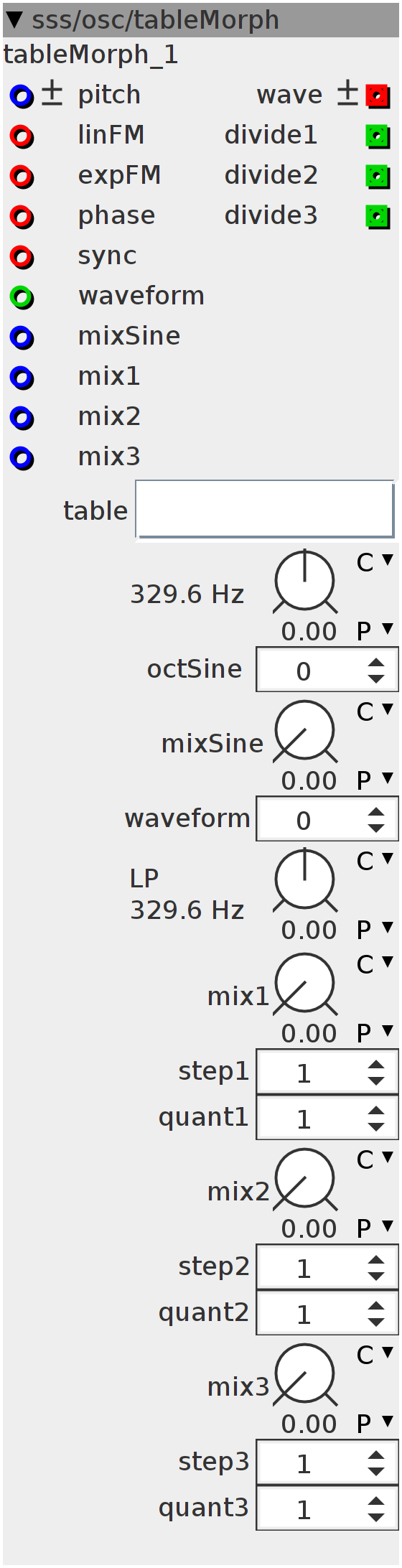

tableMorph
morphing wavetable oscillator loads wavetables created with the "TheCreator" module. mixes between the waveforms over 3 axes. X/Y/Z axis is controlled by mix1, mix2 and mix3 respectively. Range is unipolar fractional and negates the mix direction when over the min/max limits. step1, step2 and step3 control the stepsize between selected waveform-presets. quant1, quant2 and quant3 control how many waveforms will be played within the min/max range of the mix. This is multiplied by the steps1/2/3 to select the different waveforms. The set amount will also be send to the divide1/2/3 outputs to connect to the tempo-synced-LFO division-inputs. This keeps the rate of morph the same if you add more steps to the morph. Depending on the mix-position of all 3 axes, 1 up to 8 different waveforms can be mixed together. Controlling the mixes with tempo-synced LFO's or envelopes can create lots of different characters. Using triangle or sine shapes (as long as there's no jump in value) will create a continuous morph Using saw, pulse or fast envelopes (as long as there's a fast change or jump in value) will create continuous morphs with sudden changes happening rhytmically. When using the same step values as those that have been set in the waveform creator "TheCreator", enables you to morph through the waveforms, following the wavetable generation settings.
Inlets
frac32.bipolar pitch
frac32buffer frequency
frac32buffer expFM
frac32buffer phase
frac32buffer sync
int32 waveform
frac32 mixSine
frac32 mix1
frac32 mix2
frac32 mix3
Outlets
frac32buffer.bipolar sine wave
int32 divide1
int32 divide2
int32 divide3
Parameters
frac32.s.map.pitch pitch
frac32.s.map.pitch LP
int32 octSine
int32 waveform
int32 step1
int32 quant1
int32 step2
int32 quant2
int32 step3
int32 quant3
frac32.u.map mixSine
frac32.u.map mix1
frac32.u.map mix2
frac32.u.map mix3
Attributes
objref table
uint32_t Phase;
int32_t mix[4];
int32_t ccomp;
int32_t read1;
int32_t read2;
int32_t P[6];
int i;
int Strig;
int32_t wave;
int32_t smooth;
int32_t mixSine;
int32_t F;
int32_t tableOsc(int32_t inst, int32_t Phs, int32_t preset1a, int32_t preset1b,
int32_t Mix, int32_t preset2) {
read1 = attr_table.array[(((Phs)&1023) + ((preset1a + preset2) << 10)) &
attr_table.LENGTHMASK];
read2 = attr_table.array[(((Phs)&1023) + ((preset1b + preset2) << 10)) &
attr_table.LENGTHMASK];
ccomp = (1 << 27) - Mix;
mix[inst] = ___SMMUL(ccomp << 3, read1 << 2) + ___SMMUL(Mix << 3, read2 << 2);
};
int32_t tablemix(int32_t inst, int32_t WaveA, int32_t WaveB, int32_t Mix) {
mix[inst] = ___SMMUL(((1 << 27) - Mix) << 3, WaveA << 2) +
___SMMUL(Mix << 3, WaveB << 2);
}
uint64_t MIX1;
uint64_t MIX2;
uint64_t MIX3;
int32_t MX(int32_t T) {
T = T > 0 ? T : -T;
T = T & ((1 << 28) - 1);
F = T > (1 << 27) ? (1 << 28) - T : T;
}Phase = 0;int16_t Preset = (param_waveform + inlet_waveform) & 1023;
int32_t f;
MTOF(param_LP, f)
MIX1 = param_mix1 + inlet_mix1;
MIX2 = param_mix2 + inlet_mix2;
MIX3 = param_mix3 + inlet_mix3;
MX(MIX1);
MIX1 = F;
MX(MIX2);
MIX2 = F;
MX(MIX3);
MIX3 = F;
P[0] = (MIX1 * param_quant1) >> 27;
MIX1 = (MIX1 - (P[0] << 27) / param_quant1) * param_quant1;
P[0] = P[0] * param_step1;
P[1] = P[0] + param_step1;
P[2] = (MIX2 * param_quant2) >> 27;
MIX2 = (MIX2 - (P[2] << 27) / param_quant2) * param_quant2;
P[2] = P[2] * param_step2;
P[3] = P[2] + param_step2;
P[4] = (MIX3 * param_quant3) >> 27;
MIX3 = (MIX3 - (P[4] << 27) / param_quant3) * param_quant3;
P[4] = P[4] * param_step3;
P[5] = P[4] + param_step3;
outlet_divide1 = param_quant1;
outlet_divide2 = param_quant2;
outlet_divide3 = param_quant3;int32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch + inlet_expFM, freq);
int32_t Freq = freq + ___SMMUL(inlet_linFM << 3, freq << 3);
if ((inlet_sync > 0) && !Strig) {
Phase = 0;
Strig = 1;
} else if (inlet_sync < 1) {
Strig = 0;
}
mixSine = mixSine + (((param_mixSine + inlet_mixSine) - mixSine) >> 8);
Phase += Freq;
int32_t r;
int32_t p2 = Phase + inlet_phase;
SINE2TINTERP((p2) << param_octSine, r)
int32_t phase = p2 >> 22;
tableOsc(0, phase, P[0], P[1], MIX1, P[2] + P[4] + Preset);
tableOsc(1, phase, P[0], P[1], MIX1, P[3] + P[4] + Preset);
tableOsc(2, phase, P[0], P[1], MIX1, P[2] + P[5] + Preset);
tableOsc(3, phase, P[0], P[1], MIX1, P[3] + P[5] + Preset);
tablemix(0, mix[0], mix[1], MIX2);
tablemix(1, mix[2], mix[3], MIX2);
tablemix(0, mix[0], mix[1], MIX3);
wave = (___SMMUL(mixSine << 3, mix[0] << 2) + ___SMMUL(r, (1 << 27) - mixSine))
<< 1;
smooth = __SMMLA((wave - smooth) << 1, f, smooth);
outlet_wave = smooth;
