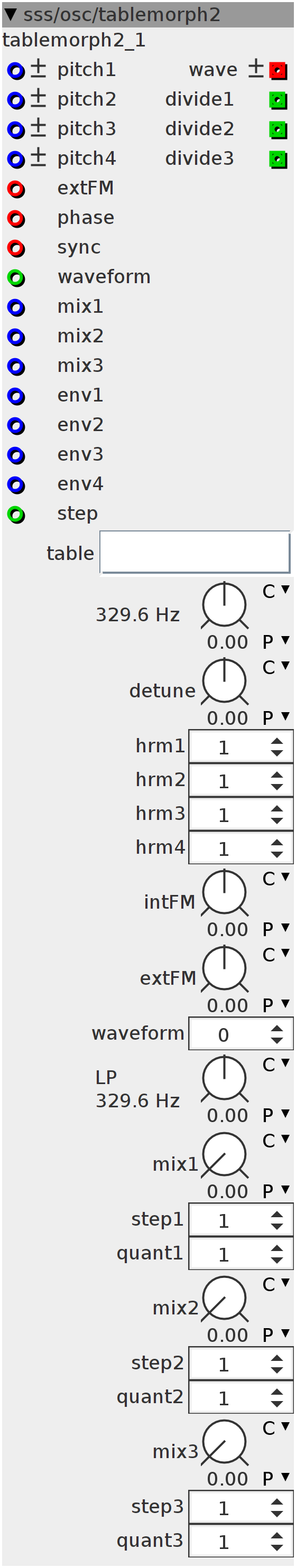

tablemorph2
DON'T FORGET TO CONNECT AN ENVELOPE OF VOLUME CONTROL TO THE "env1 to 4" INPUTS!! quad wavetable oscillator loads wavetables created with the "TheCreator" module. each oscillator can play at it's own harmonic based on it's own pitch. -quant controls how many waves will be morphed through using the corresponding mix-control -step controls the stepsize between each selected waveform, skipping others. Interesting combination is to -control mix1 with the envelope (quant1 set to 2) -control mix2 with a bit-fast LFO (quant set to around 4) -control mix2 with a very slow LFO this creates a nice morphing over several timing intervals: -with each hit, it morphs following the envelope, allowing the strike to have a distinct other character then the tail -the fast LFO morph changes the characteristics of the sound during the tail, making it "wobble" -the slow LFO morph slowely changes the whole character of the sound over time
Inlets
int32 waveform
int32 step
frac32 mix1
frac32 mix2
frac32 mix3
frac32 env1
frac32 env2
frac32 env3
frac32 env4
frac32.bipolar pitch
frac32.bipolar pitch2
frac32.bipolar pitch3
frac32.bipolar pitch4
frac32buffer frequency
frac32buffer phase
frac32buffer sync
Outlets
int32 divide1
int32 divide2
int32 divide3
frac32buffer.bipolar wave
Parameters
frac32.s.map.pitch root
frac32.s.map.pitch LP
frac32.s.map detune
frac32.s.map intFM
frac32.s.map extFM
int32 hrm1
int32 hrm2
int32 hrm3
int32 hrm4
int32 waveform
int32 step1
int32 quant1
int32 step2
int32 quant2
int32 step3
int32 quant3
frac32.u.map mix1
frac32.u.map mix2
frac32.u.map mix3
Attributes
objref table
uint32_t Phase[4];
int32_t mix[5];
int32_t ccomp;
int32_t read1;
int32_t read2;
int32_t P[6];
int i;
int Strig;
int32_t wave;
int32_t smooth;
int32_t F;
int32_t tableOsc(int32_t inst, int32_t Phs, int32_t preset1a, int32_t preset1b,
int32_t Mix, int32_t Preset2) {
read1 = attr_table.array[(((Phs)&1023) + ((preset1a + Preset2) << 10)) &
attr_table.LENGTHMASK];
read2 = attr_table.array[(((Phs)&1023) + ((preset1b + Preset2) << 10)) &
attr_table.LENGTHMASK];
ccomp = (1 << 27) - Mix;
mix[inst] = ___SMMUL(ccomp << 3, read1 << 2) + ___SMMUL(Mix << 3, read2 << 2);
};
int32_t tablemix(int32_t inst, int32_t WaveA, int32_t WaveB, int32_t Mix) {
mix[inst] = ___SMMUL(((1 << 27) - Mix) << 3, WaveA << 2) +
___SMMUL(Mix << 3, WaveB << 2);
}
uint64_t MIX1;
uint64_t MIX2;
uint64_t MIX3;
int32_t MX(int32_t T) {
T = T > 0 ? T : -T;
T = T & ((1 << 28) - 1);
F = T > (1 << 27) ? (1 << 28) - T : T;
}
int32_t freq[4];
int32_t Freq[4];
int32_t phase[4];for (i = 0; i < 4; i++) {
Phase[i] = 0;
}int32_t intFM = param_intFM;
intFM = intFM > 0 ? intFM : -intFM;
intFM = ___SMMUL(intFM << 3, param_intFM << 2);
int16_t Preset = (param_waveform + inlet_waveform) & 1023;
int32_t f;
MTOF(param_LP, f)
MTOFEXTENDED(param_root + inlet_pitch1 + (param_detune >> 8), freq[0]);
MTOFEXTENDED(param_root + inlet_pitch2 + (param_detune >> 7), freq[1]);
MTOFEXTENDED(param_root + inlet_pitch3 + (param_detune >> 8) * 3, freq[2]);
MTOFEXTENDED(param_root + inlet_pitch4 + (param_detune >> 6), freq[3]);
freq[0] = freq[0] * param_hrm1;
freq[1] = freq[1] * param_hrm2;
freq[2] = freq[2] * param_hrm3;
freq[3] = freq[3] * param_hrm4;
MIX1 = param_mix1 + inlet_mix1;
MIX2 = param_mix2 + inlet_mix2;
MIX3 = param_mix3 + inlet_mix3;
MX(MIX1);
MIX1 = F;
MX(MIX2);
MIX2 = F;
MX(MIX3);
MIX3 = F;
P[0] = ((((MIX1 * param_quant1) >> 27) + 1) >> 1) << 1;
P[1] = (((MIX1 * param_quant1) >> 28) << 1) + 1;
MIX1 = (MIX1 - (((MIX1 * param_quant1) >> 28) << 28) / param_quant1) *
param_quant1;
MIX1 = MIX1 > (1 << 27) ? ((2 << 27) - MIX1) : MIX1;
P[0] = P[0] * (param_step1 + inlet_step);
P[1] = P[1] * (param_step1 + inlet_step);
P[2] = ((((MIX2 * param_quant2) >> 27) + 1) >> 1) << 1;
P[3] = (((MIX2 * param_quant2) >> 28) << 1) + 1;
MIX2 = (MIX2 - (((MIX2 * param_quant2) >> 28) << 28) / param_quant2) *
param_quant2;
MIX2 = MIX2 > (1 << 27) ? ((2 << 27) - MIX2) : MIX2;
P[2] = P[2] * (param_step2 + inlet_step);
P[3] = P[3] * (param_step2 + inlet_step);
P[4] = ((((MIX3 * param_quant3) >> 27) + 1) >> 1) << 1;
P[5] = (((MIX3 * param_quant3) >> 28) << 1) + 1;
MIX3 = (MIX3 - (((MIX3 * param_quant3) >> 28) << 28) / param_quant3) *
param_quant3;
MIX3 = MIX3 > (1 << 27) ? ((2 << 27) - MIX3) : MIX3;
P[4] = P[4] * (param_step3 + inlet_step);
P[5] = P[5] * (param_step3 + inlet_step);
outlet_divide1 = param_quant1;
outlet_divide2 = param_quant2;
outlet_divide3 = param_quant3;if ((inlet_sync > 0) && !Strig) {
for (i = 0; i < 4; i++) {
Phase[i] = 0;
}
Strig = 1;
} else if (inlet_sync < 1) {
Strig = 0;
}
int32_t sum;
for (i = 0; i < 4; i++) {
Freq[i] = freq[i] + ___SMMUL((___SMMUL((mix[(i - 1) & 3]) << 3, intFM << 4) +
___SMMUL(inlet_extFM << 3, param_extFM << 4))
<< 3,
freq[i] << 2);
Phase[i] += Freq[i];
phase[i] = (Phase[i] + (inlet_phase << 4)) >> 22;
}
tableOsc(0, phase[0], P[0], P[1], MIX1, P[2] + P[4] + Preset);
tableOsc(1, phase[1], P[0], P[1], MIX1, P[3] + P[4] + Preset);
tableOsc(2, phase[2], P[0], P[1], MIX1, P[2] + P[5] + Preset);
tableOsc(3, phase[3], P[0], P[1], MIX1, P[3] + P[5] + Preset);
mix[0] = ___SMMUL(mix[0] << 3, inlet_env1 << 2);
mix[1] = ___SMMUL(mix[1] << 3, inlet_env2 << 2);
mix[2] = ___SMMUL(mix[2] << 3, inlet_env3 << 2);
mix[3] = ___SMMUL(mix[3] << 3, inlet_env4 << 2);
tablemix(0, mix[0], mix[1], MIX2);
tablemix(1, mix[2], mix[3], MIX2);
tablemix(4, mix[0], mix[1], MIX3);
smooth = __SMMLA((mix[4] - smooth) << 1, f, smooth);
outlet_wave = smooth;
