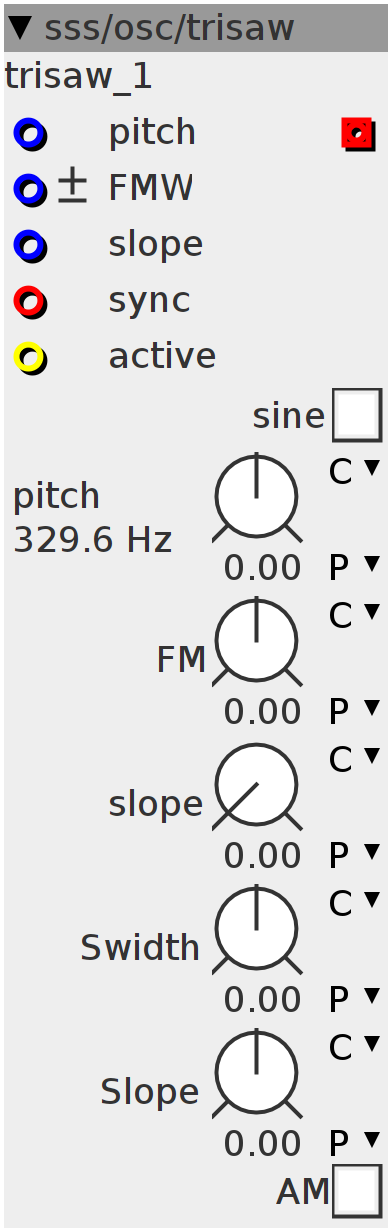

trisaw
tri/saw oscillator with optional sine shaper, sync and AM modulation
Inlets
frac32buffer sync
bool32 active
frac32 pitch
frac32 slope
frac32.bipolar FMW
Outlets
frac32buffer out
Parameters
frac32.s.map.pitch pitch
frac32.s.map FM
frac32.s.map Swidth
frac32.s.map Slope
frac32.u.map slope
bool32.tgl sine
bool32.tgl AM
uint32_t Phase;
float32_t slope1n;
uint64_t slope1d;
uint64_t slope1e;
int32_t out;
int32_t sine;
int32_t Slope;
int32_t Fmw;
int32_t FMW;
int ttrig;
int32_t freq;
int32_t fmw;if (inlet_active > 0) {
MTOF(param_pitch + inlet_pitch, freq)
fmw = __SSAT(param_FM + inlet_FMW, 29);
}if (inlet_active > 0) {
if ((inlet_sync > 0) && (!(ttrig == 1))) {
ttrig = 1;
Phase = 0;
} else if (inlet_sync < 0) {
ttrig = 0;
}
int32_t slape =
__SSAT(param_slope + ___SMMUL((inlet_slope) << 3, param_Swidth << 2) +
___SMMUL(inlet_sync << 3, param_Slope << 2),
28);
Slope = Slope + ((slape - Slope) >> 8);
Fmw = Fmw + ((fmw - Fmw) >> 6);
FMW = ___SMMUL(inlet_sync << 4, (Fmw) << 2);
Phase += freq + ___SMMUL(FMW << 4, freq << 4);
slope1d = (1 << 27) - Slope;
if (Phase < (Slope << 5)) {
slope1n = ((float)((1 << 31))) / ((float)(Slope));
out = ((Phase >> 5) * slope1n) + (1 << 30);
} else {
slope1n = ((float)((1 << 31))) / ((float)(slope1d));
out = -(((Phase - (Slope << 5)) >> 5) * slope1n) - (1 << 30);
}
if (param_sine > 0) {
SINE2TINTERP(out, sine)
} else {
sine = out << 1;
}
outlet_out =
___SMMUL(sine, ((param_AM < 1 ? (1 << 28) : 0) +
___SMMUL(inlet_sync << 3, param_AM > 0 ? (1 << 30) : 0)));
}
