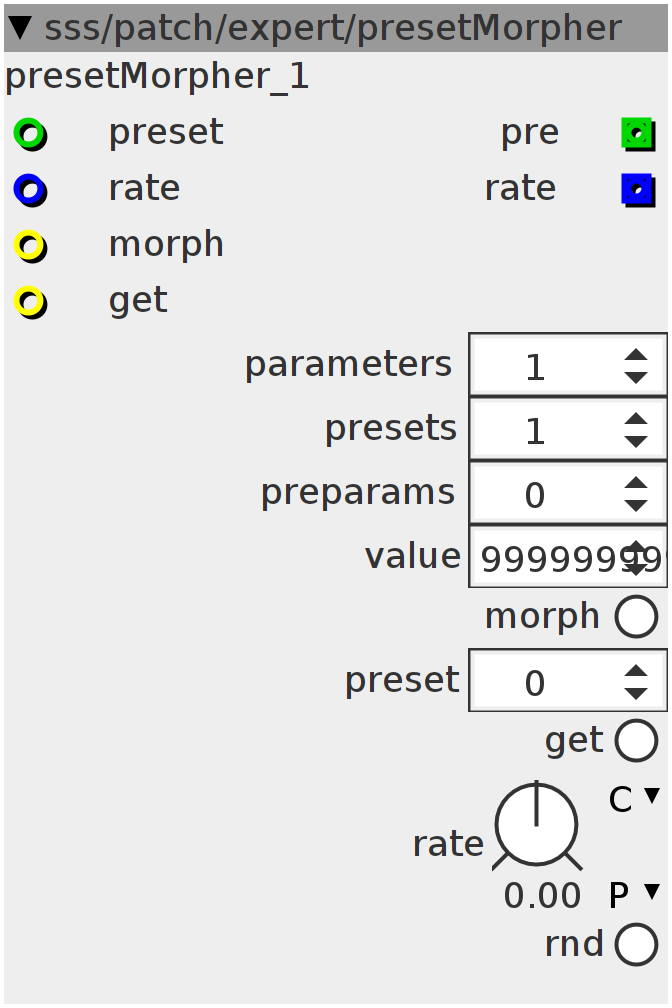

presetMorpher
EXPERT MODULE, be warned, this one could screw up your patch! Save your patch before use! Also, with next axoloti-update, it might not work anymore! This module is able to get the values from the parameters of other modules (coming after&below this module) and save them as a preset (pressing the "get" parameter/input). Attributes: Set the amount of parameters to be saved using the "parameters" attribute (count all parameters between this module and the last parameter you want to be able to save). Set the amount of available presets using the "presets" attribute Use the "preparams" attribute to skip the first row of parameters, if there's anything in-between. "value" selector..... forget it, not there for you, but somehow I needed it for the "first" parameter where the parameter-count starts.. Params/Saving/Morphing Before you're able to morph, you first need to create a nice preset, select a preset-number and then hit "get". After you've made multiple presets, you're able to smoothly morph between them. Be warned though, morphing to an empty preset can go to extreme random values beyond the limits of the parameters!!!! You can morph through the presets manually, using the on-module parameters or control it externally (eg. over midi-> gate=morph, note=preset, velocity/touch=rate. I used a toggleswitch-controlled "demux" to switch between "get" input and "morph" input)
Inlets
frac32 rate
bool32 morph
bool32 get
int32 preset
Outlets
int32 pre
frac32 rate
Parameters
int32.mini value
bool32.mom morph
bool32.mom get
bool32.mom rnd
int32 preset
frac32.s.map rate
Attributes
spinner parameters
spinner presets
spinner preparams
bool get;
static const uint32_t params = attr_parameters;
static const uint32_t presets = attr_presets;
static const uint32_t LENGTH = params * presets;
int32_t *pst;
int i;
int j;
bool A;
bool rnd;
int32_t TP[params];
bool pv;
int P;
int16_t pre;
bool DO;static int32_t _array[LENGTH] __attribute__((section(".sdram")));
pst = &_array[0];
pre = 0;
DO = 1;if (DO) {
while (!(parent->PExch[pre].value == param_value)) {
pre += 1;
}
pre += 6;
DO = 0;
}
if (param_preset >= presets) {
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_preset],
presets - 1, 0xFFFD);
}
P = param_preset + inlet_preset;
P = P - P / presets * presets;
P = (P < 0 ? P + presets : P) * params;
int32_t rate;
MTOF(__SSAT((-1 << 27) + (inlet_rate << 1), 29), rate)
rate = rate >> 2;
A = param_morph || inlet_morph;
bool GET = param_get || inlet_get;
if ((GET > 0) && !get) {
get = 1;
for (i = 0; i < params; i++) {
pst[P + i] = parent->PExch[i + pre].value;
}
} else if (GET == 0) {
get = 0;
}
if (A > 0) {
for (j = 0; j < params; j++) {
if (!(pst[P + j] == parent->PExch[j + pre].value)) {
if (!(pv == A)) {
TP[j] = (pst[P + j]) - (parent->PExch[j + pre].value);
}
int32_t Tm = ___SMMUL(TP[j], rate);
Tm = Tm == 0 ? TP[j] > 0 ? 1 : -1 : Tm;
int32_t tmp = Tm + parent->PExch[j + pre].value;
if (TP[j] > 0) {
tmp = tmp > pst[P + j] ? pst[P + j] : tmp;
} else {
tmp = tmp < pst[P + j] ? pst[P + j] : tmp;
}
PExParameterChange(
&parent->PExch[PARAM_INDEX_attr_legal_name_value + j + 6], tmp,
0xFFFD);
}
}
}
if ((param_rnd > 0) && !rnd) {
rnd = 1;
for (j = 0; j < params; j++) {
for (i = 0; i < presets; i++) {
pst[i * params + j] = (int32_t)GenerateRandomNumber() >> 4;
}
}
} else if (param_rnd == 0) {
rnd = 0;
}
outlet_pre = pre;
pv = A;
