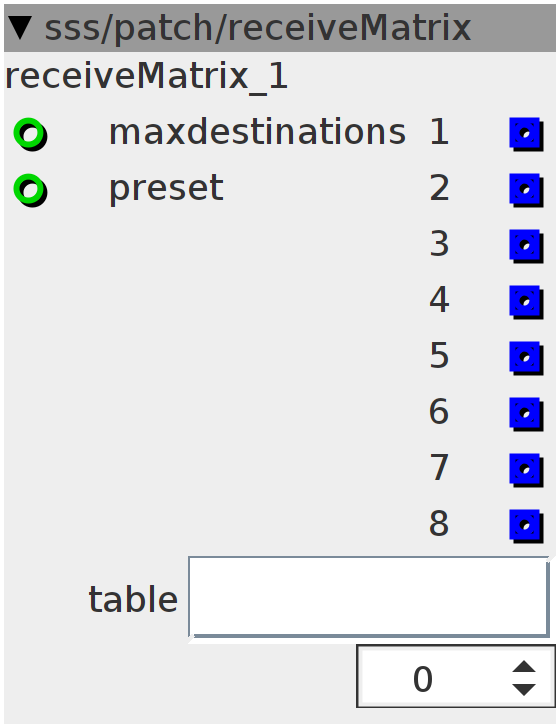

receiveMatrix
receiver (of send module) reads 8 positions from a table has "instance" control to be able to add more receivers maxdestinations inlet should be connected to the same inlet as on the send module preset inlet should be connected to the same inlet as on the send module
Inlets
int32 maxdestinations
int32 preset
Outlets
frac32 table[a]
frac32 2
frac32 3
frac32 4
frac32 5
frac32 6
frac32 7
frac32 8
Parameters
int32 instance
Attributes
objref table
int32_t instance;
int32_t preset;instance = param_instance * 8;
preset = inlet_preset * 8 * inlet_maxdestinations;
outlet_1 = attr_table.array[__USAT(instance + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_2 = attr_table.array[__USAT(instance + 1 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_3 = attr_table.array[__USAT(instance + 2 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_4 = attr_table.array[__USAT(instance + 3 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_5 = attr_table.array[__USAT(instance + 4 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_6 = attr_table.array[__USAT(instance + 5 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_7 = attr_table.array[__USAT(instance + 6 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
outlet_8 = attr_table.array[__USAT(instance + 7 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
