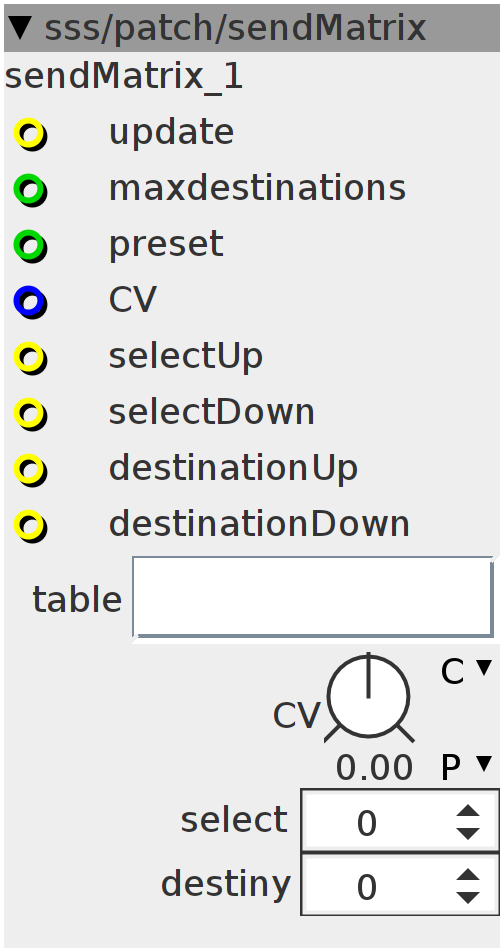

sendMatrix
control send module, fractional type to be used with my receive module and a 32b (sd)ram module (enter it's name in the box!) you can use the internal knob and control it by midi-CC or connect an external signal to the CV inlet (eg analogue controls). These last ones will update the internal CV knob like the "hook" control module. The "select" selector selects which output of the receiving module will be controlled The "destiny" selector selects which receiver is being controlled. These controls can be controlled externally by (analogue) button-presses to step through the menu. extra inlets: "update" updates the knob to the table value. eg when you load a new table (double trigger/press is needed though!) "maxdestinations" should be the same as the amount of receiving modules you are using. The less receiving modules, the more presets you can make. "preset" shifts the table-write/readout to select a new part to save/load presets.
Inlets
bool32 update
bool32 selectUp
bool32 selectDown
bool32 destinationUp
bool32 destinationDown
int32 maxdestinations
int32 preset
frac32 CV
Outlets
None
Parameters
frac32.s.map CV
int32 select
int32 destiny
Attributes
objref table
int32_t nhooked;
int32_t param_cache;
int32_t CV;
int32_t prevsel;
int32_t select;
uint32_t count;
int32_t selact;
int32_t destiny;
int32_t destyny;
int32_t prevCV;
int utrig;
int ytrig;
int32_t preset;
int sUtrig;
int sDtrig;
int dUtrig;
int dDtrig;utrig = 0;
nhooked = 4;if (nhooked) {
CV = param_CV;
if (param_CV > inlet_CV) {
nhooked |= 1;
if (nhooked == 7) {
nhooked = 0;
param_cache = param_CV;
}
} else {
nhooked |= 2;
if (nhooked == 7) {
nhooked = 0;
param_cache = param_CV;
}
}
} else {
CV = inlet_CV;
if (param_cache != param_CV)
nhooked = 4;
else
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_CV], inlet_CV,
0xFFFD);
param_cache = inlet_CV;
}
if ((inlet_selectUp > 0) && (!(sUtrig == 1))) {
sUtrig = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_select],
(selact + 1) & 7, 0xFFFD);
} else if (!(inlet_selectUp > 0)) {
sUtrig = 0;
}
if ((inlet_selectDown > 0) && (!(sDtrig == 1))) {
sDtrig = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_select],
(selact - 1) & 7, 0xFFFD);
} else if (!(inlet_selectDown > 0)) {
sDtrig = 0;
}
if ((inlet_destinationUp > 0) && (!(dUtrig == 1))) {
dUtrig = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_destiny],
(destiny + 1) - ((destiny + 1) / inlet_maxdestinations) *
inlet_maxdestinations,
0xFFFD);
} else if (!(inlet_destinationUp > 0)) {
dUtrig = 0;
}
if ((inlet_destinationDown > 0) && (!(dDtrig == 1))) {
dDtrig = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_destiny],
(destiny - 1) - ((destiny - 1) / inlet_maxdestinations) *
inlet_maxdestinations,
0xFFFD);
} else if (!(inlet_destinationDown > 0)) {
dDtrig = 0;
}
preset = inlet_preset * 8 * inlet_maxdestinations;
destyny = param_destiny > inlet_maxdestinations ? inlet_maxdestinations
: param_destiny;
destyny = destyny * 8;
if ((!(param_select + param_destiny == prevsel)) ||
((inlet_update > 0) && (!(utrig == 1)))) {
utrig = 1;
switch (param_select > 0 ? param_select : 0) {
case 0:
select = attr_table.array[__USAT(destyny + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
break;
case 1:
select =
attr_table.array[__USAT(destyny + 1 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
break;
case 2:
select =
attr_table.array[__USAT(destyny + 2 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
break;
case 3:
select =
attr_table.array[__USAT(destyny + 3 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
break;
case 4:
select =
attr_table.array[__USAT(destyny + 4 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
break;
case 5:
select =
attr_table.array[__USAT(destyny + 5 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
break;
case 6:
select =
attr_table.array[__USAT(destyny + 6 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
break;
case 7:
select =
attr_table.array[__USAT(destyny + 7 + preset, attr_table.LENGTHPOW)]
<< attr_table.GAIN;
break;
}
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_CV], select,
0xFFFD);
}
if (!(prevCV == CV)) {
switch (param_select > 0 ? param_select : 0) {
case 0:
attr_table.array[destyny + preset] = __SSAT(CV, 28) >> attr_table.GAIN;
break;
case 1:
attr_table.array[destyny + 1 + preset] = __SSAT(CV, 28) >> attr_table.GAIN;
break;
case 2:
attr_table.array[destyny + 2 + preset] = __SSAT(CV, 28) >> attr_table.GAIN;
break;
case 3:
attr_table.array[destyny + 3 + preset] = __SSAT(CV, 28) >> attr_table.GAIN;
break;
case 4:
attr_table.array[destyny + 4 + preset] = __SSAT(CV, 28) >> attr_table.GAIN;
break;
case 5:
attr_table.array[destyny + 5 + preset] = __SSAT(CV, 28) >> attr_table.GAIN;
break;
case 6:
attr_table.array[destyny + 6 + preset] = __SSAT(CV, 28) >> attr_table.GAIN;
break;
case 7:
attr_table.array[destyny + 7 + preset] = __SSAT(CV, 28) >> attr_table.GAIN;
break;
}
}
if (!(inlet_update > 0)) {
utrig = 0;
}
prevsel = param_select + param_destiny;
prevCV = CV;
selact = param_select;
destiny = param_destiny;
