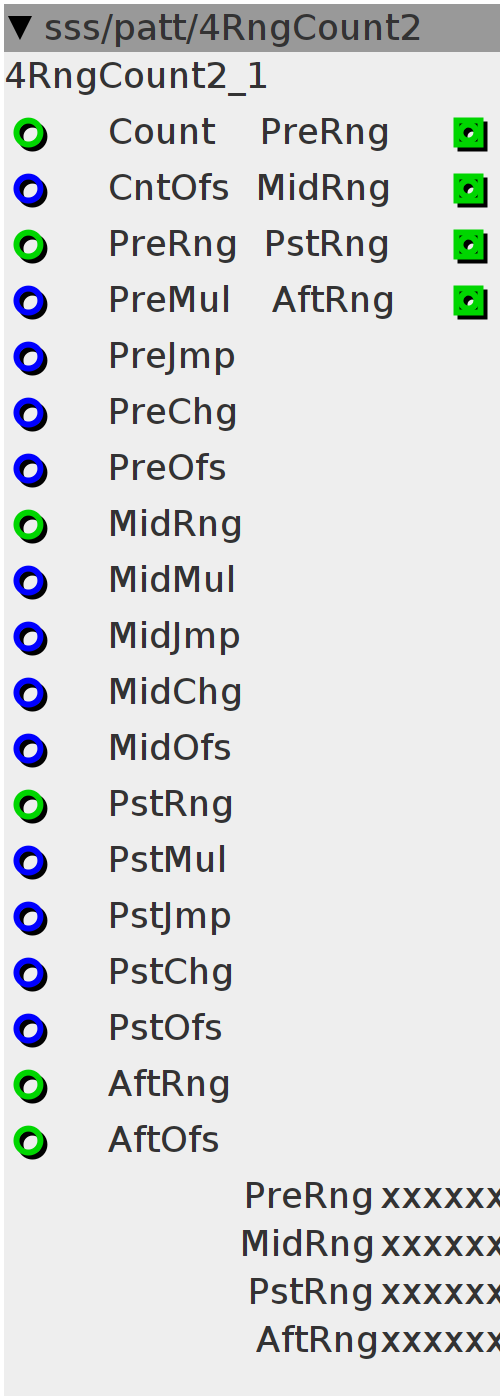

4RngCount2
quad range counter (divremc with internal level manipulation)
Inlets
int32 Count Input
int32 denominator
int32 MidRng
int32 PstRng
int32 AftRng
int32 AftOfs
frac32 Count Offset
frac32 PreMul
frac32 PreJmp
frac32 PreChg
frac32 PreOfs
frac32 MidMul
frac32 MidJmp
frac32 MidChg
frac32 MidOfs
frac32 PstMul
frac32 PstJmp
frac32 PstChg
frac32 PstOfs
Outlets
int32 PreRng
int32 MidRng
int32 PstRng
int32 AftRng
Displays
int32.label PreRng
int32.label MidRng
int32.label PstRng
int32.label AftRng
int32_t ptrig;
int32_t pval;ptrig = 0;
pval = 0;int r;
int s;
int t;
int u;
int a;
int b;
int c;
int d;
int e;
int f;
int g;
int h;
int i;
int j;
int k;
int l;
int m;
int n;
int32_t coun0;
coun0 = inlet_Count + inlet_CntOfs;
if (coun0 >= 0)
r = ((unsigned int)coun0) / inlet_PreRng;
else
r = -(((unsigned int)(inlet_PreRng - coun0)) / inlet_PreRng);
a = coun0 - (r * inlet_PreRng);
c = inlet_MidRng << 2;
b = a * ___SMMUL((inlet_PreMul) << 3, c) + r * ___SMMUL(inlet_PreJmp << 3, c) +
r * a * ___SMMUL(inlet_PreChg << 3, c) + inlet_PreOfs;
if (b >= 0)
s = ((unsigned int)b) / inlet_MidRng;
else
s = -(((unsigned int)(inlet_MidRng - b)) / inlet_MidRng);
d = b - (s * inlet_MidRng);
f = inlet_PstRng << 2;
e = d * ___SMMUL((inlet_MidMul) << 3, f) + s * ___SMMUL(inlet_MidJmp << 3, f) +
s * d * ___SMMUL(inlet_MidChg << 3, f) + inlet_MidOfs;
if (e >= 0)
t = ((unsigned int)e) / inlet_PstRng;
else
t = -(((unsigned int)(inlet_PstRng - e)) / inlet_PstRng);
g = e - (t * inlet_PstRng);
h = inlet_PstRng << 2;
i = g * ___SMMUL((inlet_PstMul) << 3, h) + t * ___SMMUL(inlet_PstJmp << 3, h) +
t * g * ___SMMUL(inlet_PstChg << 3, h) + inlet_PstOfs;
if (i >= 0)
u = ((unsigned int)i) / inlet_AftRng;
else
u = -(((unsigned int)(inlet_AftRng - i)) / inlet_AftRng);
j = i - (u * inlet_AftRng) + inlet_AftOfs;
outlet_AftRng = j;
outlet_PstRng = g;
outlet_MidRng = d;
outlet_PreRng = a;
disp_AftRng = j;
disp_PstRng = g;
disp_MidRng = d;
disp_PreRng = a;
