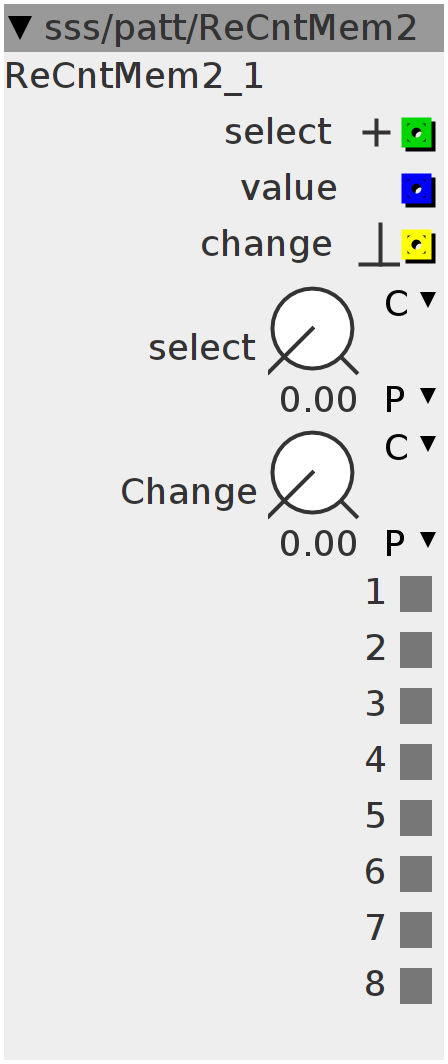

ReCntMem2
parameter memory for the recount module
Inlets
None
Outlets
frac32 value
bool32.pulse change
int32.positive output
Parameters
frac32.u.map select
frac32.u.map Change
Displays
bool32 1
bool32 2
bool32 3
bool32 4
bool32 5
bool32 6
bool32 7
bool32 8
int ptrig;
int32_t pval;ptrig = 0;
pval = 0;int r = (param_select / 8) >> 21;
outlet_select = r;
outlet_value = param_Change;
if ((pval != param_Change) & (!ptrig)) {
outlet_change = 1;
pval = param_Change;
ptrig = 1;
} else {
ptrig = 0;
outlet_change = 0;
}
disp_1 = (r == 0) ? 1 : 0;
disp_2 = (r == 1) ? 1 : 0;
disp_3 = (r == 2) ? 1 : 0;
disp_4 = (r == 3) ? 1 : 0;
disp_5 = (r == 4) ? 1 : 0;
disp_6 = (r == 5) ? 1 : 0;
disp_7 = (r == 6) ? 1 : 0;
disp_8 = (r == 7) ? 1 : 0;
