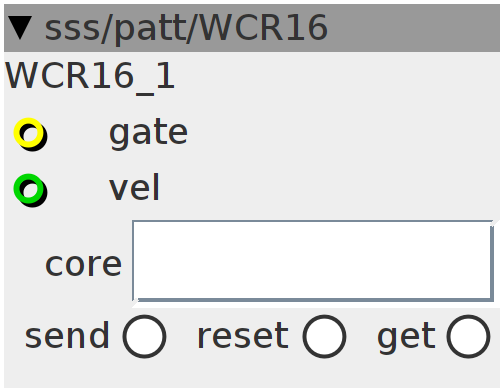

WCR16
Records the weights for each three-note-follow-up and copies it into the internal array of the "WCG16 module" when you hit "send". vel-input expects a value between 0 and 15, so when, for example, recording velocity, divide it by 4. the vel-input will also be clipped between 0 and 15, so higher/lower values will result in 0 or 15 Connect a midi module note and gate outputs to the note and gate inputs and play a melody. Make sure your last played note makes a connection back to another note played before. When the WCG12/WCG16 hangs on a certain note, this can be altered by playing this note twice on the keyboard, followed up by another note. Press "send" to send the recorded chance-table to the WCG12/WCG16. Press "reset" to reset the recorded table to start a new recording. Press "get" to get the chancetable from the WCG12/16 "core" module so you can alter it. (this way you can alter old recordings "on the fly" while live without losing the original saved settings.)
Inlets
bool32 gate
int32 vel
Outlets
None
Parameters
bool32.mom send
bool32.mom reset
bool32.mom get
Attributes
objref core
Declaration
static const uint32_t LENGTH = 4096;
int32_t prev;
int32_t PREV;
int i;
int gtrig;
int16_t *array;
int j;
int ctrig;
int rtrig;
int GET;
int Gtrig;
Init
static int16_t _array[LENGTH] __attribute__((section(".sdram")));
array = &_array[0];
for (i = 0; i < LENGTH; i++) {
array[i] = 0;
}
int prev = 0;
int PREV = 0;
Control Rate
if ((param_reset > 0) && !rtrig) {
rtrig = 1;
GET = 0;
for (i = 0; i < LENGTH; i++) {
array[i] = 0;
}
} else if (param_reset == 0) {
rtrig = 0;
}
if ((param_get > 0) && !Gtrig) {
Gtrig = 1;
for (i = 0; i < 256; i++) {
for (j = 0; j < 16; j++) {
array[i * 16 + j] = attr_core.array[i * 16 + j];
if (j > 0) {
array[i * 16 + j] -= attr_core.array[i * 16 + j - 1];
}
}
}
} else if (param_get == 0) {
Gtrig = 0;
}
if ((inlet_gate > 0) && !gtrig) {
gtrig = 1;
int32_t NOTE = inlet_vel;
NOTE = NOTE > 15 ? 15 : NOTE;
NOTE = NOTE < 0 ? 0 : NOTE;
if (GET == 0) {
PREV = prev = NOTE;
}
array[PREV + prev + NOTE] += 1;
PREV = prev * 16;
prev = NOTE * 16;
GET = 1;
} else if (inlet_gate == 0) {
gtrig = 0;
}
if ((param_send > 0) && !ctrig) {
ctrig = 1;
for (i = 0; i < 256; i++) {
for (j = 0; j < 16; j++) {
attr_core.array[i * 16 + j] = array[i * 16 + j];
if (j > 0) {
attr_core.array[i * 16 + j] += attr_core.array[i * 16 + j - 1];
}
}
}
} else if (param_send == 0) {
ctrig = 0;
}
