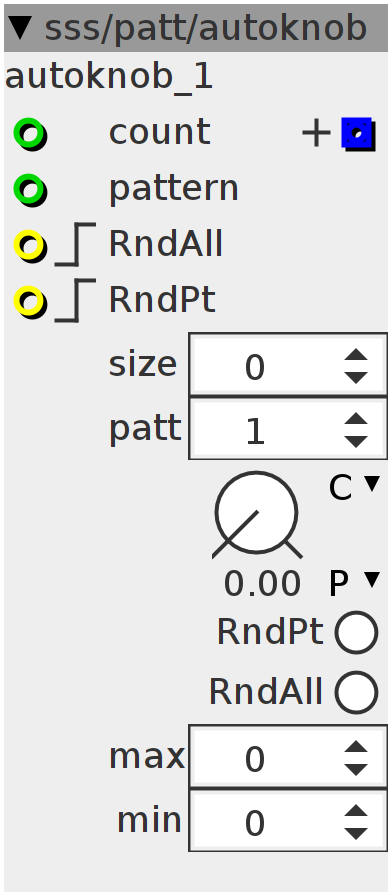

autoknob
knob with an inbuild (randomisable) automator and pattern selector for live use. Doesn't save it's patterns! Pattern size and amount of patterns can be set using the attributes. you can randomise just the selected pattern or all patterns at the same time. Use the max/min knobs to set your desired output scaling
Inlets
int32 count
int32 pattern
bool32.rising RndAll
bool32.rising RndPt
Outlets
frac32.positive output
Parameters
bool32.mom RndPt
bool32.mom RndAll
int32 max
int32 min
frac32.u.map value
Attributes
spinner size
spinner patt
static const int32_t LENGTH = (attr_size * attr_patt);
int32_t LENGTHMASK = attr_size;
int32_t *array;
int32_t prev;
int32_t prav;
int atrig;
int rtrig;
int i;
int32_t out;static int32_t _array[LENGTH] __attribute__((section(".sdram")));
array = &_array[0];int32_t pattern =
(inlet_pattern - (inlet_pattern / attr_patt) * attr_patt) * attr_size;
int32_t count =
(inlet_count - (inlet_count / LENGTHMASK) * LENGTHMASK) + pattern;
if (!(count == prav)) {
if (!(param_value == array[prav])) {
array[count] = __USAT(param_value, 27);
} else {
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_value],
array[count], 0xFFFD);
}
out = array[count];
}
prav = count;
if (!(param_value == array[prav])) {
array[count] = __USAT(param_value, 27);
}
outlet_out = out;
if ((param_RndAll || inlet_RndAll) && !atrig) {
atrig = 1;
int32_t diff = (param_max - param_min) << 21;
for (i = 0; i < LENGTH; i++)
array[i] = ___SMMUL(((uint32_t)(GenerateRandomNumber() >> 1)), diff << 1) +
(param_min << 21);
} else if ((param_RndAll || inlet_RndAll) == 0) {
atrig = 0;
}
if ((param_RndPt || inlet_RndPt) && !rtrig) {
rtrig = 1;
int32_t diff = (param_max - param_min) << 21;
for (i = 0; i < LENGTHMASK; i++)
array[i + pattern] =
___SMMUL(((uint32_t)(GenerateRandomNumber() >> 1)), diff << 1) +
(param_min << 21);
} else if ((param_RndPt || inlet_RndPt) == 0) {
rtrig = 0;
}
