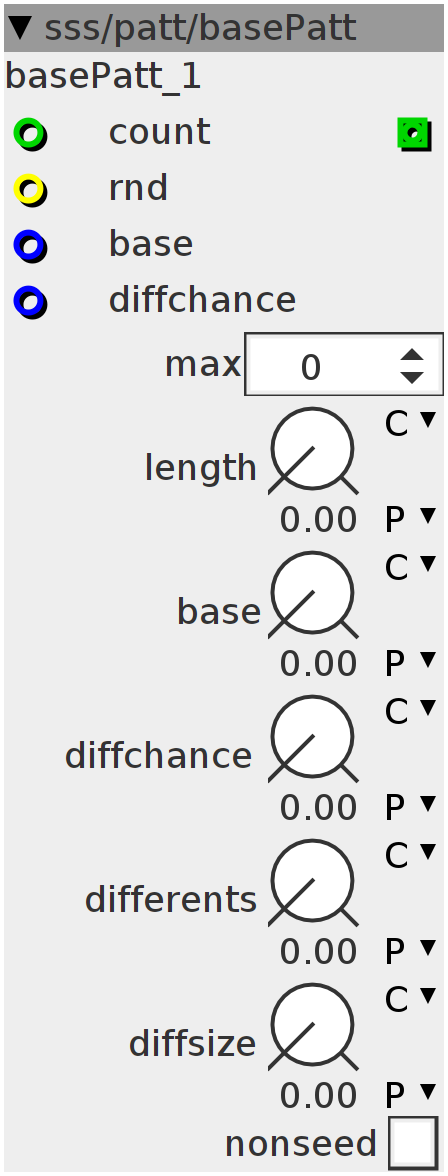

basePatt

Pattern generator that normally outputs the "base" value and having a chance that it's randomly changed. This can be either as a random-pattern (count input) or ongoing randomly generated. Amount of different random values can be set as well as a difference size (offset from base). Checking the "nonseed" box will use non-repeating random values instead the randomised pattern, basically setting the "differents" to unlimited.
Author: Remco van der Most
License: BSD
Github: sss/patt/basePatt.axo

Inlets

bool32 rnd

frac32 base

frac32 diffchance

int32 count

Outlets

int32 index

Parameters

frac32.u.map length

frac32.u.map base

frac32.u.map diffchance

frac32.u.map differents

frac32.u.map diffsize

bool32.tgl nonseed

Attributes

spinner max

Declaration
static const uint32_t LENGTHPOW = (6);
static const uint32_t LENGTH = (1 << 6);
static const uint32_t LENGTHMASK = ((1 << 6) - 1);
static const uint32_t BITS = 8;
static const uint32_t GAIN = 20;
int sz = attr_max + 1;
uint8_t *a1, *a2;
uint16_t *a3;
int val, i, pos, prv;
bool rnd;
Init
static uint8_t _a1[LENGTH] __attribute__((section(".sdram")));
a1 = &_a1[0];
static uint8_t _a2[LENGTH] __attribute__((section(".sdram")));
a2 = &_a2[0];
static uint16_t _a3[LENGTH] __attribute__((section(".sdram")));
a3 = &_a3[0];
{
  int i;
  for (i = 0; i < LENGTH; i++) {
    a1[i] = (uint8_t)GenerateRandomNumber();
    a2[i] = (uint8_t)GenerateRandomNumber();
    a3[i] = (uint16_t)GenerateRandomNumber();
  }
}
Control Rate
if ((inlet_rnd > 0) && !rnd) {
  rnd = 1;
  for (i = 0; i < LENGTH; i++) {
    a1[i] = (uint8_t)GenerateRandomNumber();
    a2[i] = (uint8_t)GenerateRandomNumber();
    a3[i] = (uint16_t)GenerateRandomNumber();
  }
} else if (inlet_rnd < 1) {
  rnd = 0;
}

if (!(inlet_count == prv)) {
  int length = param_length >> 21;
  length = length > 0 ? length : 1;
  int cnt = inlet_count;
  cnt = cnt - cnt / length * length;
  cnt += cnt < 0 ? length : 0;
  cnt = cnt & 63;
  int base = ___SMMUL(__USAT(param_base + inlet_base, 27) << 4, sz - 1 << 1);
  val = base;

  if ((param_nonseed < 1 ? a2[cnt] : (uint8_t)(GenerateRandomNumber())) <
      (__USAT(param_diffchance + inlet_diffchance, 27) >> 19)) {
    val += ___SMMUL(___SMMUL((int32_t)a3[___SMMUL(
                                 (param_nonseed < 1
                                      ? a1[cnt]
                                      : (uint8_t)(GenerateRandomNumber()) << 1),
                                 param_differents << 2)]
                                 << 13,
                             param_diffsize)
                        << 5,
                    sz << 2) +
           1;
  }
  val = val - val / sz * sz;
  val += (val < 0 ? sz : 0);
}
outlet_index = val;
prv = inlet_count;
